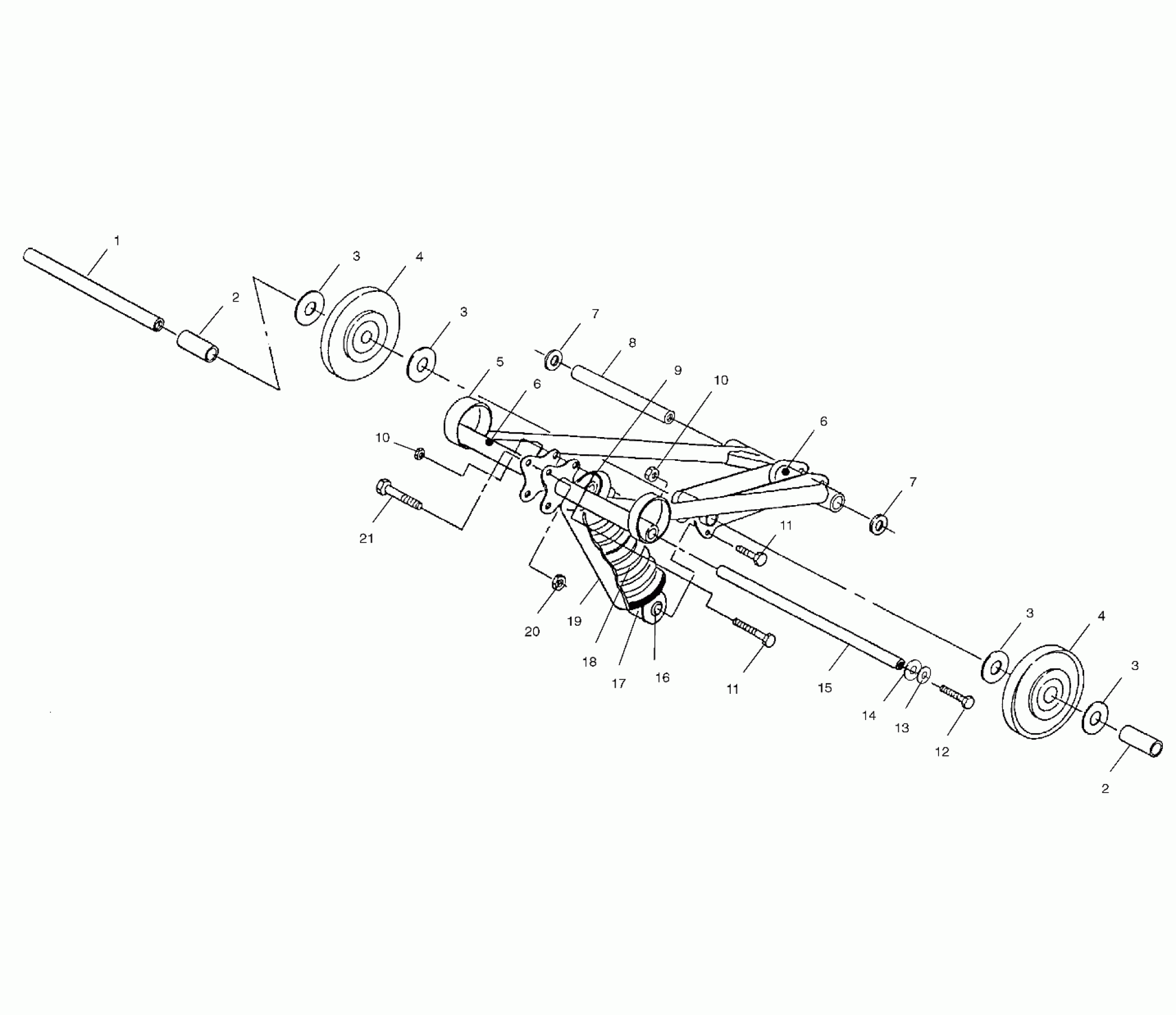

Polaris WIDETRAK LX - S02SU4BS FRONT TORQUE ARM - S02SU4BS/BE (4968476847B03) Diagram

#

Description
Price

1

SHAFT, SPANNER

5020720

$34.99

2

SPACER

5333012

$12.99

2

SPACER

5333012

$12.99

3

Bushing

7556301

$3.19

3

Bushing

7556301

$3.19

3

Bushing

7556301

$3.19

3

Bushing

7556301

$3.19

4

Asm., Bogie Wheel

1543018

$56.65

4

Asm., Bogie Wheel

1543018

$56.65

5

Arm, Torque, Front

1541044-067

Unavailable

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

WASHER, FLAT

7555823

$3.99

7

WASHER, FLAT

7555823

$3.99

8

SHAFT, PIVOT

5132239

$74.99

9

Retainer, Spring, Slotted

5630580

Unavailable

10

Nut, FLEXLOC

7542411

$3.19

10

Nut, FLEXLOC

7542411

$3.19

11

Screw

7515433

$1.59

11

Screw

7515433

$1.59

12

Screw

7517435

$14.99

13

Washer, Spring Lock

7552603

$1.49

14

Washer, Flat

7555893

$1.49

15

Shaft, Mounting

5020909

$35.99

16

SHOCK, SUSPENSION, CENTER

7041742

$214.99

17

Retainer, Spring

5245067-067

Unavailable

18

Spring, Front Track

7041712-067

$52.60

19

SHIELD, SPRING

5430671

$24.27

20

Nut, Nylok

7542439

$1.49

21

Screw

7515438

$4.79
