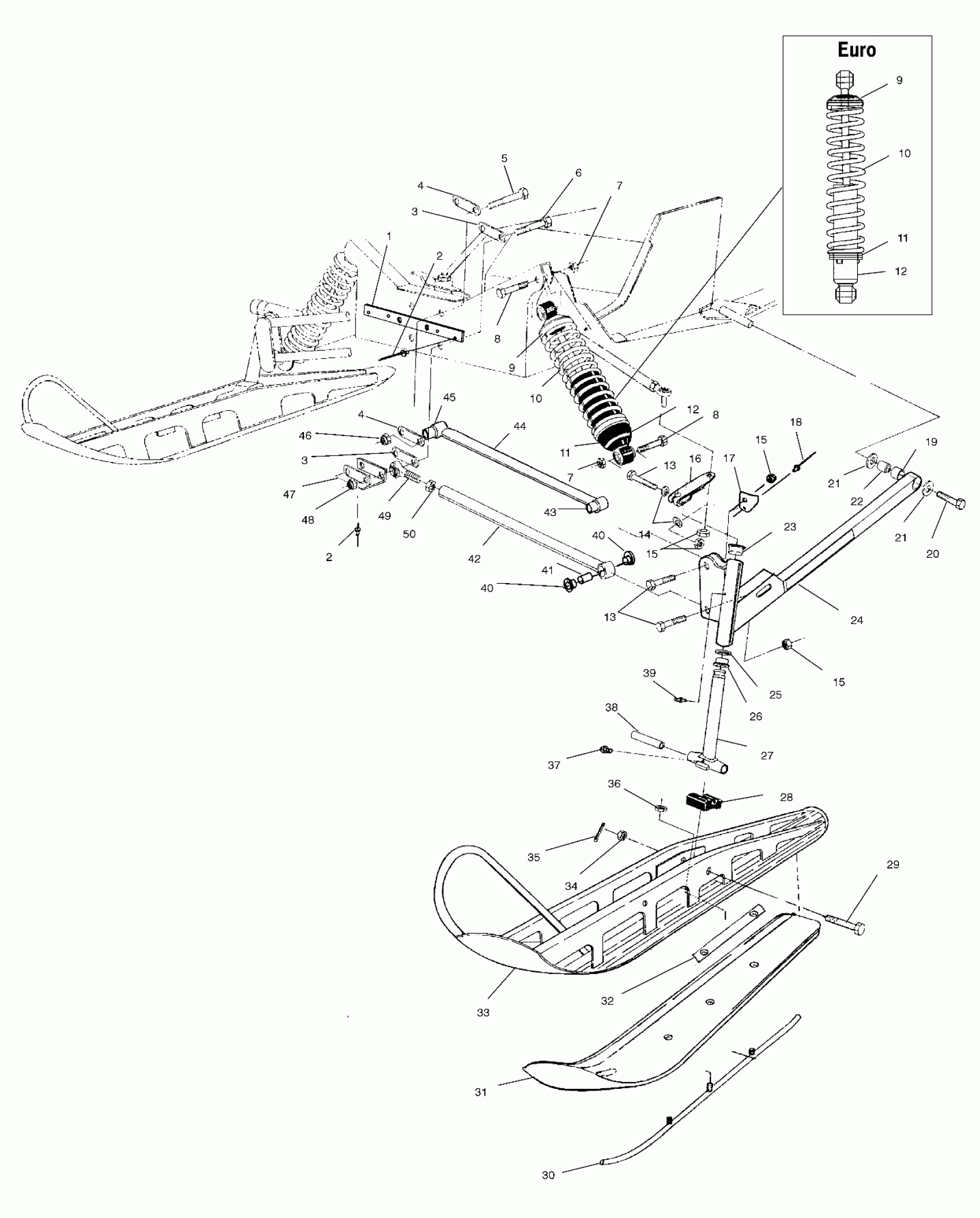

Polaris WIDETRAK LX - S02SU4BS FRONT SUSPENSION and SKI - S02SU4BS/BE (4968476847A13) Diagram

#

Description
Price

1

Brace, Bulkhead

5240349-067

$6.63

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

3

Strap, Spacer, Bottom

5211345

$12.99

3

Strap, Spacer, Bottom

5211345

$12.99

4

Strap, Spacer, Top

5211344

$7.27

4

Strap, Spacer, Top

5211344

$7.27

5

Screw

7512582

$8.79

6

BOLT

7512678

$19.99

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515415

$1.49

8

Screw

7515415

$1.49

9

RETAINER, SPRING COIL

5220225

$10.39

9

RETAINER, SPRING COIL

5220225

$10.39

10

Spring, Compression

7041261-067

$164.99

10

Spring, Compression

7041261-067

$164.99

11

RETAINER, SPRING

5210953

$6.39

11

RETAINER, SPRING

5210953

$6.39

12

Shock

7041535

$214.99

12

Shock

7041535

$214.99

13

SCREW

7517583

$4.35

13

SCREW

7517583

$4.35

14

WSHR-.813X.406X.105-Y

7555832

$2.39

15

Nut, FLEXLOC

7542403

$3.99

15

Nut, FLEXLOC

7542403

$3.99

15

Nut, FLEXLOC

7542403

$3.99

16

Arm, Steering

5220326-067

Unavailable

17

Stop, Steering, LH

5241569-067

$7.27

17

Stop, Steering, RH

5241570-067

$7.27

18

Rivet

7661130

$1.49

19

PIVOT, RUBBER

5410872

$10.99

20

Screw

7512557

$7.60

21

WASHER

7555721

$1.49

21

WASHER

7555721

$1.49

22

BUSHING

5010310

$9.70

23

BUSHING, FLANGE

3573909

$2.39

24

Asm., Trailing Arm, LH (Incl. 19,22)

1822485

$281.49

24

Asm., Trailing Arm, RH (Incl. 19,22)

1822486

Unavailable

25

Bushing, Machinery

7556509

$1.59

26

BUSHING, FLANGED

3574208

$3.19

27

Shaft, Spindle

6230102-067

$294.99

28

Stop, Rubber

5411083

$12.94

29

Screw

7515462

$8.79

30

Skag, Carbide 4", 60 Degree

2871288

$79.99

31

Skin, Ski, Black

5432153-070

Unavailable

32

Shim, Ski Skin

5433795

$13.99

33

Ski

1820430-067

Unavailable

34

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

35

Pin, Cotter

7661209

Unavailable

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

Fitting, Lubrication

7080306

$3.19

38

Bushing

5010158

$19.99

39

Fitting, Lubrication

7080433

$1.49

40

Bushing, Pivot, Radius Rod

5010127

$7.99

40

Bushing, Pivot, Radius Rod

5010127

$7.99

41

BUSHING, PIVOT, RADIUS ROD, OUTER

5431486

$3.19

42

Rod, Radius, Lower

1822444-067

$60.70

43

Bushing, Pivot, 3/8"

5411099

$11.99

44

Asm., Rod, Radius, Upper, Fixed (Incl. 43,45)

1822420

$119.99

45

Bushing, Pivot, 7/16"

5411095

$15.99

46

Nut, FLEXLOC

7542503

$10.39

47

Bracket, Radius Rod, Bottom

5242578

$44.99

48

Nut, FLEXLOC

7542703

Unavailable

49

Rod End, RH

7061071

$48.56

50

Nut, Jam

7542711

$2.39
