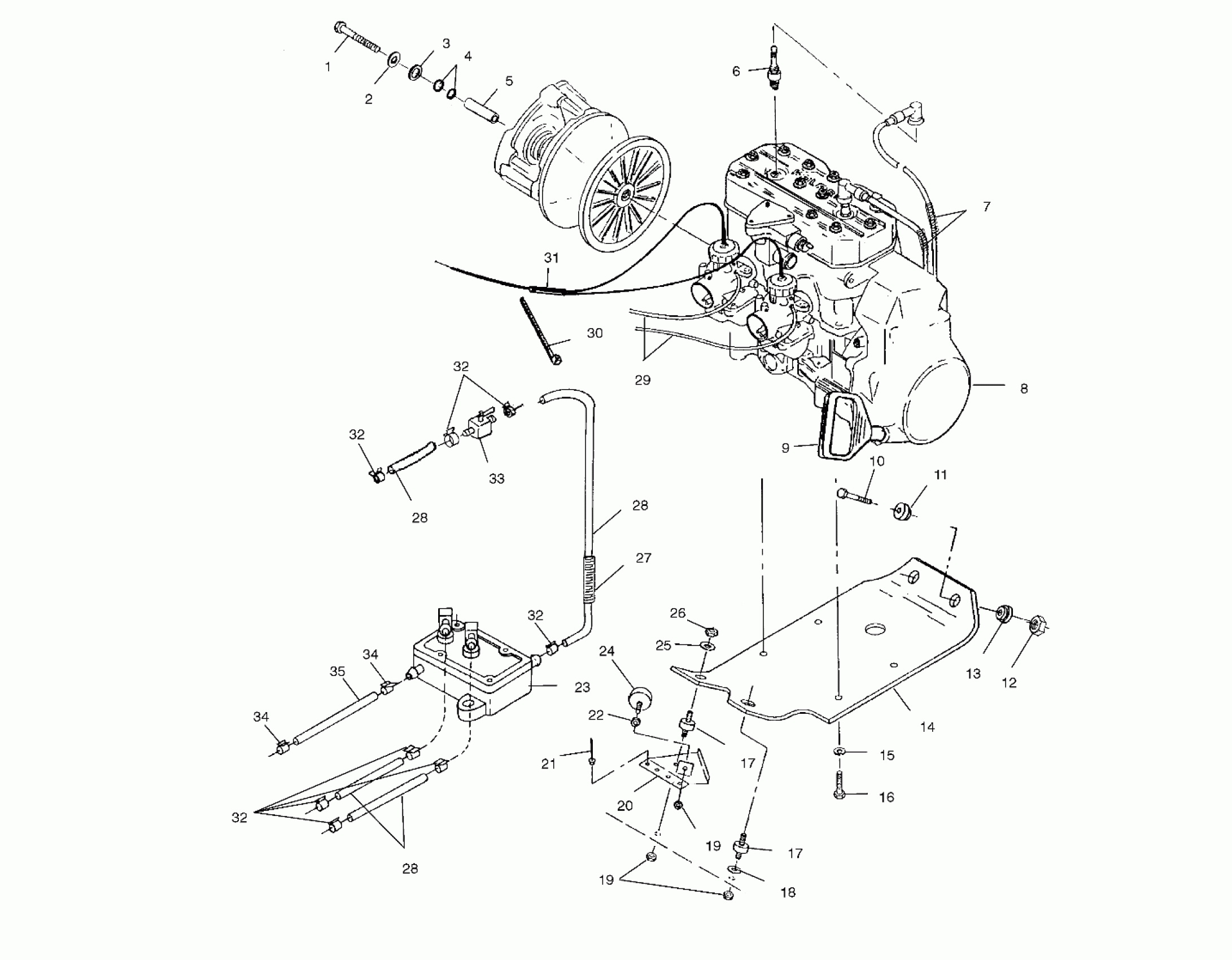

Polaris WIDETRAK LX - S02SU4BS ENGINE MOUNTING - S02SU4BS/BE (4968476847C05) Diagram

Screw

7512565

$19.99

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

Washer, Clutch Retainer

5010278

Unavailable

O-RING, CLUTCH BOLT

5410507

$1.49

SPACER, CLUTCH BOLT

5020513

$44.99

Spark Plug, RN3C Champion

3070166

$3.99

Tubing, Convoluted

5521516-10

$1.49

Engine, Short Block EC50PL230 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for

3086509

Unavailable

Recoil Handle

5431499-070

$15.48

SCREW

7512530

$5.59

MOUNT, ENGINE, RUBBER, TOP

5411685

$24.27

Nut

7542522

$5.59

MOUNT, ENGINE, RUBBER, BOTTOM

5411686

$28.32

Plate, Mount, Motor

5242496

$125.46

Washer, Spring Lock

7553101

$3.99

Screw

7512539

$3.99

Mount, Engine, Stud

3110061

$84.99

Mount, Engine, Stud

3110061

$84.99

Washer, Flat

7555915

$3.19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

LIMITER, TORQUE

1012048-067

$38.71

RIVET-3/16-.090-.290

7661637

$1.49

NUT, HEX

7542414

$4.79

Asm., Water Pump/Fuel Pump (See Fuel Pump Pg. C9, Ref. 10)

-------

Unavailable

STOP, TORQUE

3110063

$29.99

Washer, Flat

7555893

$1.49

NUT, FLEXLOC

7547008

$6.39

Tubing, Convoluted

4010051-15

Unavailable

Line, Fuel

8350018-600

Unavailable

Line, Fuel

8350018-600

Unavailable

Line, Fuel

8350018-600

Unavailable

Line, Fuel, Vent

8360009-600

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

Cable w/Oil, Throttle Control

7080554

$64.75

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

VALVE, FUEL

7052248

$24.27

HOSE CLAMP, RED

7080003

$1.49

HOSE CLAMP, RED

7080003

$1.49

Line, Impulse

8450040-600

Unavailable
