Description

Price

1

Ring, Retaining

7713401

Unavailable

2

BUSHING

7555922

$6.39

3

Asm., Brake Disc

1910217

Unavailable

4

Asm., Gearcase (See Gearcase Pg. B10 for Details)

-------

Unavailable

5

Bolt, Carriage

7517291

$15.99

6

O-Ring

5410630

$2.02

6

O-Ring

5410630

$2.02

7

SCREW

7517446

$8.79

8

FITTING, LUBRICATION

7080437

$14.21

8

Asm., Coupler w/Grease (Incl. Fitting & Screw)

1332219

$113.32

9

Asm., Jackshaft (Incl. 10)

1332256

$474.99

10

Bearing, Greaseable, 1"

3514525

$31.99

10

Bearing, Greaseable, 1"

3514525

$31.99

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

FLANGETTE, 2 BOLT

5222393

Unavailable

14

GASKET, JACKSHAFT, 2-BOLT

5830135

$2.83

15

FLANGETTE W/GREASE GROOVE, 2-BOLT

5222647

$24.27

16

Bolt, Carriage

7512377

$4.79

17

Bushing, Machinery

7556509

$1.59

18

KEY

7721132

$23.99

19

Asm., Driven Clutch (See Driven Clutch Pg. B13, Ref. 14)

-------

Unavailable

20

Spacer, Inlet Shaft

5431482

$24.79

21

Washer, Flat

7555806

$1.49

22

Washer, Spring

7571626

Unavailable

23

SCREW

7515502

$5.59

24

BELT, DRIVE

3211070

$114.99

25

Adaptor w/Fitting, Drive

3280116

$101.17

26

Gasket, Drive Adaptor

5830012

$2.41

27

Key, Square, Speedometer

3280017

$13.75

28

Flangette

5243529

$13.75

29

Bushing, Speedometer, Metal

3280019

$11.99

30

ASM., FLANGETTE W/SCREWS

1012945

$114.99

31

Asm., Drive Shaft (Incl. 29-31)

1590338

$605.14

32

FITTING, LUBRICATION

7080437

$14.21

32

ASM., COUPLER W/GREASE ZERK

1332260

$198.48

33

Bolt, Carriage

7517292

$19.99

34

Bolt, Carriage

7515474

$3.33

35

Shim, Chaincase (.080)

5210760

Unavailable

35

Shim, Chaincase (.063)

5210759

Unavailable

35

Shim, Chaincase (.020)

5210764

Unavailable

35

Shim, Chaincase (.010)

5211065

Unavailable

36

Nut, Flange

7542423

$3.99

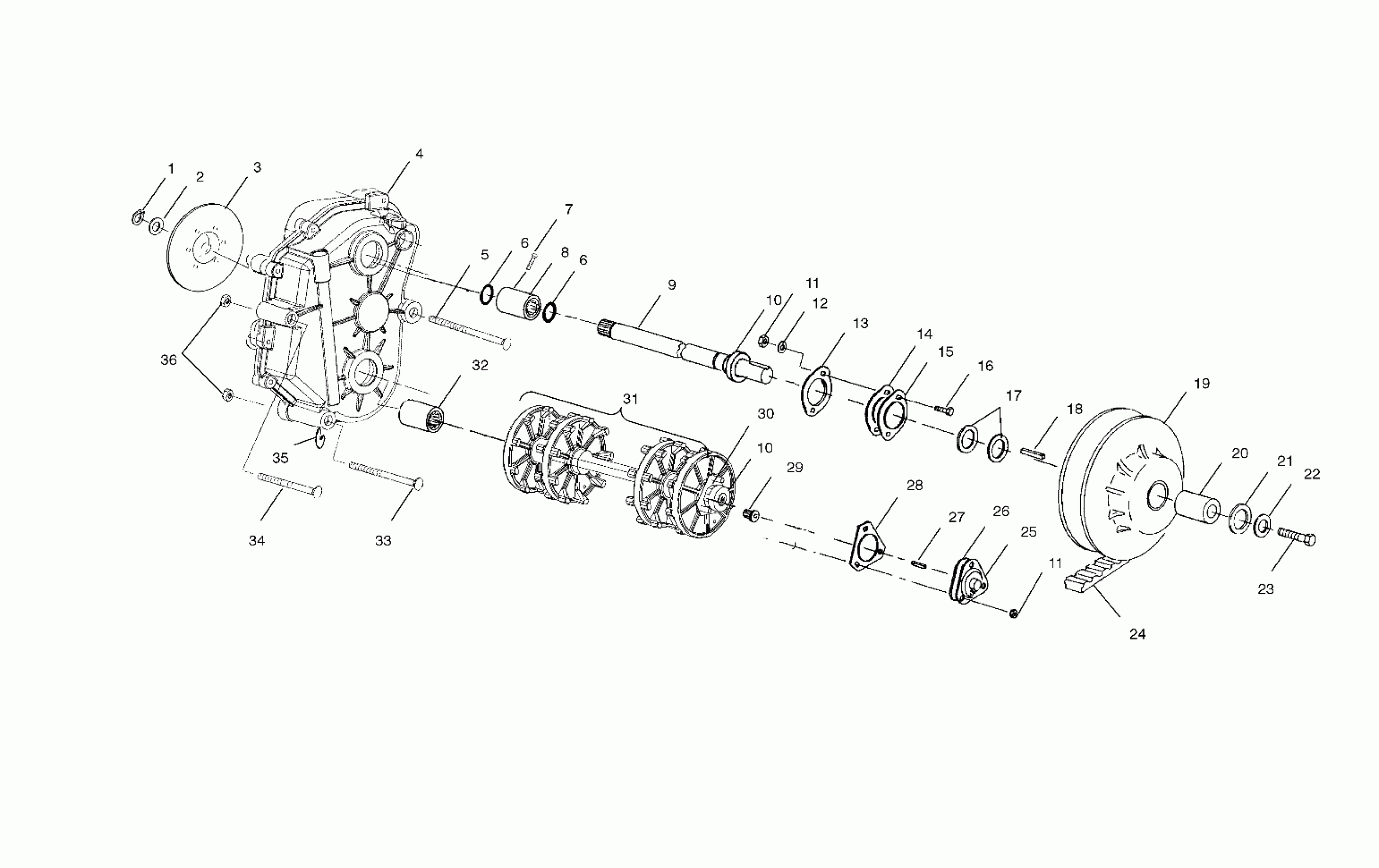

Polaris WIDETRAK LX - S02SU4BS DRIVE SHAFT - S02SU4BS/BE (4968476847B11) Diagram
