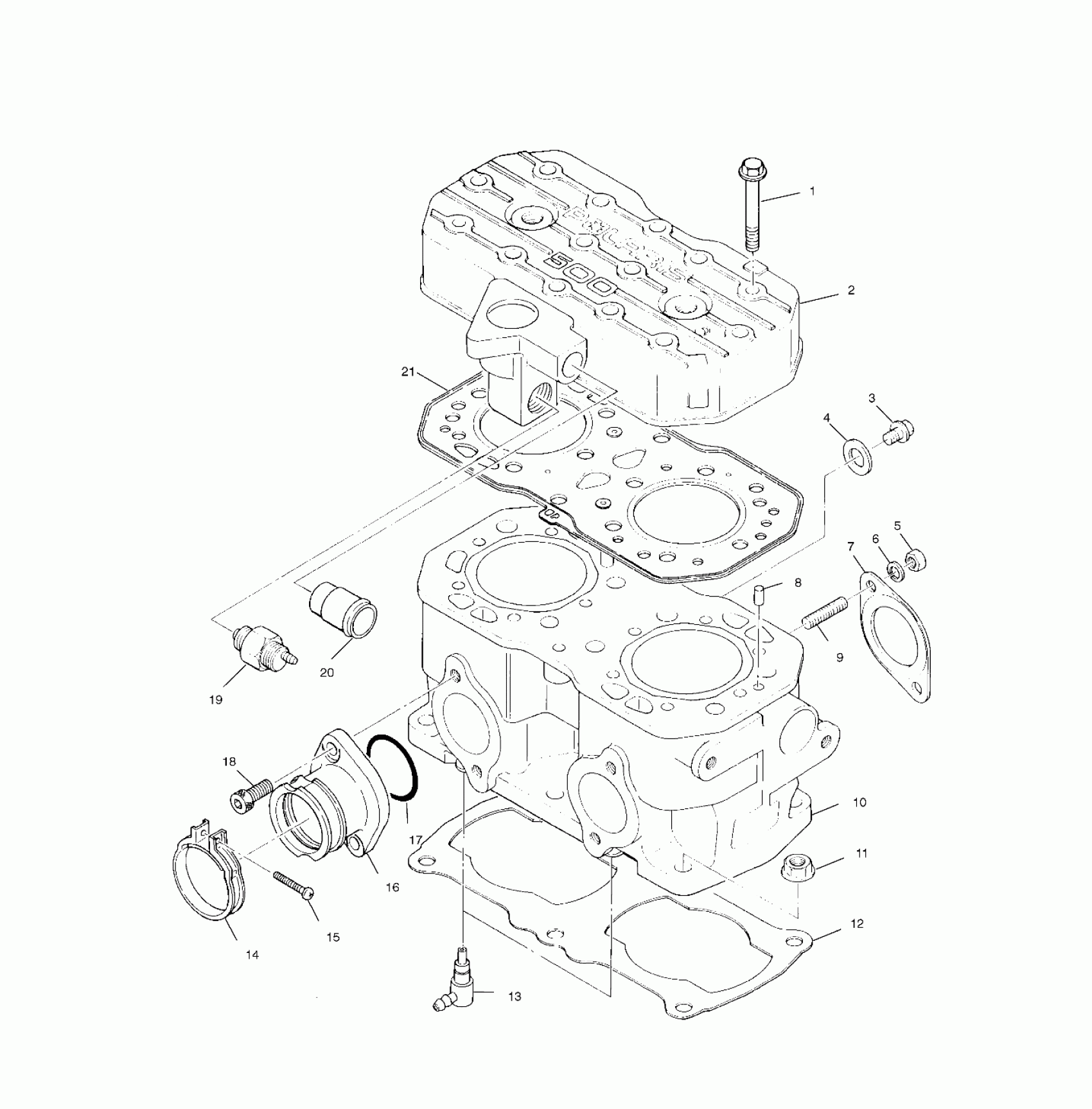

Polaris WIDETRAK LX - S02SU4BS CYLINDER - S02SU4BS/BE (4968476847C07) Diagram

#

Description
Price

1

Bolt, Flange

3085582

$3.99

2

Head, Cylinder (Incl. 20)

3085584

$609.99

3

Plug

3084491

Unavailable

4

Gasket, Aluminum

3084492

$4.03

5

Nut

3080285

Unavailable

6

Washer, Lock

3080530

$3.19

7

Gasket, Exhaust

3086995

Unavailable

8

Pin, Dowel

3080103

$7.14

9

Stud

3085326

Unavailable

10

Cylinder (Incl. 9)

3085583

$649.99

11

Nut, Flange

3082911

$1.99

12

Gasket, Cylinder

3084768

$64.99

13

Valve, Check

3086785

$52.60

14

Asm., Band, Adaptor (Incl. 15)

3083166

$19.84

15

SCREW

3081497

$2.39

16

Adaptor (Incl. 17)

3085044

Unavailable

17

O-RING

3085619

$20.22

18

Bolt

3081330

$3.99

19

Switch, Thermo (105 Degree C)

3084284

Unavailable

20

Pipe, Water

3083452

Unavailable

21

Gasket, Head

3085585

Unavailable
