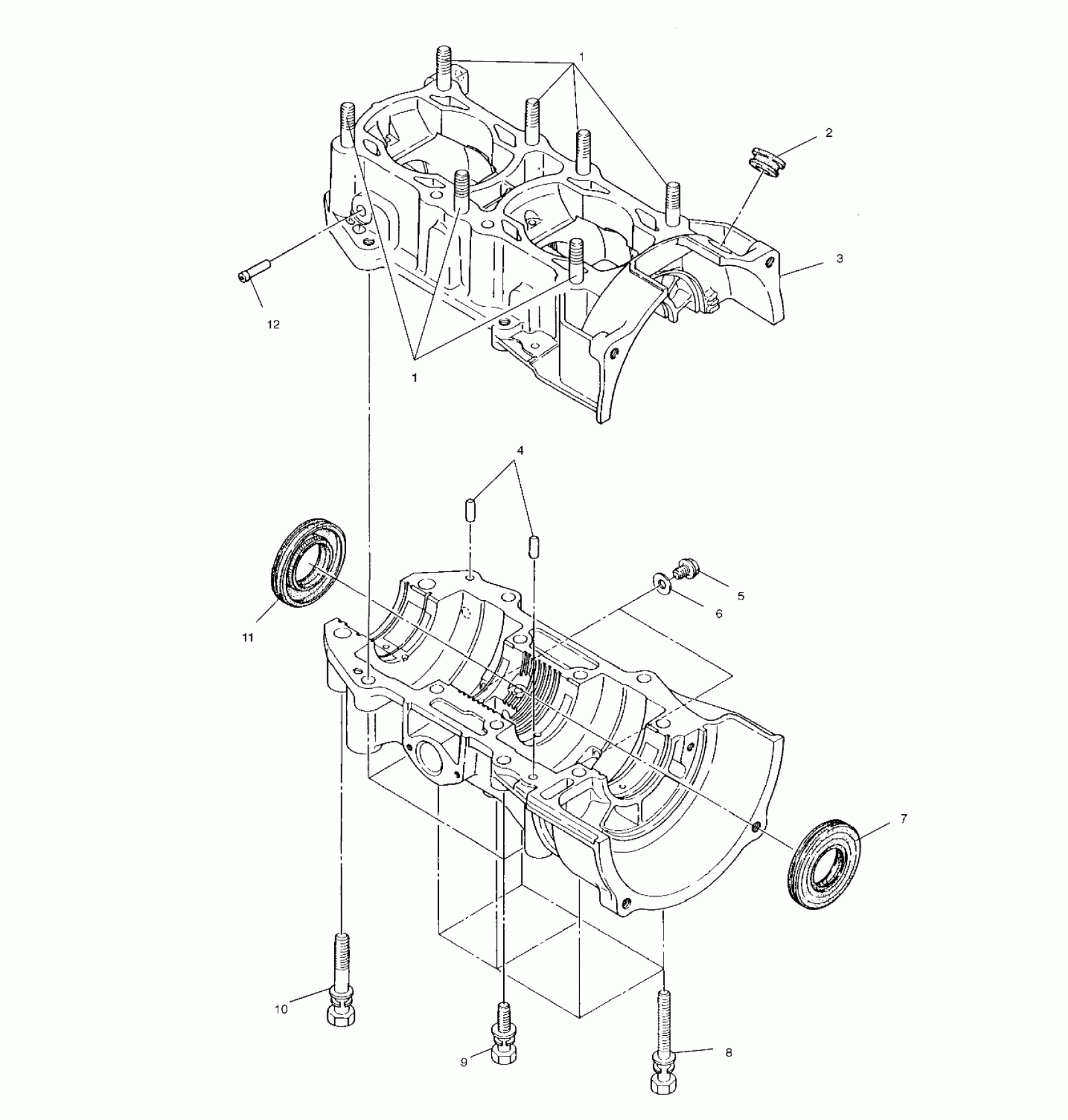

Polaris WIDETRAK LX - S02SU4BS CRANKCASE - S02SU4BS/BE (4968476847C06) Diagram

#

Description
Price

1

Stud

3084119

$9.59

1

Stud

3084119

$9.59

2

GROMMET

3082875

$7.99

3

Asm., Crankcase (Incl. 1,4,8-10,12)

3086832

$854.99

4

Pin, Dowel

3080103

$7.14

5

Bolt, Flange

3083568

$3.85

6

Gasket, Aluminum

3082758

$1.19

7

Seal, Oil (MAG Side)

3086833

$36.41

8

Bolt and Washer

3080739

$6.39

9

Bolt and Washer

3083078

Unavailable

10

Bolt and Washer

3084220

$8.79

11

Seal, Oil (PTO Shaft)

3085200

$36.41

12

Pipe, Pulse (25mm)

3083798

$9.52
