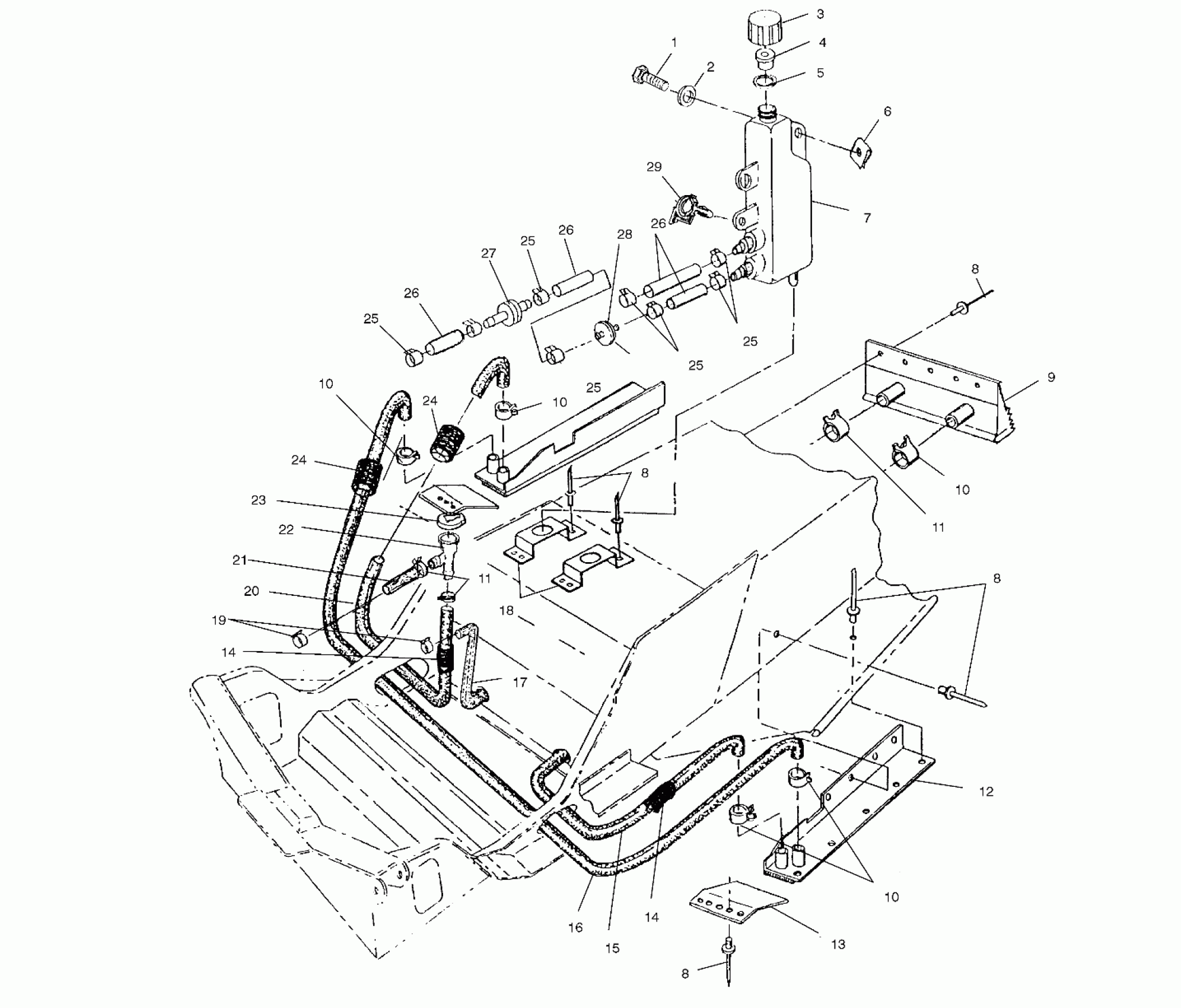

Polaris WIDETRAK LX - S02SU4BS COOLING SYSTEM - S02SU4BS/BE (4968476847C03) Diagram

#

Description
Price

1

Bolt

7512276

$4.79

2

WASHER

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

NUT, CHIMNEY

7670096

$1.59

7

Bottle w/Fittings, Overflow

5431733

$36.41

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

9

Asm., Cooling Extrusion, Center

2511187

Unavailable

10

Clamp, Hose, 27mm

7080841

$7.19

10

Clamp, Hose, 27mm

7080841

$7.19

10

Clamp, Hose, 27mm

7080841

$7.19

10

Clamp, Hose, 27mm

7080841

$7.19

11

Clamp, Hose, 35mm

7080844

$10.39

11

Clamp, Hose, 35mm

7080844

$10.39

12

Cooler, Side, LH

2511257

$144.99

12

Cooler, Side, RH

2511258

$227.99

13

Guard, Cooling Extrusion

5240555

$11.59

14

Tubing, Convoluted

5411396

$9.70

14

Tubing, Convoluted

5411396

$9.70

15

Hose, Crossover, Short

5410558

$19.68

16

Hose, Crossover

5410557

Unavailable

17

Hose, Engine/Center Extrusion

5411382

$40.46

18

Bracket

5241334

$9.70

19

Clamp, Hose, 29mm

7080842

$7.19

20

Hose, Filler Out, Extrusion, RH

5411381

Unavailable

21

Hose, Engine Out/Filler

5411010

$24.27

22

Filler, Remote Coolant

5433364

$43.56

23

Cap, Pressure

2511256

Unavailable

24

Tubing, Convoluted

5521242

Unavailable

24

Tubing, Convoluted

5521242

Unavailable

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

Line, Fuel

8450003-1525

Unavailable

26

Line, Fuel

8450003-1525

Unavailable

26

Line, Fuel

8450003-1525

Unavailable

27

VALVE, CHECK

7052038

$10.51

28

Filter, Coolant

2530024

Unavailable

29

CLIP, ROSEBUD

4020139

$4.79
