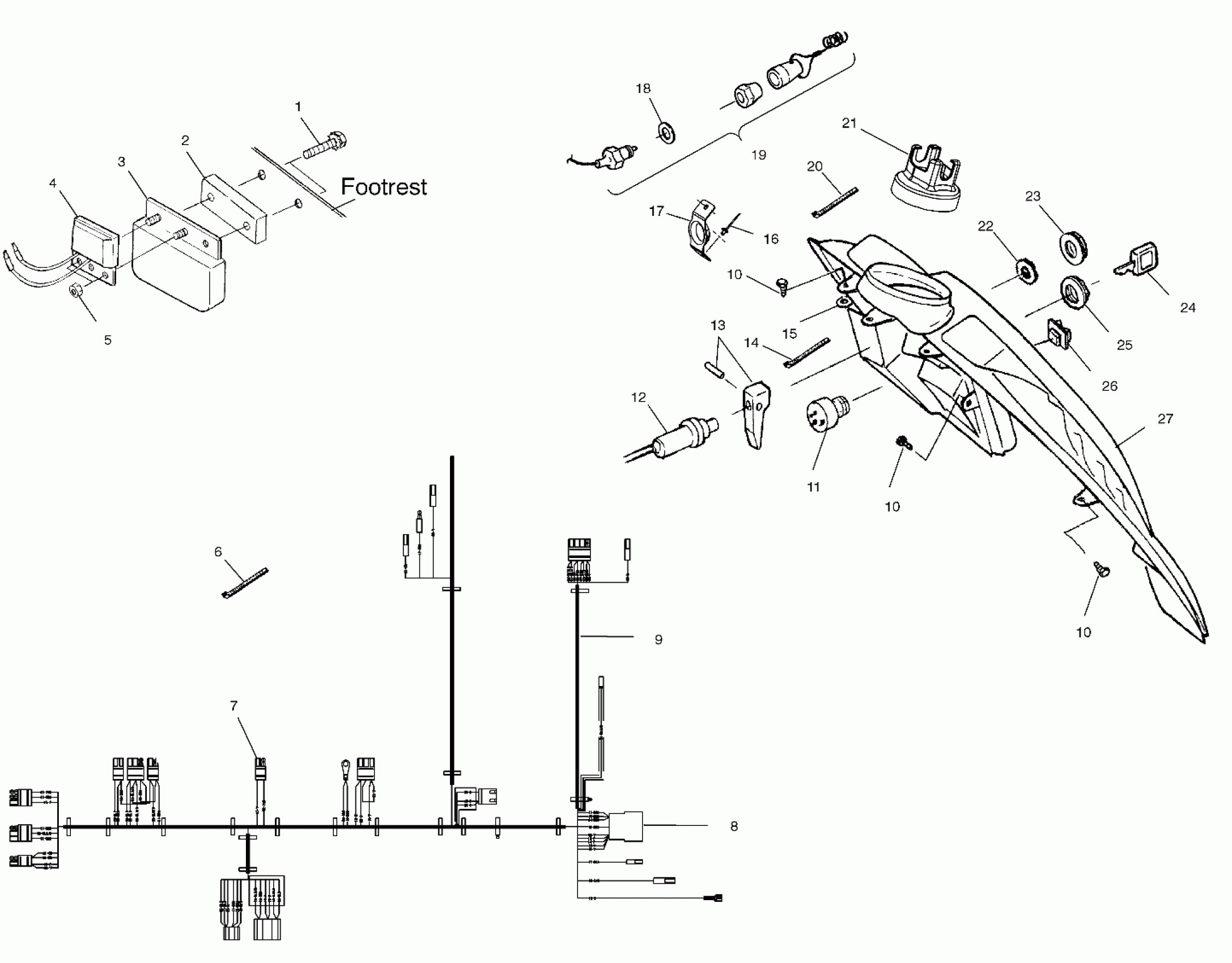

Polaris WIDETRAK LX - S02SU4BS CONSOLE - S02SU4BS/BE (4968476847A11) Diagram

#

Description
Price

1

Screw

7512031

$2.23

2

Spacer

5211573

Unavailable

3

REGULATOR, LR9

4060122

Unavailable

4

RECTIFIER, LR-4

4060104

Unavailable

5

Nut, Nylok

7541925

$1.49

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

Terminal, Ring

4020092

Unavailable

8

Housing

4020057

$3.51

9

Foil, Connector, Wire Harness

5811765

$5.65

9

Harness, Wire, Main

2460910

$189.59

10

Screw

7515199

$1.49

10

Screw

7515199

$1.49

10

Screw

7515199

$1.49

11

Kit, Ignition Switch

2200358

$76.89

12

Cable, Choke Control (Incl. 13,23)

7080290

$105.22

13

Lever, Choke (Incl. Pin)

5432943

Unavailable

14

CABLE TIE, RELEASABLE

7080804

$3.22

15

Washer, Nylon

7555932

$2.39

16

RIVET

7621330

$1.49

17

GUIDE, RECOIL

5243049

$9.70

18

Washer (Euro)

7555817

Unavailable

19

Asm., Switch, Tether (Incl. 18)(Euro)

4010187

Unavailable

20

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

21

Boot, Handlebar (US)

5433243

$129.99

21

Boot, Handlebar (Euro)

5434227

$47.99

22

Washer, Lock

7571610

$3.99

23

Nut, Choke

5432944

$8.79

24

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

25

Nut, Ignition

7547035

$8.79

26

Switch, Heater, Hi/Lo

4110263

Unavailable

27

Console (US)

5432994

$70.39

27

Console (Euro)

5433992

$58.73
