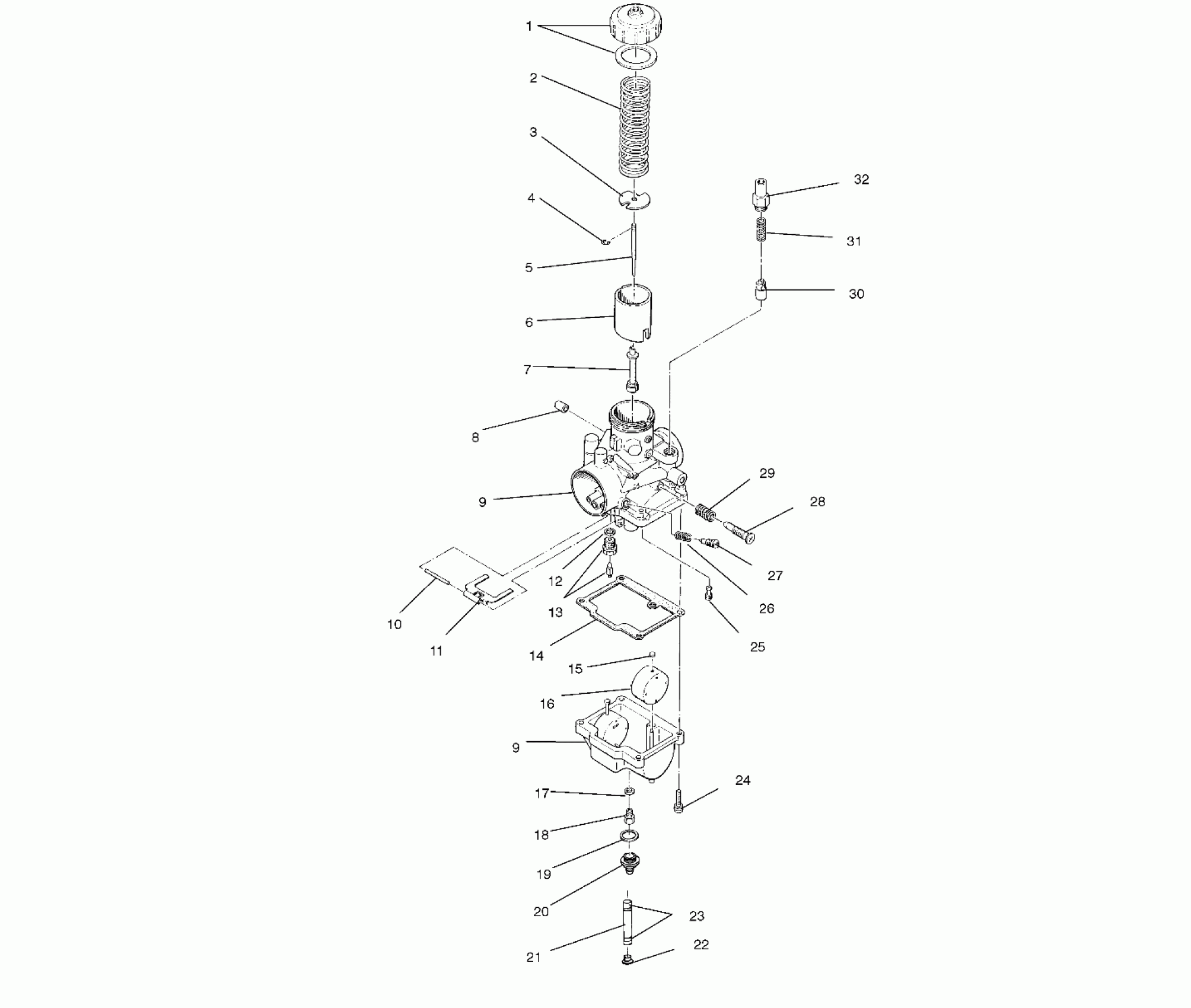

Polaris WIDETRAK LX - S02SU4BS CARBURETOR - S02SU4BS/BE (4968476847C10) Diagram

#

Description
Price

1

Top, Mixing Chamber

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

Plate, Throttle

3130027

$9.70

4

E-RING

3130508

$6.46

5

Needle, Jet (6EJ26-2)

3130423

$20.22

6

Valve, Throttle (3.0)

3130372

$52.60

7

Jet, Needle, P-6 (166)

3130160

$36.41

8

CAP

3130479

$14.56

9

Asm., Carburetor (Incl. 1-20,24-32)

3130711

$503.48

9

Asm., Carburetor (Incl. 1-20,24-32)

3130711

$503.48

10

PIN, FLOAT

3130361

$8.89

11

Arm, Float

3130018

$24.27

12

Packing, Needle Valve

3130017

$4.03

13

Valve, Needle (1.5)

3131146

$48.56

14

Gasket, Float Chamber

3130020

$16.17

15

Cap

3130237

$4.03

16

Float

3130430

$43.56

17

WASHER

3130014

$1.59

18

Jet, Main (#195)

3130122

$6.46

19

O-RING

3130239

Unavailable

20

Nipple

5020476

$10.63

21

Line, Fuel

8350017-600

Unavailable

22

Plug, Trap

5431893

$12.94

23

HOSE CLAMP, RED

7080003

$1.49

24

Screw and Washer

3130025

$3.19

25

Jet, Pilot (#35)

3130066

$8.89

26

Spring, Air Adjuster

3130012

$8.89

27

Screw, Air

3130011

$19.99

28

Screw, Throttle Stop

3130009

$19.99

29

SPRING, THROTTLE ADJUSTER

3130010

$8.89

30

Plunger

3130328

$32.37

31

Spring, Plunger

3130006

$8.89

32

Cap, Plunger

3130199

$28.32
