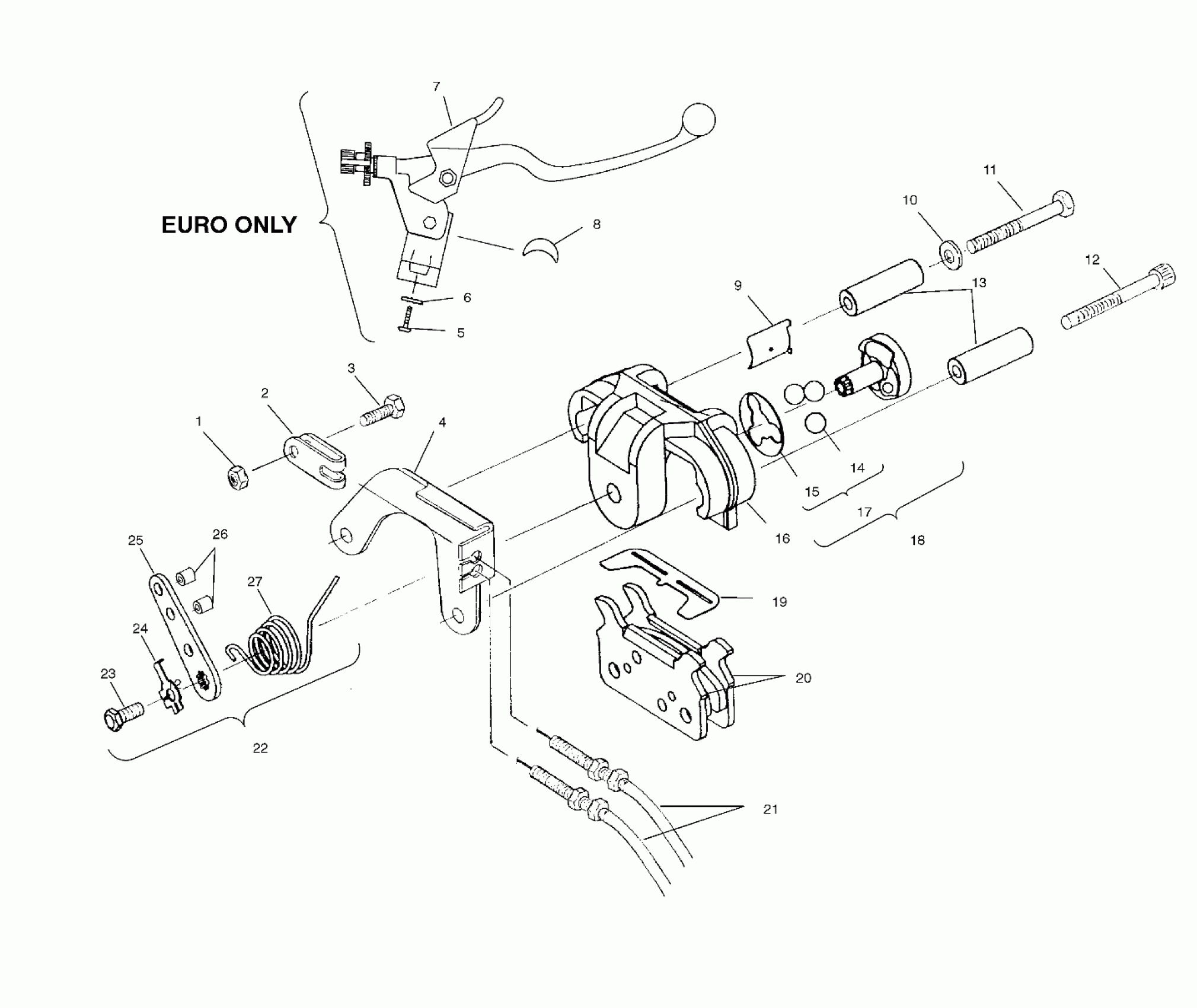

Polaris WIDETRAK LX - S02SU4BS BRAKE - S02SU4BS/BE (4968476847B08) Diagram

#

Description
Price

-

Asm., Caliper (Incl. 9,13-15,18-20,22,27)

1910399

$247.60

1

Nut, FLEXLOC (Qty. 2 for Euro)

7542103

$5.59

2

Clevis (Qty. 2 for Euro)

7080316

Unavailable

3

Bolt (Qty. 2 for Euro)

7512240

$3.99

4

Bracket, Brake

5241868-067

$28.15

5

Screw (Euro) (Euro)

7512040

Unavailable

6

Washer (Euro) (Euro)

7555780

Unavailable

7

Lever, Park Brake (Euro) (Euro)

2050039

Unavailable

8

Spacer, Brake Lever (Euro) (Euro)

5130860

$13.59

9

Clip, Spring

-------

Unavailable

10

Washer, Flat

7555734

$1.49

11

Screw

7517346

Unavailable

12

Screw

7517340

$12.39

13

Kit, Mount Bushing

2200992

$47.99

14

BEARINGS, BALL

-------

Unavailable

15

SPACER, BALL

-------

Unavailable

16

Kit, Caliper, Casting

2200993

$151.99

17

Kit, Ball Bearing (Incl. 14,15)

2200994

$22.39

18

Kit, CW Rotor (Incl. 14,15)

2200989

$74.39

19

Kit, Pad Spring and Clip (Incl. 9)

2200990

$30.95

20

Kit, Brake Pad, Type 81 (Set of 2) (Incl. 9,19,24)

2201567

$199.99

21

Cable, Brake (US)(Euro)

7080666

$93.08

21

Cable, Brake (Euro) (Euro)

7080667

$45.59

22

Kit, Lever and Spring (Incl. 23,24,25,27)

2200991

$34.71

23

SCREW

-------

Unavailable

24

ANTI-ROTATION CLIP

-------

Unavailable

25

Lever

-------

Unavailable

26

Bushing (Qty. 2 for Euro)

5332795

$5.56

27

LEVER, SPRING

-------

Unavailable
