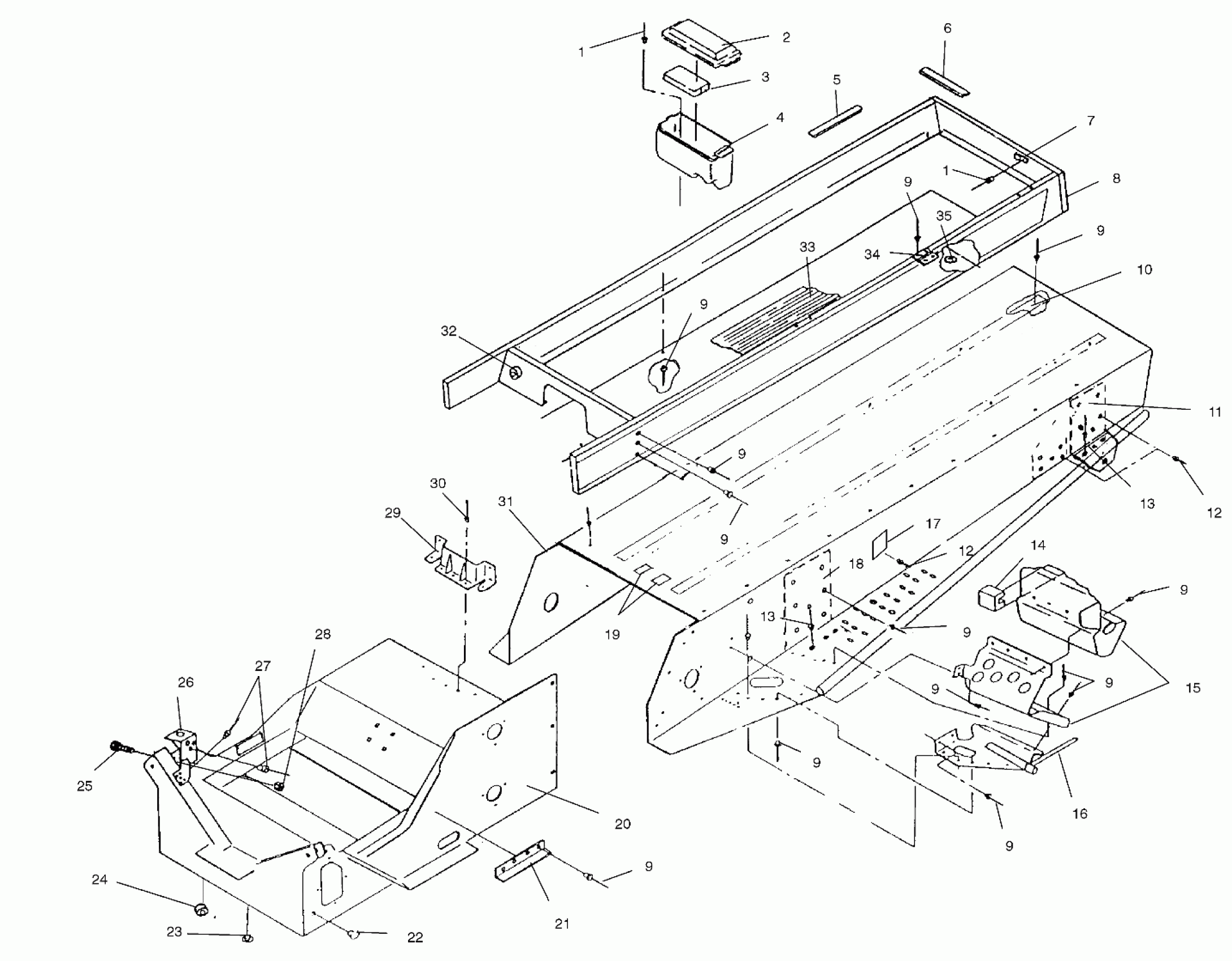

Polaris WIDETRAK LX - S00SU4BS TUNNEL - S00SU4BS (4953955395a005) Diagram

#

Description
Price

1

RIVET,3/16X.402(50)

7621432

$1.49

1

RIVET,3/16X.402(50)

7621432

$1.49

2

COVER,TOOL BOX

5430719

$28.32

3

FOAM,TOOLBOX

5811051

Unavailable

4

BOX-TOOL

5430716

$11.99

5

SEAL,SEAT RISER

5410562

$20.22

6

SEAL,SHORT,SEAT RISER

5410563

$7.73

7

CLIP, HALF(10)

7080393

$3.19

8

RISER, SEAT ASM.

1011947-067

$196.83

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

10

Strip, Wear

5510233

$23.99

11

PAD,LH,HD.SUSPENSION

1012387-067

$45.59

11

PAD,RH,HD.SUSPENSION

1012388-067

$45.59

12

RIVET ,(50)

7661837

$1.49

12

RIVET ,(50)

7661837

$1.49

13

RIVET,SEMI-TUBE.,(50)

7661844

$1.49

13

RIVET,SEMI-TUBE.,(50)

7661844

$1.49

14

EXTRUSION,CLUTCHGUARD

5521238

$6.46

15

FOOTREST ASM,LH,LX

1012734

$206.41

15

FOOTREST ASM,RH,LX

1012735

Unavailable

16

SUPPORT,TRLG.ARM,LH,BLK.

1012905-067

$189.99

16

SUPPORT,TRLG.ARM,RH,BLK.

1012906-067

$189.99

17

PLATE,TUNNEL,CARRIER,BLK.

5211220-067

Unavailable

18

BRKT,F.SUSP.,BLK.

5211323-067

$29.99

19

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

20

BULKHEAD,BLK

1012728-067

$669.99

21

GUARD,ADAPTER GUIDE

5222857

$12.94

22

PLUG, HOLE(10)

7080416

$5.65

23

PLUG-HOLE

7080398

$4.84

24

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

25

SCREW(10)

7512307

$3.99

26

Support, Muffler (See Footnote) (See Exhaust System Pg. C2, Ref. 20)

-------

Unavailable

27

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

28

NUT LOCK(10)

7542321

$1.49

29

BRACKET, GASTANK

5221932-067

Unavailable

30

RIVET(50)

7621301

$3.99

31

TUNNEL,HD,(LX) (Incl. 9-11,18)

1012402

$497.60

32

BUSHING,(OPEN/CLOSE)(10)

7080392

$2.07

33

Protector, Riser

5410561

$89.90

34

HINGE,FLAT(10)

7020023

$4.19

35

Grommet

5410437

$2.39
