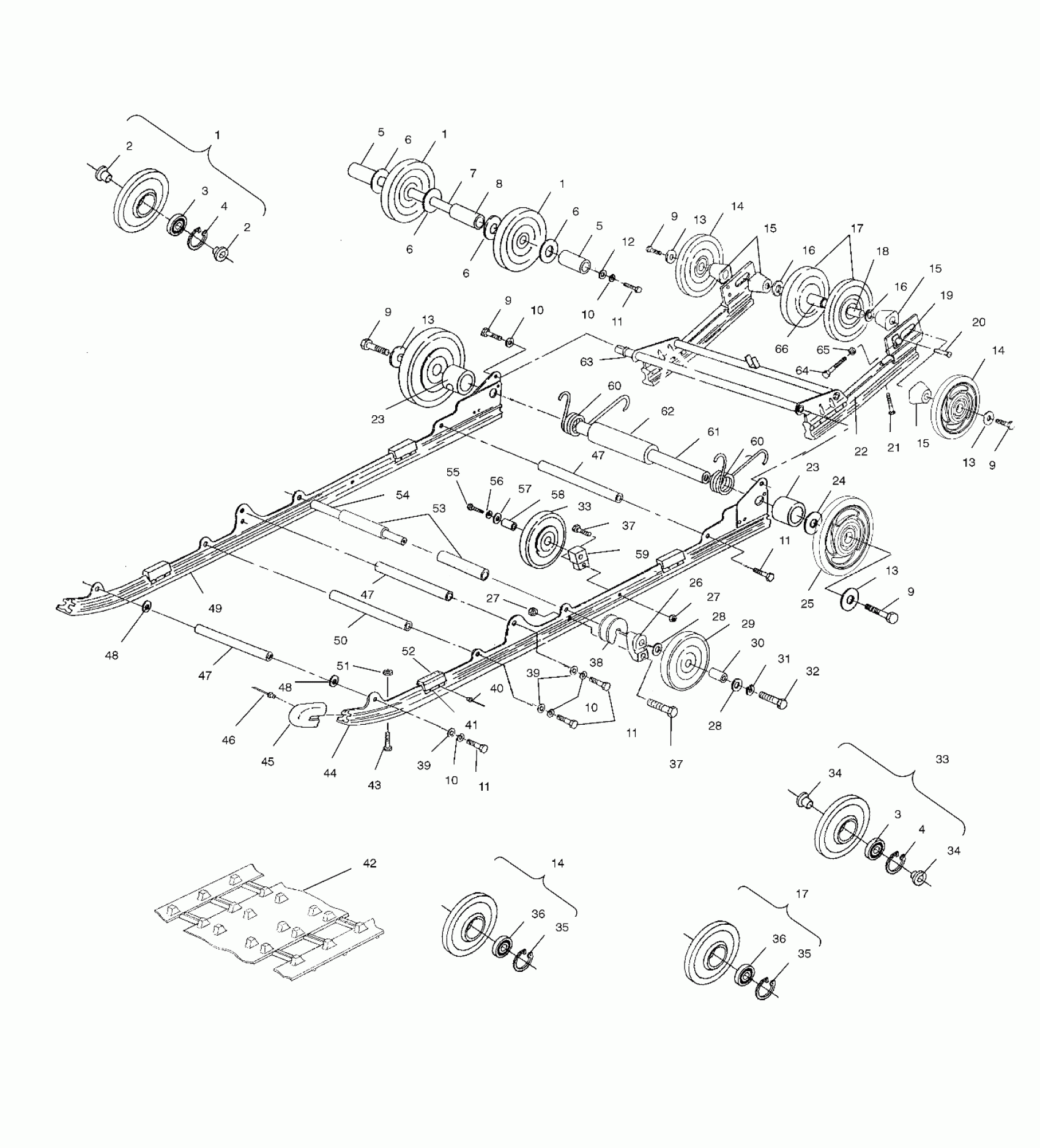

Polaris WIDETRAK LX - S00SU4BS SUSPENSION - S00SU4BS (4953955395b007) Diagram

#

Description
Price

1

WHEEL, CARRIER (Incl. 2,3,4)

1543021

Unavailable

1

WHEEL, CARRIER (Incl. 2,3,4)

1543021

Unavailable

1

WHEEL, CARRIER (Incl. 2,3,4)

1543021

Unavailable

2

INSERTS, WHEEL (Set)

5430723

$3.99

2

INSERTS, WHEEL (Set)

5430723

$3.99

3

BEARING (1 per Wheel)

3514303

$11.99

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

SPACER, OUTER

5333019-067

$15.99

5

SPACER, OUTER

5333019-067

$15.99

6

WASHER(10)

7555726

$1.59

6

WASHER(10)

7555726

$1.59

6

WASHER(10)

7555726

$1.59

6

WASHER(10)

7555726

$1.59

7

SHAFT,MTG.

5020836

$32.37

8

SPACER,BLK,IN.CARRIER

5333020-067

$24.99

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

10

WASHER(10)

7552603

$1.49

10

WASHER(10)

7552603

$1.49

10

WASHER(10)

7552603

$1.49

10

WASHER(10)

7552603

$1.49

11

SCREW,(10)

7517247

$3.19

11

SCREW,(10)

7517247

$3.19

11

SCREW,(10)

7517247

$3.19

11

SCREW,(10)

7517247

$3.19

12

WASHER(10)

7555893

$1.49

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

14

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

14

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

14

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

15

SPACER-IDLER

5432535

$11.99

15

SPACER-IDLER

5432535

$11.99

15

SPACER-IDLER

5432535

$11.99

16

BUSHING(10)

7555918

$1.59

16

BUSHING(10)

7555918

$1.59

17

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

17

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

18

SHAFT,IDLER

5020879

$43.99

19

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

20

RIVET,(50)

7621501

$2.39

21

SCREW(10)

7512225

$3.99

22

SLIDER,WHI.,(2)

5521452

$40.46

22

RAIL ASM,SWINGARM,RIVETED (Incl. 19,20)

1541133

Unavailable

23

TUBESPACER,CTR,OUTSIDE

5330171-067

$16.99

23

TUBESPACER,CTR,OUTSIDE

5330171-067

$16.99

24

MACHINERY BUSHING(10)

7556301

$3.19

25

WHEEL,IDLER,SCRL.NEW.GLD.

1590276-227

$48.56

26

SPACER

5630399

$11.99

27

NUT-LOCK(10)

7542439

$1.49

27

NUT-LOCK(10)

7542439

$1.49

28

WASHER, FLAT(10)

7555852

$2.39

28

WASHER, FLAT(10)

7555852

$2.39

29

WHEEL,SCROLL,BOGIE,GLDMET

1594082-227

Unavailable

30

SPACER, WHEEL

5333116

$7.99

31

WASHER LOCK(10)

7553101

$3.99

32

BOLT(10)

7512538

$6.39

33

WHEEL, IDLER (Incl. 3,4,34)

1543018

$56.65

33

WHEEL, IDLER (Incl. 3,4,34)

1543018

$56.65

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

35

RING-RETAINING

7710444

$8.79

35

RING-RETAINING

7710444

$8.79

36

Bearing

3514012

Unavailable

36

Bearing

3514012

Unavailable

37

BOLT(10)

7512404

$3.99

37

BOLT(10)

7512404

$3.99

38

ROLLER, SPRING

5431366

$10.51

39

WASHER(10)

7555806

$1.49

39

WASHER(10)

7555806

$1.49

40

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

41

REINF., BUMPER

5222629

$13.75

42

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

42

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

42

TRACK,20"X156X1"SHOCKWAVE

5411682

Unavailable

43

SCREW(10)

7512227

$3.19

44

SLIDER,WHI.,(2)

5521452

$40.46

44

RAIL ASM,LH,(W'TRAK) (Incl. 41,45,52)

1540751

$419.99

45

COVER-RAIL TIP

5430627

$32.37

46

RIVET(50)

7621435

$1.49

47

SHAFT-PIVOT,.750X13.235

5132239

$74.99

47

SHAFT-PIVOT,.750X13.235

5132239

$74.99

47

SHAFT-PIVOT,.750X13.235

5132239

$74.99

48

WASHER(10)

7555823

$3.99

48

WASHER(10)

7555823

$3.99

49

SLIDER,WHI.,(2)

5521452

$40.46

49

RAIL ASM,RH,(W'TRAK) (Incl. 41,45,52)

1540752

$419.99

50

SHAFT,SPANNER

5020720

$34.99

51

NUT-LOCK(10)

7542122

$1.49

52

BUMPER, RAIL

5810554

$7.27

53

SPACER,R.SHOCK

5333138

$39.99

54

SHAFT,REAR SHOCK Substituted by 5020719

5020651

Unavailable

55

BOLT(10)

7512659

$7.99

56

LOCK WASHER(10)

7553201

$3.99

57

WASHER(10)

7555804

$3.99

58

SPACER

5332786

$7.99

59

BRACKET,BOGIE WHEEL

5130570

$48.56

60

SPRING,R.EXT,BLK.

7041231-067

$59.99

60

SPRING,R.EXT,BLK.

7041231-067

$59.99

61

SHAFT,IDLER

5020726

$39.99

62

TUBE,CTR.IDLER,BLK.

5333014-067

$39.99

63

SHAFT,PIVOT ARM

5020725

$34.99

64

BOLT(10)

7515459

$5.59

65

NUT(10)

7542404

$1.59

66

SPACER,IDLER

5333523

$11.99
