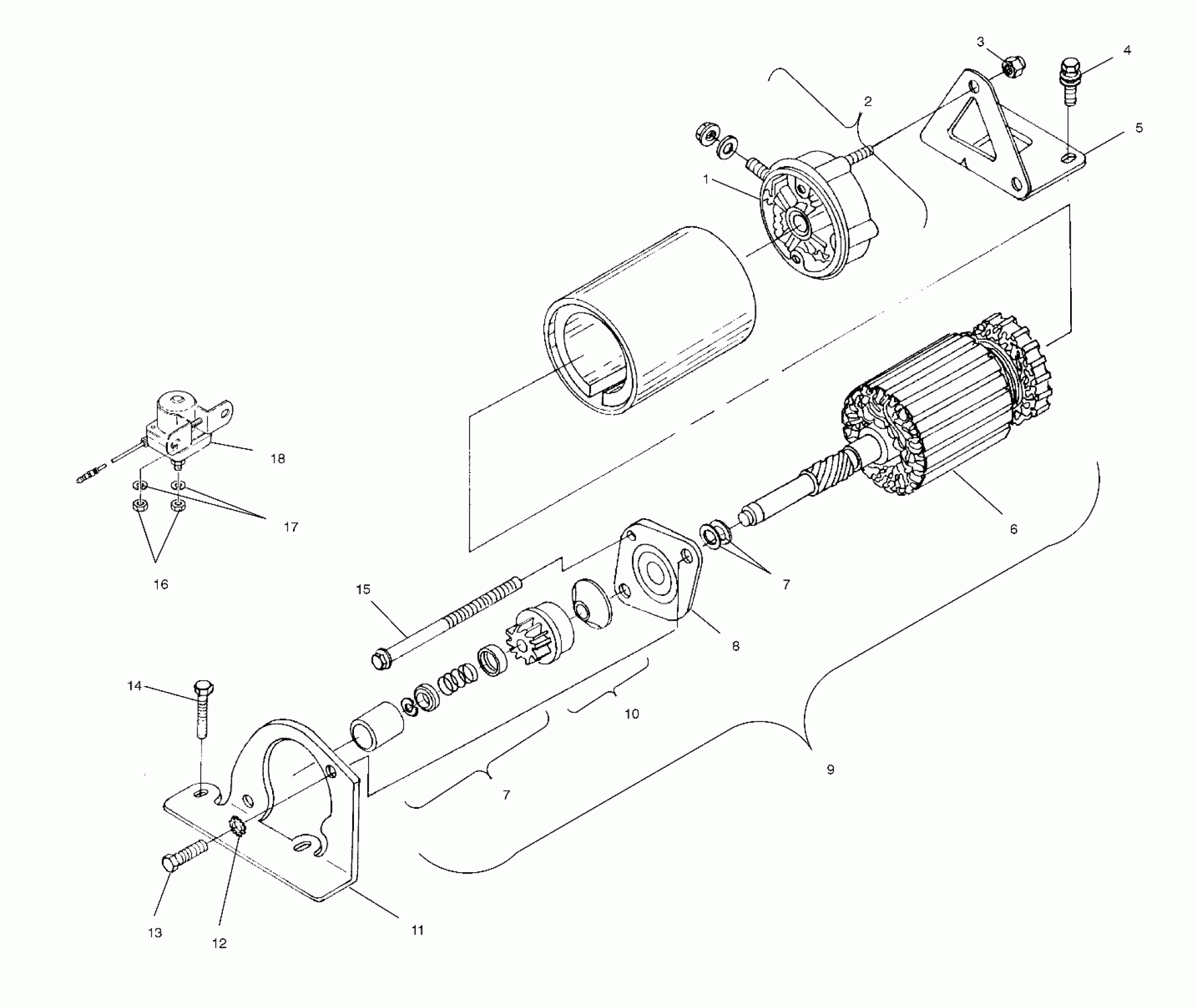

Polaris WIDETRAK LX - S00SU4BS STARTING MOTOR - S00SU4BS (4953955395d002) Diagram

#

Description
Price

1

KIT,BRUSH&SPRING

2200759

$59.99

1

BRUSH AND SCREW

-------

Unavailable

1

Nut

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

BRUSH

-------

Unavailable

2

KIT,COMMUTATOR CAP ASM. (Incl. 1)

2200758

$82.39

3

NUT(10)

7542153

$1.59

4

SCREW(10)

7516815

$6.39

5

BRKT,R.STARTER

5240956

$16.99

6

KIT,ARMATURE ASM.

2200756

$169.99

7

KIT,DRIVE HDWE.

2200755

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

SPACER

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

COVER, DUST

-------

Unavailable

7

KIT,DRIVE HDWE.

2200755

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

SPACER

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

COVER, DUST

-------

Unavailable

8

KIT,DRIVECAP ASM.

2200757

$59.99

9

MOTOR,STARTER,(DOMESTIC)

4170006

Unavailable

10

KIT,DRIVE ASM.

2200754

Unavailable

10

PLATE, DRIVE

-------

Unavailable

10

PINION

-------

Unavailable

11

BRKT,STARTER,FR.(2 CYL)

5241271

$32.37

12

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

13

SCREW(10)

7512492

$1.49

14

SCREW & WASHER ASM.(10)

7516730

$6.39

15

KIT,SCREW

2200753

$29.99

15

THROUGH BOLT

-------

Unavailable

16

NUT(10)

3082939

Unavailable

17

WASHER SPRING(10)

3080077

$2.39

18

SWITCH-MAGNETIC Substituted by 3085521 (Incl. 16,17)

3083211

Unavailable
