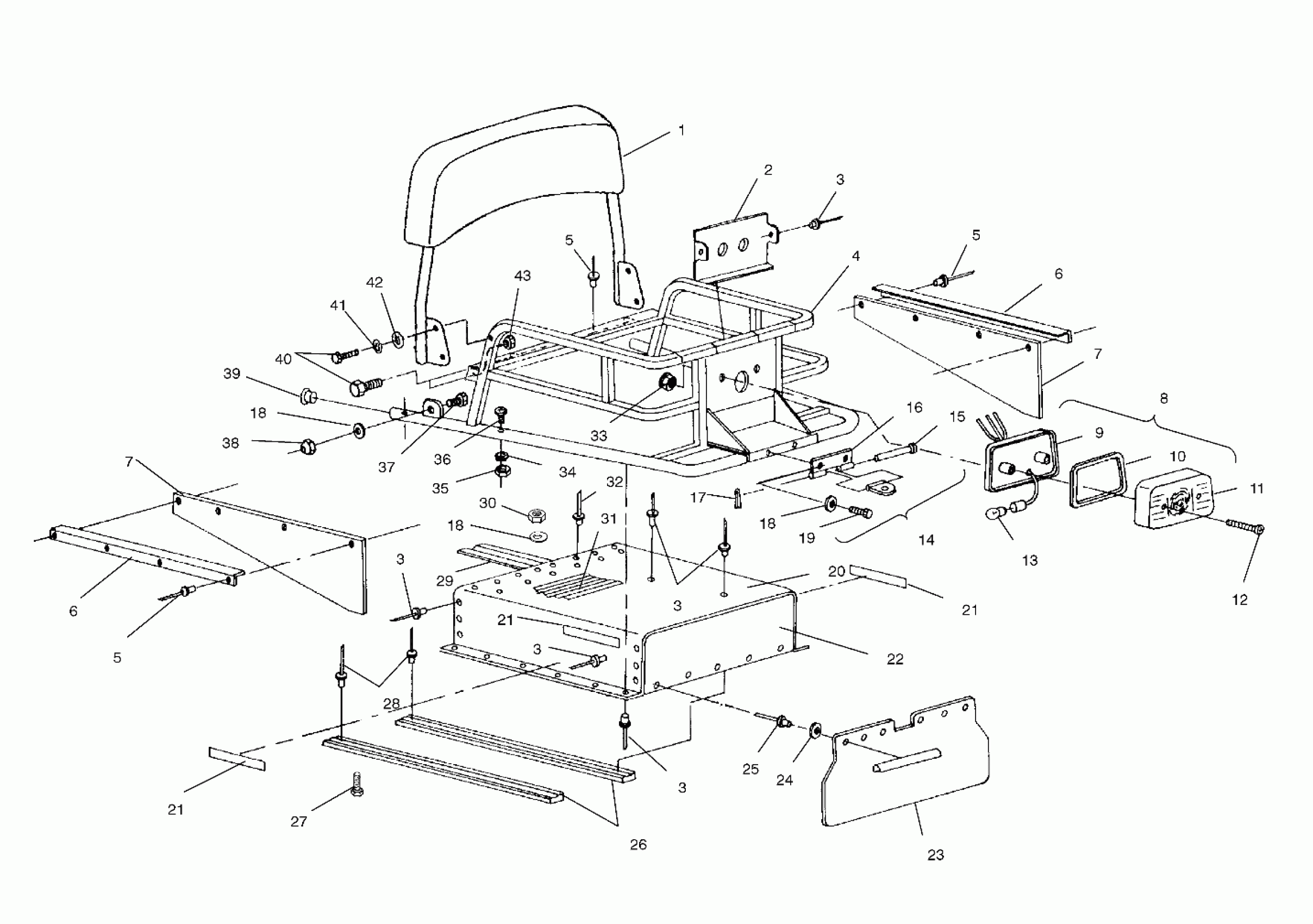

Polaris WIDETRAK LX - S00SU4BS RACK and TUNNEL EXTENSION - S00SU4BS (4953955395a014) Diagram

#

Description
Price

1

COVER,BACKREST

2682143

Unavailable

1

BACKREST ASM. (Incl. 2)

2682144

Unavailable

2

SHIELD,TAILLIGHT

5222868-067

$20.63

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

RACK,BLK,'LX'

1012076-067

$258.99

5

RIVET(50)

7621462

$1.49

5

RIVET(50)

7621462

$1.49

5

RIVET(50)

7621462

$1.49

6

BRKT,SNOW-FLAP

5220497-067

$12.39

6

BRKT,SNOW-FLAP

5220497-067

$12.39

7

SNOW FLAP-SIDE

5810222

Unavailable

7

SNOW FLAP-SIDE

5810222

Unavailable

8

TAILLIGHT ASM. (Incl. 9-13)

2432035

Unavailable

9

BASE&SOCKET,T/L

4032047

Unavailable

10

GASKET,TAILLIGHT

4032045

$4.03

11

LENS,TAILLIGHT

4032046

$32.37

12

Screw, Taillight

4032029

$4.79

13

BULB,T/L,EXT.DUTY

4030063

$24.99

14

HITCH WELD, BLK. Substituted by 2871178

1011624-067

Unavailable

14

HITCHKIT,L.T./STARTRAK (Incl. 15-19)

2870708

Unavailable

15

CLEVIS PIN(10)

7662209

$9.59

16

HITCH WELD,BLK.(U.S.)

1011518-067

$31.75

17

COTTER PIN(10)

7661401

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

SCREW(10)

7512490

$3.99

20

EXTRUSION-TUNNEL REAR,BLK

5240516-067

$81.17

21

REFLECTOR ASM,RED

2670133

$5.75

21

REFLECTOR ASM,RED

2670133

$5.75

21

REFLECTOR ASM,RED

2670133

$5.75

22

PANEL-TUNNEL BACK,W/T,BLK

5240530-067

$45.59

23

FLAP,SNOW(WIDETRAK)

5410553

Unavailable

24

WASHER,(10)

7556044

$3.99

25

POP RIVET(50)

7621418

$1.49

26

STRIP, WEAR, EXT.

5222448

$17.46

27

SCREW(10)

7511930

$2.39

28

RIVET(50)

7621449

$3.19

29

BRKT,HARNESS PROTECTOR

5222323

$24.27

30

NUT FLEX LOC(10)

7541906

$3.19

31

PROTECTOR, BED

5410560

$51.99

32

RIVET(50)

7621429

$1.49

33

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

34

WASHER(10)

7558301

$1.49

35

NUT-LOCK(10)

7542122

$1.49

36

SCREW

7517377

$4.79

37

BOLT(10)

7515522

$3.99

38

NUT(10)

7542458

$9.59

39

PLUG(10)

5430713

Unavailable

40

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

41

LOCK WASHER(10)

7552901

$1.49

42

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

43

NUT-5/16-18 NYLOK-Y

7542324

$1.49
