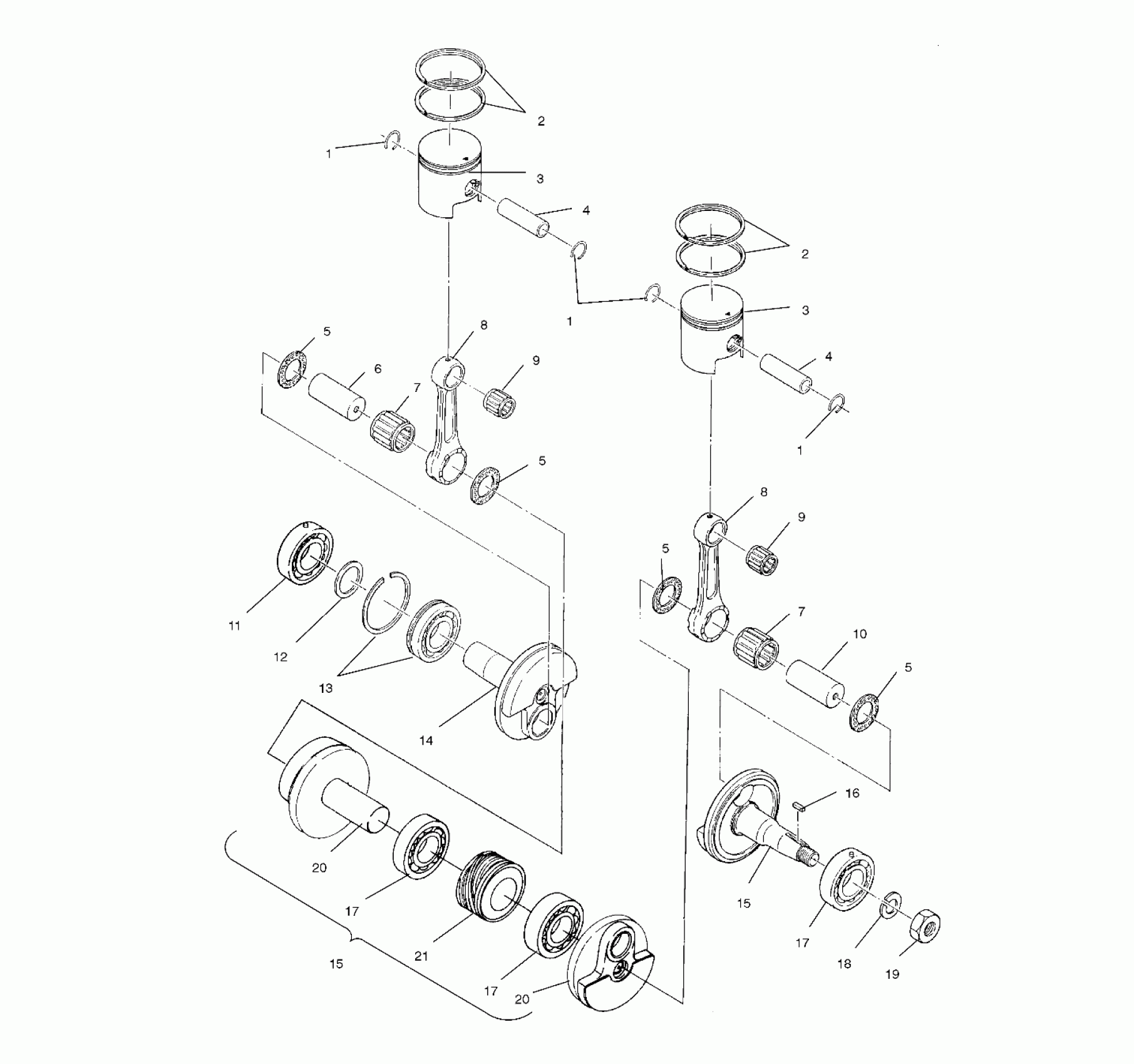

Polaris WIDETRAK LX - S00SU4BS PISTON and CRANKSHAFT - S00SU4BS (4953955395c009) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING,PISTON,STD. (Standard)

3084342

$47.60

2

RING,PISTON,(.010 O/S) (0.25mm/.010"O/S)

3084343

Unavailable

2

RING,PISTON,(.020 O/S) (0.50mm/.020"O/S)

3084344

$66.65

2

RING,PISTON,STD. (Standard)

3084342

$47.60

2

RING,PISTON,(.010 O/S) (0.25mm/.010"O/S)

3084343

Unavailable

2

RING,PISTON,(.020 O/S) (0.50mm/.020"O/S)

3084344

$66.65

3

PISTON (STD) Substituted by 3085458 (Standard)

3085869

$147.60

3

PISTON (0.25 O/S) Substituted by 3085459 (0.25mm/.010"O/S)

3085870

Unavailable

3

PISTON (0.50 O/S) Substituted by 3085460 (0.50mm/.020"O/S)

3085871

Unavailable

3

PISTON (STD) Substituted by 3085458 (Standard)

3085869

$147.60

3

PISTON (0.25 O/S) Substituted by 3085459 (0.25mm/.010"O/S)

3085870

Unavailable

3

PISTON (0.50 O/S) Substituted by 3085460 (0.50mm/.020"O/S)

3085871

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

Pin, Crank, 2

3083456

Unavailable

7

BEARING,LARGE END

3085628

$31.99

7

BEARING,LARGE END

3085628

$31.99

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK

3083233

$36.41

11

BALL BEARING

3085205

Unavailable

12

Spacer

3085203

$6.39

13

BALL BEARING

3085204

Unavailable

14

CRANKSHAFT 3 (PTO Side)

3085202

Unavailable

15

CRANKSHAFT 1(MAG SIDE) (Mag Side)

3086835

$426.99

15

CRANKSHAFT,ASM. (Incl. 5-8,10-15,17,20)

3086834

$1,144.99

15

CRANKSHAFT 1(MAG SIDE) (Mag Side)

3086835

$426.99

15

CRANKSHAFT,ASM. (Incl. 5-8,10-15,17,20)

3086834

$1,144.99

16

KEY Substituted by 3081543

3080130

Unavailable

17

BEARING,BALL

3086878

Unavailable

17

BEARING,BALL

3086878

Unavailable

17

BEARING,BALL

3086878

Unavailable

18

WASHER-SPRING(10)

3083094

$3.17

19

NUT

3083093

$19.99

20

CRANKSHAFT 2 (Center)(Incl. 6,10)

3083713

$583.49

20

CRANKSHAFT 2 (Center)(Incl. 6,10)

3083713

$583.49

21

GEAR,DRIVE,OIL PUMP

3083782

$102.13
