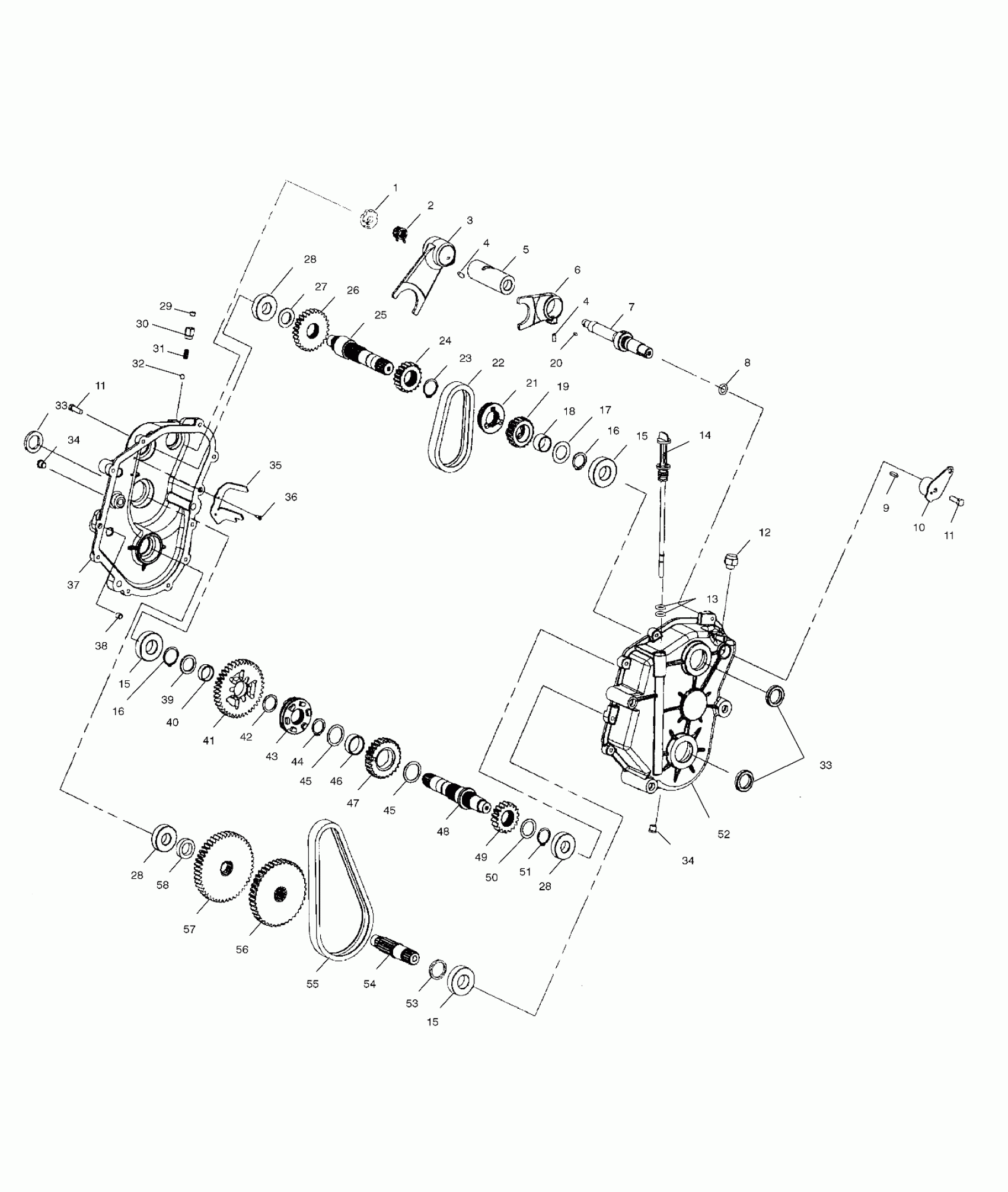

Polaris WIDETRAK LX - S00SU4BS GEARCASE - S00SU4BS (4953955395b009) Diagram

#

Description
Price

-

GEARCASE ASM,W.T.,BASIC,HV (Incl. 1-58)

1341233

Unavailable

-

DESC NOT_AVAILABLE (Incl. 1-58)

1341234

Unavailable

1

INDEX,SHIFT

3233402

$36.47

2

SPRING,TORSION

3233474

$6.63

3

SHIFT FORK,LOW

3233503

$113.32

4

PIN,DOWELL

3233375

$6.59

4

PIN,DOWELL

3233375

$6.59

5

DRUM,SHIFT

3233504

Unavailable

6

SHIFT,FORK,HIGH

3233505

Unavailable

7

SHAFT,SHIFT

3233403

$195.22

8

O RING(10)

5410440

$4.84

9

KEY, (3/16 X 1/4)

3233414

$1.59

10

BELLCRANK,WTD

3233393

$59.03

11

Screw

3233026

$6.46

11

Screw

3233026

$6.46

12

Switch

3233410

$27.99

13

O-RING

5410675

$1.60

14

DIPSTICK Substituted by 1332143

5431419

Unavailable

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

17

WASHER,THRUST

3233468

$16.79

18

BEARING,NEEDLE

3233383

Unavailable

19

SPROCKET,19T,.75W (See Footnote) NOTE: Must order with Ref. 21

3233509

$149.99

20

KEY, (1/8 X 1/4)

3233415

Unavailable

21

DOG,ENGAGE,HIGH (See Footnote) NOTE: Must order with Ref. 19

3233470

$91.99

22

CHAIN,SILENT (.75W 40P)

3233508

Unavailable

23

RING,RETAINING

3233424

Unavailable

24

SPROCKET,19T

3233507

$39.99

25

SHAFT,INPUT

3233506

$227.52

26

GEAR,27T

3233419

$119.99

27

Spacer

3233416

$5.75

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

29

SCREW,SET

3233374

$1.49

30

DETENT,EXTENSION

3233405

$11.43

31

SPRING,SHIFTER DETENT

7041483

$40.46

32

BALL, DETENT

7080310

$5.99

33

SEAL, DUAL LIP

3610134

$49.99

33

SEAL, DUAL LIP

3610134

$49.99

34

PLUG(10)

7052115

$5.65

34

PLUG(10)

7052115

$5.65

35

DEFLECTOR,OIL

3233406

Unavailable

36

SCREW Substituted by 3233747

3233033

Unavailable

37

GEARCASE,RH

3233502

$217.99

38

PIPE, KNOCK

3233021

Unavailable

39

WASHER

3233099

Unavailable

40

BEARING, NEEDLE

3233103

$31.99

41

GEAR,39T

3233511

$134.99

42

Washer

3233105

$7.19

43

DOG,ENGAGEMENT,L/R

3233512

$109.99

44

RING,RETAINING

3233377

$3.19

45

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

45

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

46

BEARING,NEEDLE

3233384

$31.99

47

SPROCKET,25T

3233513

$79.99

48

SHAFT,REVERSE

3233514

$149.99

49

GEAR,18T

3233515

Unavailable

50

Spacer

3233381

Unavailable

51

RING,RETAINING

3233516

$1.49

52

GEARCASE,LH

3233510

Unavailable

53

Spacer

3233418

Unavailable

54

SHAFT,OUTPUT

3233521

$179.99

55

CHAIN,SILENT (.75W 66P)

3233520

Unavailable

56

SPROCKET,41T,15T SPLINE

3233519

$89.03

57

GEAR,47T

3233518

$159.99

58

Spacer

3233517

Unavailable
