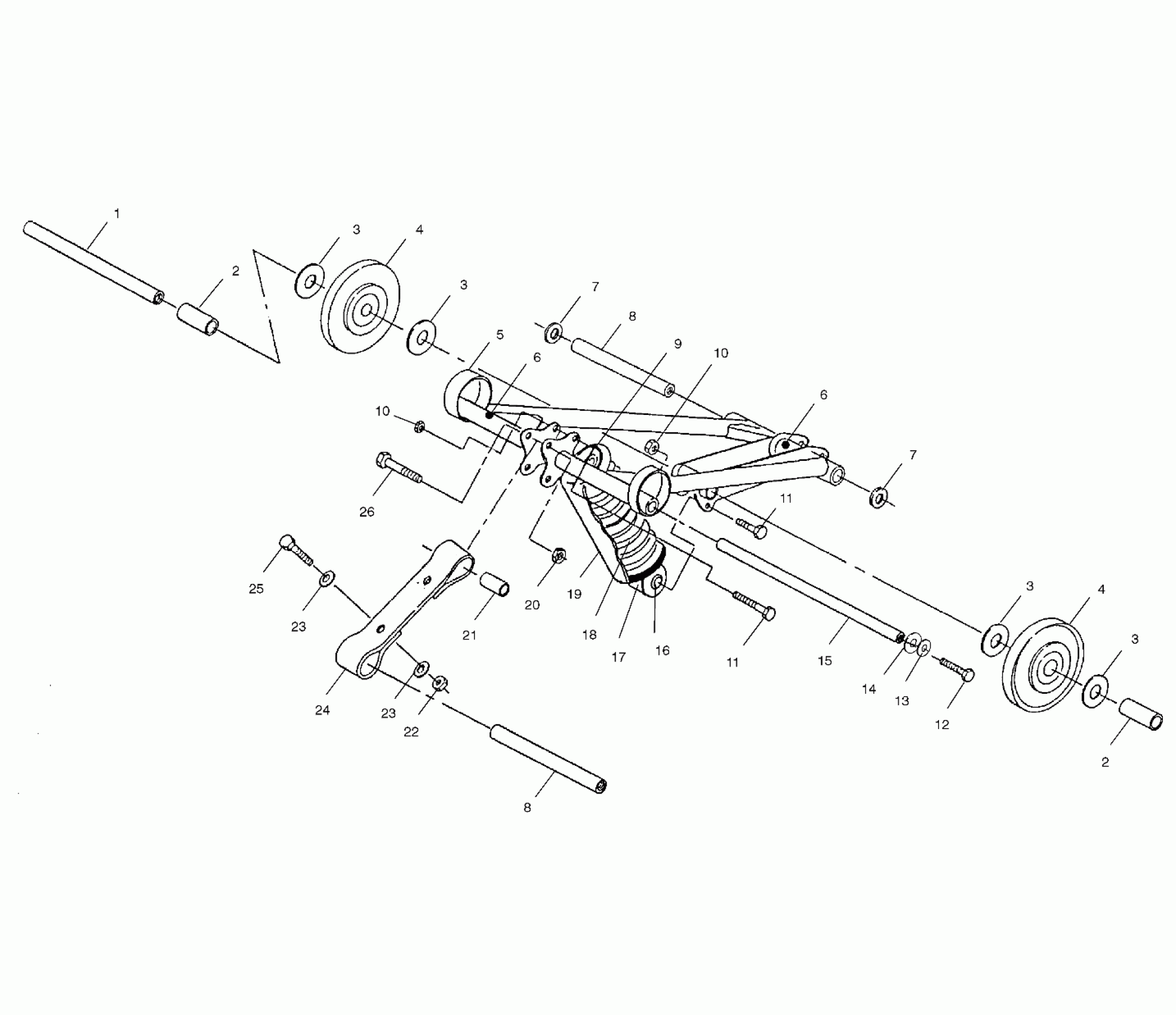

Polaris WIDETRAK LX - S00SU4BS FRONT TORQUE ARM - S00SU4BS (4953955395b004) Diagram

#

Description
Price

1

SHAFT,SPANNER

5020720

$34.99

2

TUBE,OUTER SPACER

5333012

$12.99

2

TUBE,OUTER SPACER

5333012

$12.99

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

4

WHEEL, IDLER

1543018

$56.65

4

WHEEL, IDLER

1543018

$56.65

5

ARM,F.TORQUE,HD,LX,BLK

1541044-067

Unavailable

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

WASHER(10)

7555823

$3.99

7

WASHER(10)

7555823

$3.99

8

SHAFT-PIVOT,.750X13.235

5132239

$74.99

8

SHAFT-PIVOT,.750X13.235

5132239

$74.99

9

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

10

NUT LOCK(10)

7542411

$3.19

10

NUT LOCK(10)

7542411

$3.19

11

BOLT Substituted by 7515491

7515433

$1.59

11

BOLT Substituted by 7515491

7515433

$1.59

12

SCREW,(10)

7517247

$3.19

13

WASHER(10)

7552603

$1.49

14

WASHER(10)

7555893

$1.49

15

Shaft

5020909

$35.99

16

SHOCK,CTR.SUSPENSION

7041742

$214.99

17

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

18

SPRING,FR.TRACK,BLK

7041712-067

$52.60

19

SHIELD-SPRING

5430671

$24.27

20

NUT-LOCK(10)

7542439

$1.49

21

BUSHING,SUSPENSION

5010212

Unavailable

22

NUT,NYLOC,(10)

7542344

$3.99

23

WASHER(10)

7555716

$1.59

23

WASHER(10)

7555716

$1.59

24

STRAP, LIMITER

5410397

Unavailable

25

SCREW ,(10)

7517313

$4.79

26

BOLT(10)

7515438

$4.79
