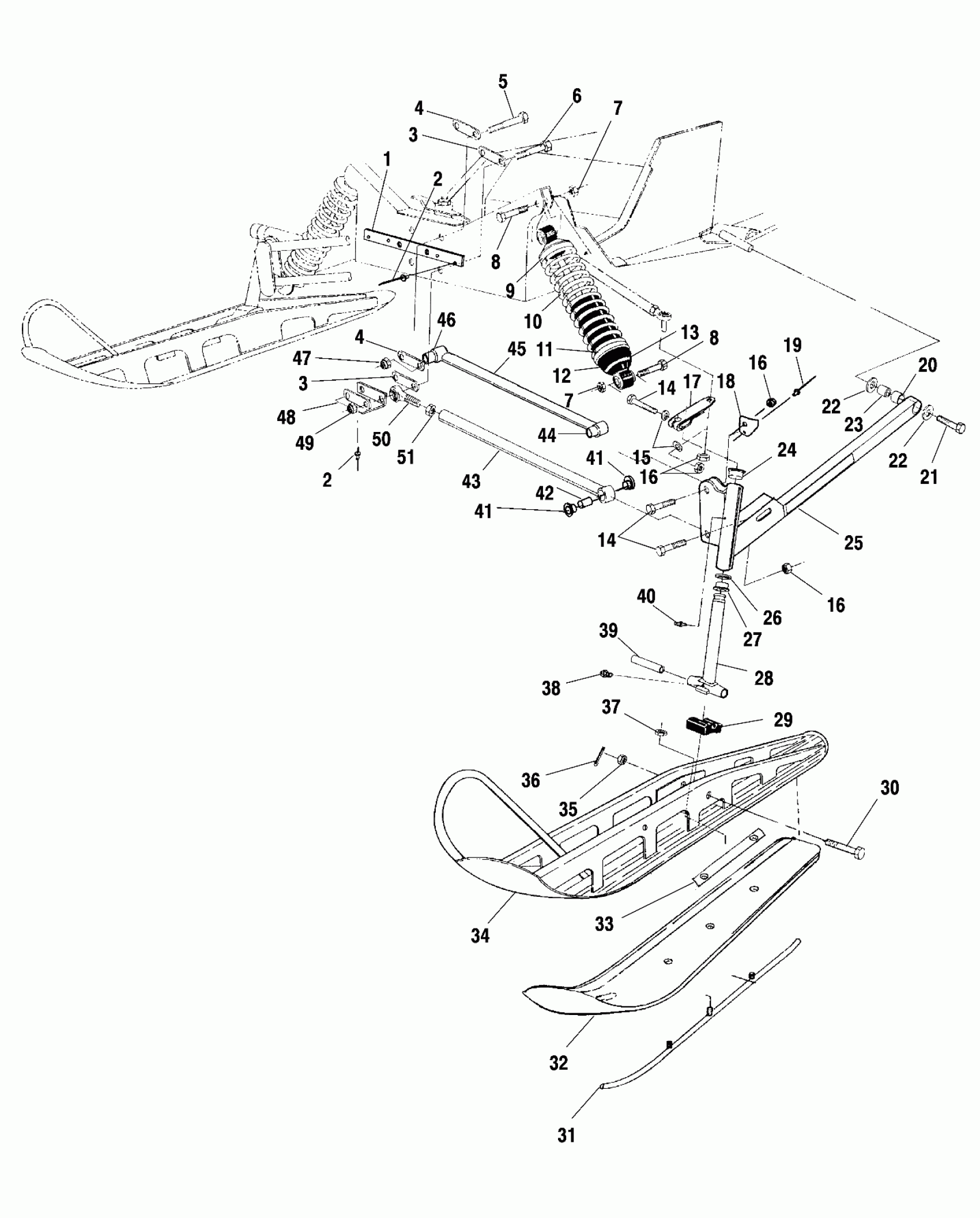

Polaris WIDETRAK LX - S00SU4BS FRONT SUSPENSION and SKI - S00SU4BS (4953955395b001) Diagram

#

Description
Price

1

BRACE,BULKHEAD

5240349-067

$6.63

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

3

STRAP,SPACER BOTTOM

5211345

$12.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER TOP

5211344

$7.27

5

BOLT(10)

7512582

$8.79

6

BOLT(10)

7512678

$19.99

7

NUT-LOCK(10)

7542439

$1.49

8

BOLT(10)

7515415

$1.49

8

BOLT(10)

7515415

$1.49

9

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

10

SPRING,COMPRESSION

7041551-067

$74.99

11

RING,SPRING PRELOAD ADJ.

5431734

$52.60

12

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

13

SHOCK,GAS,IFS

7041543

$179.99

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

15

WSHR-.813X.406X.105-Y

7555832

$2.39

16

NUT LOCK(10)

7542403

$3.99

16

NUT LOCK(10)

7542403

$3.99

16

NUT LOCK(10)

7542403

$3.99

17

Arm, Steering

5220326-067

Unavailable

18

STOP,LH,STRG,BLK.

5241569-067

$7.27

18

STOP,RH,STRG,BLK.

5241570-067

$7.27

19

RIVET(50) Substituted by 7661130

7661643

Unavailable

20

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

21

BOLT(10)

7512557

$7.60

22

WASHER(10)

7555721

$1.49

22

WASHER(10)

7555721

$1.49

23

TUBE, BUSHING

5010310

$9.70

24

BUSHING-FLANGE

3573909

$2.39

25

ARM,TRLG,LH (Incl. 20,23)

1822485

$281.49

25

ARM,TRLG,RH (Incl. 20,23)

1822486

Unavailable

26

WASHER SPECIAL(10)

7556509

$1.59

27

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

28

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

29

Stop, Rubber

5411083

$12.94

30

BOLT(10)

7515462

$8.79

31

60 DEG,4"CARBIDE(STEEL SKI)

2871288

$79.99

32

SKIN,SKI, WIDE, BLK Substituted by 2871354-070

5432153-070

Unavailable

33

SHIM,SKI SKIN

5433795

$13.99

34

SKI WELD

1820430-067

Unavailable

35

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

36

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

37

NUT-5/16-18 NYLOK-Y

7542324

$1.49

38

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

39

BUSHING,PIVOT,(10)

5010158

$19.99

40

ZERK,FITTING,THREADED(10)

7080433

$1.49

41

BUSHING-RADIUS ROD,(10)

5010127

$7.99

41

BUSHING-RADIUS ROD,(10)

5010127

$7.99

42

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

43

ROD,RAD,LOWER,BLK

1822444-067

$60.70

44

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

45

ROD,RAD,UP.,FIXED (Incl. 44,46)

1822420

$119.99

46

BUSHING,PIVOT,7/16

5411095

$15.99

47

NUT, LOCK,(10)

7542503

$10.39

48

BRKT,RAD.ROD,BTM.

5242578

$44.99

49

NUT FLEX,(10)

7542703

Unavailable

50

ROD END,1/2 LINED Substituted by 7061071

7061011

$48.56

51

NUT-JAM(10)

7542711

$2.39
