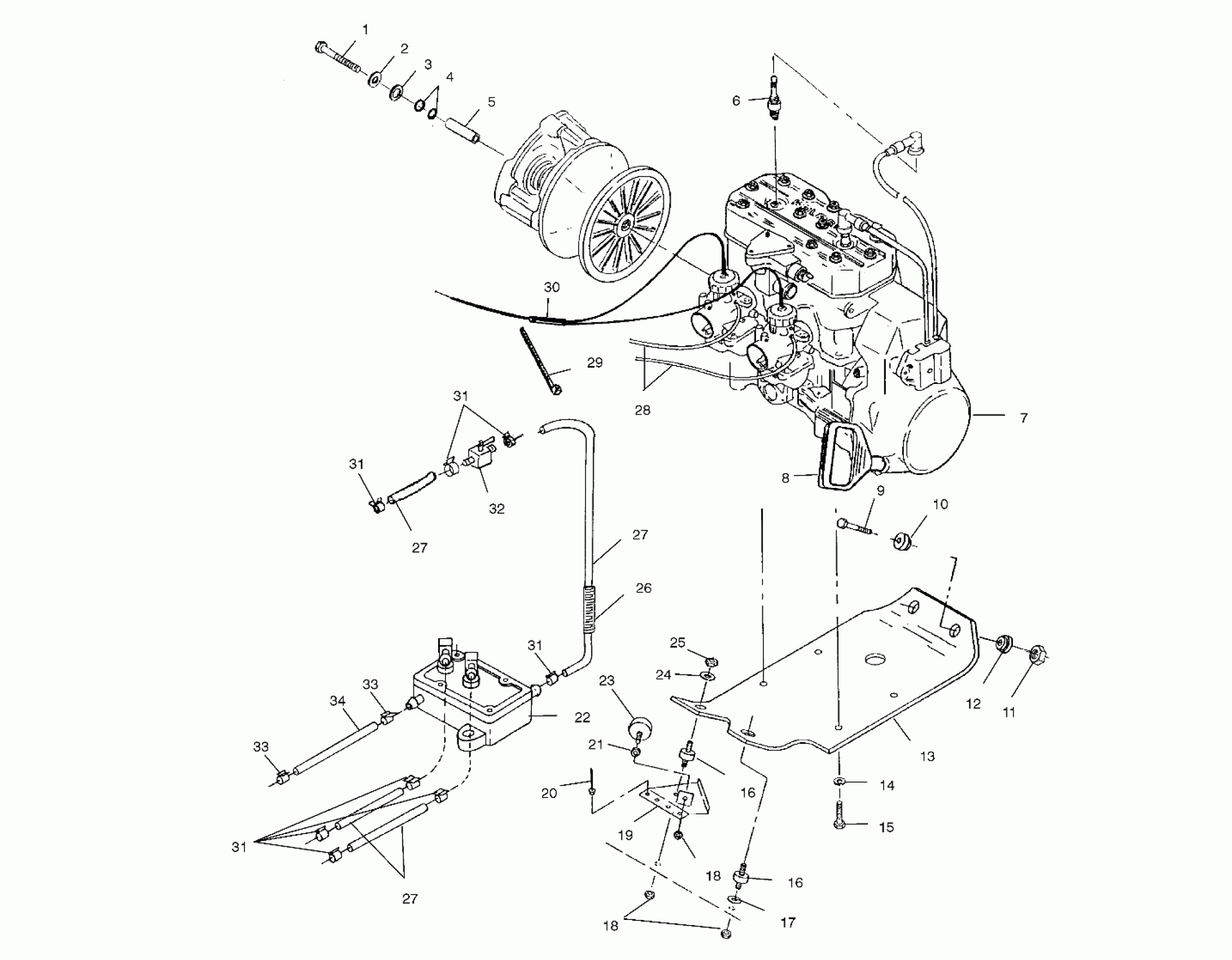

Polaris WIDETRAK LX - S00SU4BS ENGINE MOUNTING - S00SU4BS (4953955395c006) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG, RN3C(8)

3070166

$3.99

7

ENGINE-EC50PL230,SB (EC50PL230) (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head asm., and a piston & crankshaft asm. Prior authorization re

3086509

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

SCREW(10)

7512530

$5.59

10

MOUNT-ENGINE RUBBER,TOP

5411685

$24.27

11

NUT,FLANGE(10)

7542522

$5.59

12

MOUNT-ENGINE RUBBER,BOTTOM

5411686

$28.32

13

PLATE,MOTOR MT.

5242496

$125.46

14

WASHER LOCK(10)

7553101

$3.99

15

BOLT(10)

7512539

$3.99

16

MOUNT,ENG.

3110061

$84.99

16

MOUNT,ENG.

3110061

$84.99

17

WASHER,FLAT(10)

7555915

$3.19

18

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

18

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

19

LIMITER,TORQUE,BLK.

1012048-067

$38.71

20

RIVET-3/16-.090-.290

7661637

$1.49

21

NUT,HEX(10)

7542414

$4.79

22

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C11, Ref. 2)

-------

Unavailable

23

STOP,TORQUE,COARSE,1.94 DIA

3110063

$29.99

24

WASHER(10)

7555893

$1.49

25

NUT,FLEXLOCK,(10)

7547008

$6.39

26

DESC NOT_AVAILABLE

8360052-15

Unavailable

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

CABLE,THROTTLE,W/OIL

7080554

$64.75

31

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

31

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

31

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

31

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

32

VALVE,FUEL SHUT-OFF

7052060

Unavailable

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

34

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable
