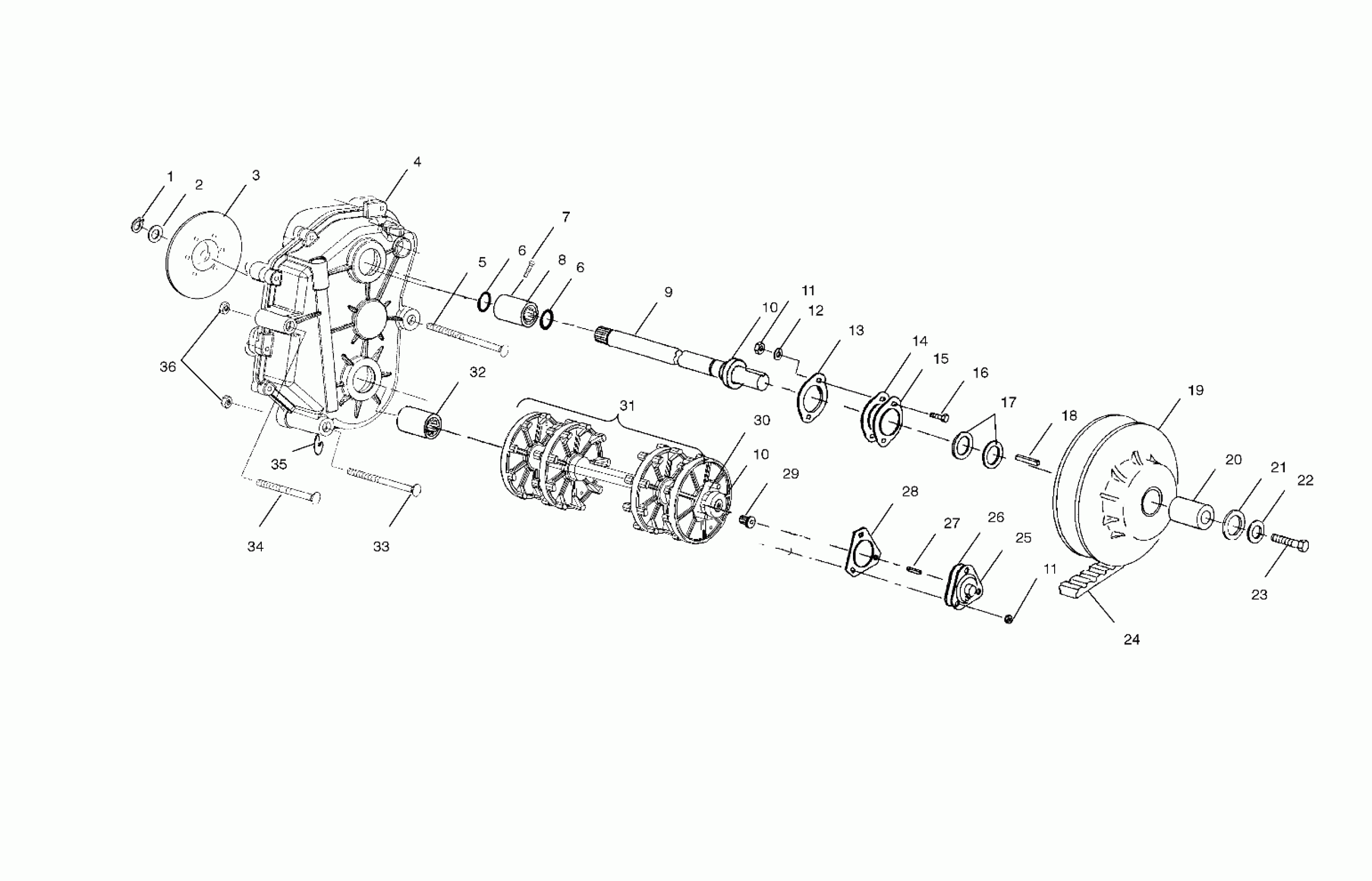

Polaris WIDETRAK LX - S00SU4BS DRIVESHAFT - S00SU4BS (4953955395b012) Diagram

#

Description
Price

1

RING,RETAINING(10) Substituted by 7710436

7713401

Unavailable

2

BUSHING,MACH.,(10)

7555922

$6.39

3

DISC,BRAKE ASM.

1910217

Unavailable

4

Asm., Gearcase (See Footnote) (See Gearcase Pg. B10 for Details)

-------

Unavailable

5

BOLT

7517291

$15.99

6

O-Ring

5410630

$2.02

6

O-Ring

5410630

$2.02

7

SCREW,(10)

7517446

$8.79

8

ZERK, GREASE(10)

7080437

$14.21

8

COUPLER ASM,19T,W/GREASE,LONG (Incl. Fitting & Screw)

1332219

$113.32

9

JACKSHAFT ASM,19T,W/BRG,W.T. Substituted by 1332256 (Incl. 10)

1332218

$474.99

10

BEARING

3514525

$31.99

10

BEARING

3514525

$31.99

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

FLANGETTE, (2-BOLT)

5222393

Unavailable

14

GASKET,JACKSHAFT,2-BOLT

5830135

$2.83

15

FLANGETTE,(GREASABLE)

5222647

$24.27

16

BOLT(10)

7512377

$4.79

17

WASHER SPECIAL(10)

7556509

$1.59

18

KEY-SQUARE(10)

7721204

$3.19

19

Asm., Driven Clutch (See Footnote) (See Driven Clutch Pg. B14, Ref. 14)

-------

Unavailable

20

SPACER,INLET SHAFT

5431482

$24.79

21

WASHER(10)

7555806

$1.49

22

WASHER, SPRING(10)

7571626

Unavailable

23

BOLT(10)

7515502

$5.59

24

BELT,DRIVE,28 DEG.(5)

3211070

$114.99

25

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

26

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

27

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

28

FLANGETTE Substituted by 5243529

5241178

$13.75

29

BUSHING METAL SPEEDO

3280019

$11.99

30

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

31

DRIVESHAFT,PRS BRG,WIDE Substituted by 1590338 (Incl.29-31)

1590285

$605.14

32

COUPLER ASM,19T,W/GREASE ZERK Substituted by 1332260

1332198

$198.48

33

BOLT

7517292

$19.99

34

BOLT(10)

7515474

$3.33

35

SPACER,(10) (.080)

5210760

Unavailable

35

SPACER,(10) (.063)

5210759

Unavailable

35

SPACER,(10) (.020)

5210764

Unavailable

35

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

36

NUT(10)

7542423

$3.99
