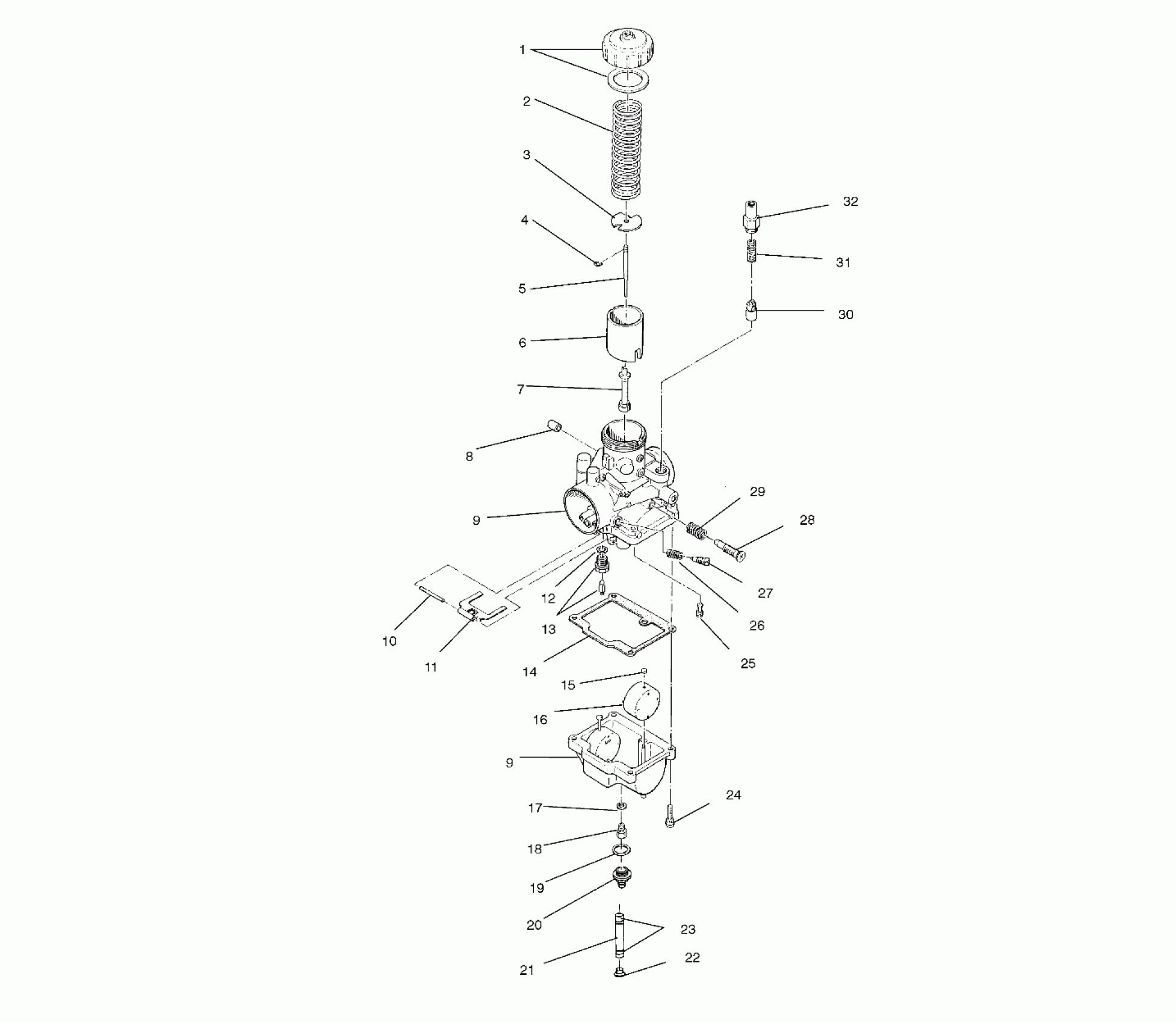

Polaris WIDETRAK LX - S00SU4BS CARBURETOR - S00SU4BS (4953955395c012) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

E-RING,(10)

3130508

$6.46

5

NEEDLE,JET,(6EJ26) (6EJ26-2)

3130423

$20.22

6

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

7

JET NEEDLE (166)

3130160

$36.41

8

CAP

3130479

$14.56

9

CARBURETOR (Incl. 1-20,24-32)

3130711

$503.48

9

CARBURETOR (Incl. 1-20,24-32)

3130711

$503.48

10

PIN, FLOAT

3130361

$8.89

11

ARM,FLOAT

3130018

$24.27

12

PACKING(10)

3130017

$4.03

13

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

14

PACKING,FLOAT CHAMBER

3130020

$16.17

15

CAP,(10)

3130237

$4.03

16

FLOAT ASM.

3130430

$43.56

17

WASHER (10)

3130014

$1.59

18

JET,MAIN,HX.HD.#195(10) (#195)

3130122

$6.46

19

O RING

3130239

Unavailable

20

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

21

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

22

PLUG,TRAP

5431893

$12.94

23

HOSE CLAMP, RED

7080003

$1.49

24

SCREW & WASHER(10)

3130025

$3.19

25

JET,PILOT,#35(10) (#35)

3130066

$8.89

26

SPRING,AIR ADJUST

3130012

$8.89

27

SCREW,AIR

3130011

$19.99

28

SCREW,THROTTLE STOP

3130009

$19.99

29

SPRING,THROTTLE ADJ.

3130010

$8.89

30

PLUNGER ASM, STARTER

3130328

$32.37

31

SPRING,PLUNGER

3130006

$8.89

32

HOLDER,GUIDE

3130199

$28.32
