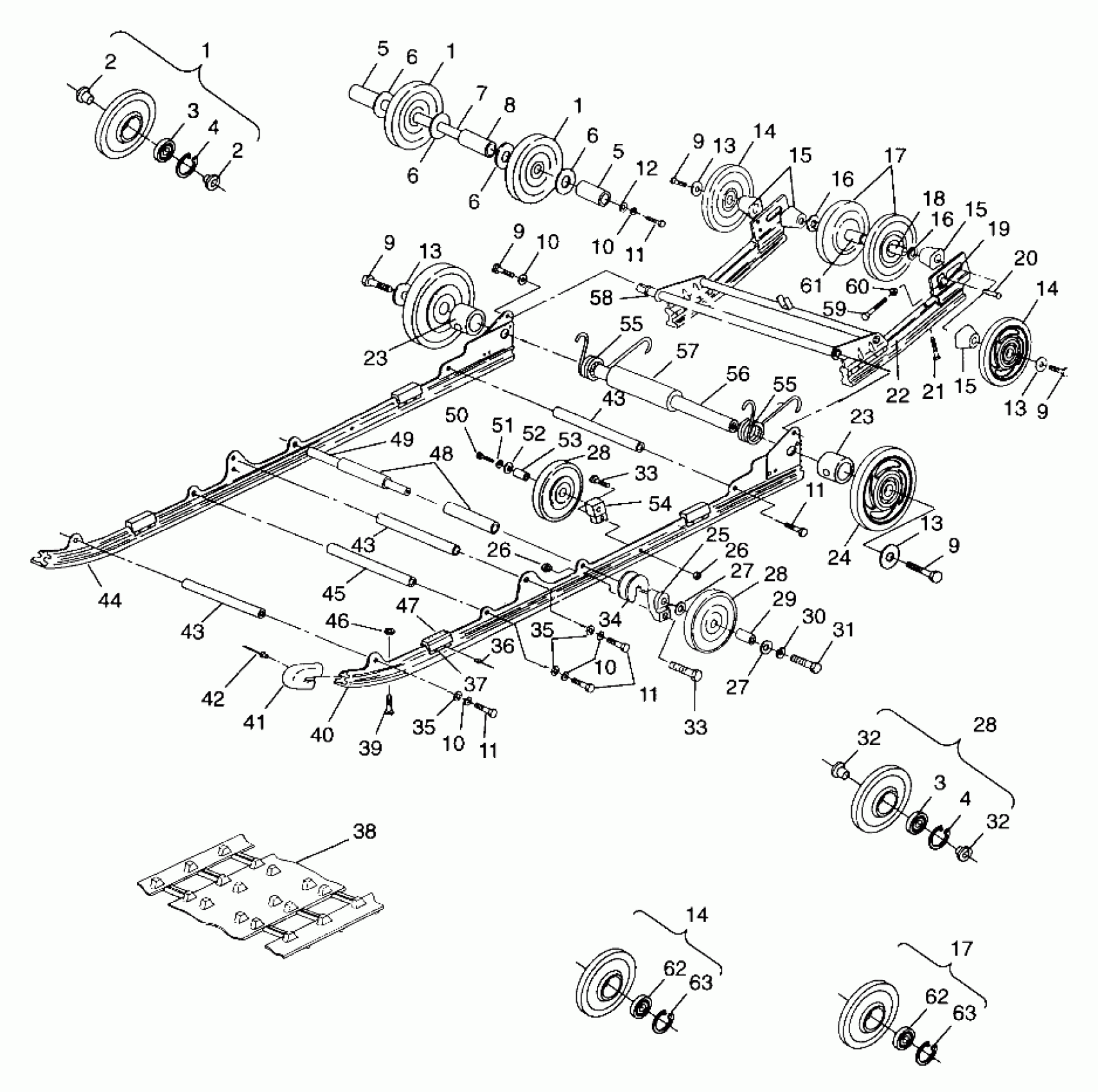

Polaris WIDETRAK LX - 099SU4BS SUSPENSION - 099SU4BS (4948324832b007) Diagram

#

Description
Price

1

WHEEL, CARRIER (Incl. 2,3,4)

1543021

Unavailable

1

WHEEL, CARRIER (Incl. 2,3,4)

1543021

Unavailable

1

WHEEL, CARRIER (Incl. 2,3,4)

1543021

Unavailable

2

INSERTS, WHEEL (Set)

5430723

$3.99

2

INSERTS, WHEEL (Set)

5430723

$3.99

3

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

3

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

SPACER, OUTER

5333019-067

$15.99

5

SPACER, OUTER

5333019-067

$15.99

6

WASHER(10)

7555726

$1.59

6

WASHER(10)

7555726

$1.59

6

WASHER(10)

7555726

$1.59

6

WASHER(10)

7555726

$1.59

7

SHAFT,MTG.

5020836

$32.37

8

SPACER,BLK,IN.CARRIER

5333020-067

$24.99

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

10

WASHER(10)

7552603

$1.49

10

WASHER(10)

7552603

$1.49

10

WASHER(10)

7552603

$1.49

10

WASHER(10)

7552603

$1.49

11

SCREW,(10)

7517247

$3.19

11

SCREW,(10)

7517247

$3.19

11

SCREW,(10)

7517247

$3.19

11

SCREW,(10)

7517247

$3.19

12

WASHER(10)

7555893

$1.49

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

13

WASHER(10) Substituted by 7556130

7571629

Unavailable

14

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

14

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

14

WHEEL,IDLER,SCRL.GLD.MET.

1594083-227

$72.84

15

SPACER-IDLER

5432535

$11.99

15

SPACER-IDLER

5432535

$11.99

15

SPACER-IDLER

5432535

$11.99

16

BUSHING(10)

7555918

$1.59

16

BUSHING(10)

7555918

$1.59

17

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

17

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

18

SHAFT,IDLER

5020879

$43.99

19

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

20

RIVET,(50)

7621501

$2.39

21

SCREW(10)

7512225

$3.99

22

SLIDER,WHI.,(2)

5521452

$40.46

22

RAIL ASM,SWINGARM,RIVETED (Incl. 19,20)

1541133

Unavailable

23

TUBESPACER,CTR,OUTSIDE

5330171-067

$16.99

23

TUBESPACER,CTR,OUTSIDE

5330171-067

$16.99

24

WHEEL,IDLER,SCRL.NEW.GLD.

1590276-227

$48.56

25

SPACER

5630399

$11.99

26

NUT-LOCK(10)

7542439

$1.49

26

NUT-LOCK(10)

7542439

$1.49

27

WASHER, FLAT(10)

7555852

$2.39

27

WASHER, FLAT(10)

7555852

$2.39

28

WHEEL, IDLER (Incl. 3,4,32)

1543018

$56.65

28

WHEEL, IDLER (Incl. 3,4,32)

1543018

$56.65

28

WHEEL, IDLER (Incl. 3,4,32)

1543018

$56.65

29

SPACER, WHEEL

5333116

$7.99

30

WASHER LOCK(10)

7553101

$3.99

31

BOLT(10)

7512538

$6.39

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

33

BOLT(10)

7512404

$3.99

33

BOLT(10)

7512404

$3.99

34

ROLLER, SPRING

5431366

$10.51

35

WASHER(10)

7555806

$1.49

35

WASHER(10)

7555806

$1.49

36

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

37

REINF., BUMPER

5222629

$13.75

38

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

38

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

38

TRACK,20"X156"X1.0" Substituted by 5411682

5411395

Unavailable

39

SCREW(10)

7512227

$3.19

40

SLIDER,WHI.,(2)

5521452

$40.46

40

RAIL ASM,LH,(W'TRAK) (Incl. 37,41,47)

1540751

$419.99

41

COVER-RAIL TIP

5430627

$32.37

42

RIVET(50)

7621435

$1.49

43

SHAFT,PIVOT ARM,FRT.

5020718

Unavailable

43

SHAFT,PIVOT ARM,FRT.

5020718

Unavailable

43

SHAFT,PIVOT ARM,FRT.

5020718

Unavailable

44

SLIDER,WHI.,(2)

5521452

$40.46

44

RAIL ASM,RH,(W'TRAK) (Incl. 37,41,47)

1540752

$419.99

45

SHAFT,SPANNER

5020720

$34.99

46

NUT-LOCK(10)

7542122

$1.49

47

BUMPER, RAIL

5810554

$7.27

48

SPACER,R.SHOCK

5333138

$39.99

49

SHAFT,REAR SHOCK Substituted by 5020719

5020651

Unavailable

50

BOLT(10)

7512659

$7.99

51

LOCK WASHER(10)

7553201

$3.99

52

WASHER(10)

7555804

$3.99

53

SPACER

5332786

$7.99

54

BRACKET,BOGIE WHEEL

5130570

$48.56

55

SPRING,R.EXT,BLK.

7041231-067

$59.99

55

SPRING,R.EXT,BLK.

7041231-067

$59.99

56

SHAFT,IDLER

5020726

$39.99

57

TUBE,CTR.IDLER,BLK.

5333014-067

$39.99

58

SHAFT,PIVOT ARM

5020725

$34.99

59

BOLT(10)

7515459

$5.59

60

NUT(10)

7542404

$1.59

61

SPACER,IDLER

5333523

$11.99

62

Bearing

3514012

Unavailable

62

Bearing

3514012

Unavailable

63

RING-RETAINING

7710444

$8.79

63

RING-RETAINING

7710444

$8.79
