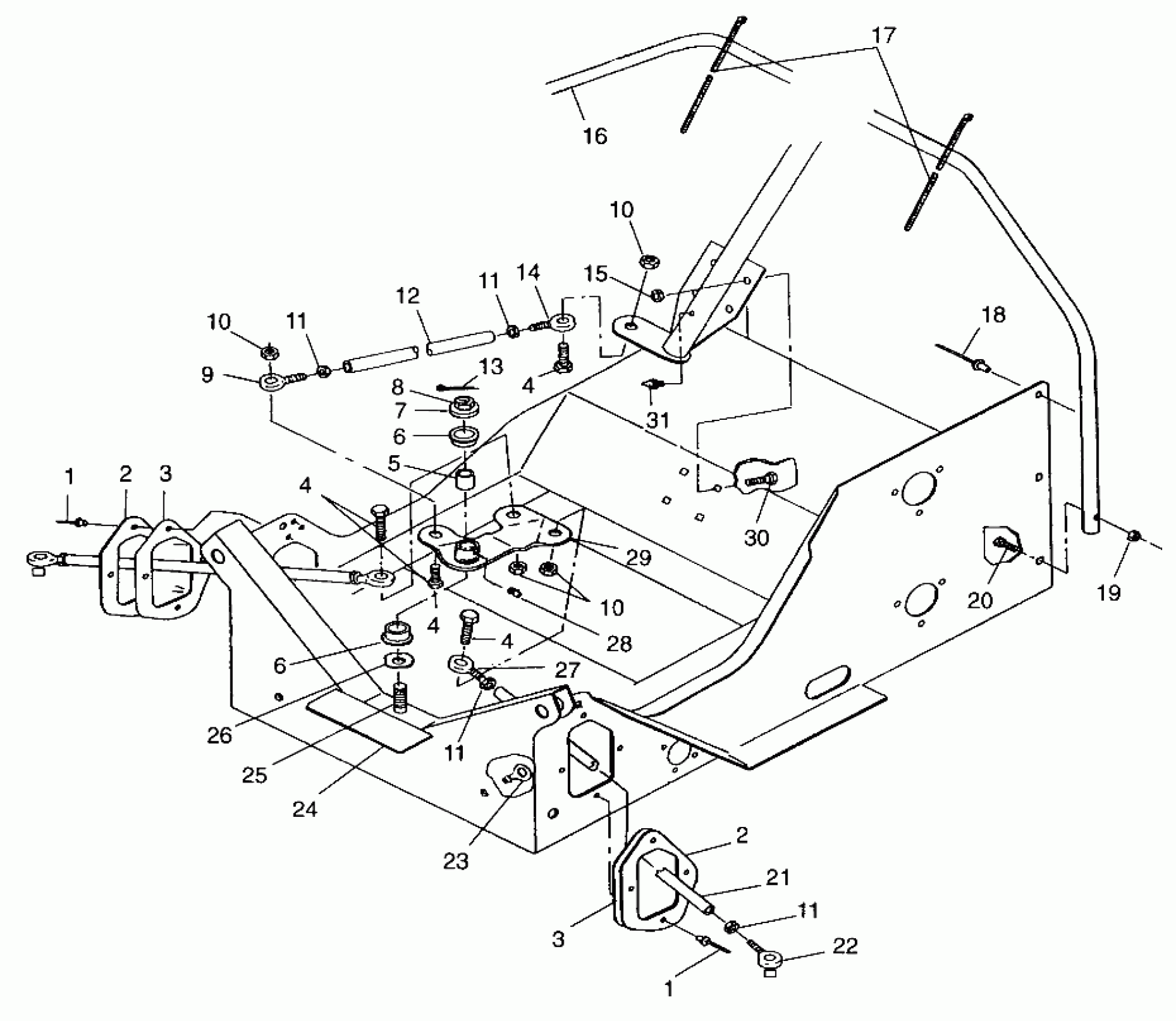

Polaris WIDETRAK LX - 099SU4BS STEERING - 099SU4BS (4948324832b003) Diagram

#

Description
Price

1

POP RIVET(50)

7621323

$1.49

1

POP RIVET(50)

7621323

$1.49

2

PLATE,BOOTSEAL,BLK.

5222942-067

$9.70

2

PLATE,BOOTSEAL,BLK.

5222942-067

$9.70

3

BOOT,TIEROD

5410761

$12.94

3

BOOT,TIEROD

5410761

$12.94

4

BOLT(10)

7512404

$3.99

4

BOLT(10)

7512404

$3.99

4

BOLT(10)

7512404

$3.99

4

BOLT(10)

7512404

$3.99

5

BUSHING

5010463

$9.70

6

BUSHING

3563907

$3.99

6

BUSHING

3563907

$3.99

7

WASHER(10)

7555721

$1.49

8

NUT FLEX,(10)

7542703

Unavailable

9

ROD END,LH

7060166

$48.56

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

11

NUT HEX(10)

7542401

$2.39

11

NUT

7542424

$1.49

12

ROD-DRAG LINK

5332712

Unavailable

13

PIN COTTER(10)

7661203

$1.49

14

ROD END,RH

7060167

$48.56

15

NUT FLEX-LOC(10)

7542303

$6.39

16

WELD-STEER HOOP,BLK

1012729-067

$109.27

17

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

18

RIVET-3/16-.090-.290

7661637

$1.49

19

NUT, LOCK(10)

7542103

$5.59

20

BOLT-CARRIAGE(10)

7512275

$3.99

21

ROD,TIE,BLK

5020878-067

Unavailable

22

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

23

CLIP, PLASTIC(10)

4020139

$4.79

24

BLOCK,STRG,(CAST)

5630563

$32.37

25

BOLT(10)

7512682

Unavailable

26

WASHER,WAVE(10)

7555735

$3.99

27

ROD END, LH.

7060164

$48.56

28

ZERK,FITTING,THREADED(10)

7080433

$1.49

29

STRG.ASM,CTR. (Incl. 6,28)

1822217

$56.65

30

BOLT,(10)

7517428

$2.39

31

FITTING,LUB/VEN(10)

7080561

$4.79
