Description

Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511246

$44.51

2

SEAT ASM,WT.2-UP (Incl. 7)

2681976

Unavailable

2

COVER,SEAT,WT.2-UP

2682102

Unavailable

3

SCREW(10)

7511989

Unavailable

4

WASHER(10)

7558203

$3.19

5

Pull, Seat

5810464

$12.30

6

TEENUT(10)

7541930

$2.06

7

Hinge, Flat (See Tunnel Pg. A5, Ref. 33)

-------

Unavailable

8

SCREW(10)

7511990

Unavailable

9

PAD,SEAT,BOTTOM

5811339

$35.51

10

TANK,FUEL(WIDETRAK) Substituted by 2511186

5431143

Unavailable

11

SEATBELT ASM,(W'TRAK) (Incl. 13)

2690086

Unavailable

12

RIVET, BLIND(50)

7621467

$1.49

13

Footman Loop (See Footnote) (Supplied w/Strap) (See Ref. 11)

-------

Unavailable

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

15

FUELPICKUP,W/STRAINER

7052037

$12.94

16

RING, COMPRESSION(10)

7080402

$1.60

17

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

18

FUELLINE,3MMX7MM

8450061-600

Unavailable

19

FITTING,90 DEG,1/8,(10)

7052095

$4.79

20

FITTING - OUTLET(10)

7052023

$24.99

21

HOSE CLAMP, RED

7080003

$1.49

22

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

23

SPRING,TANK,(10)

7042020

$13.75

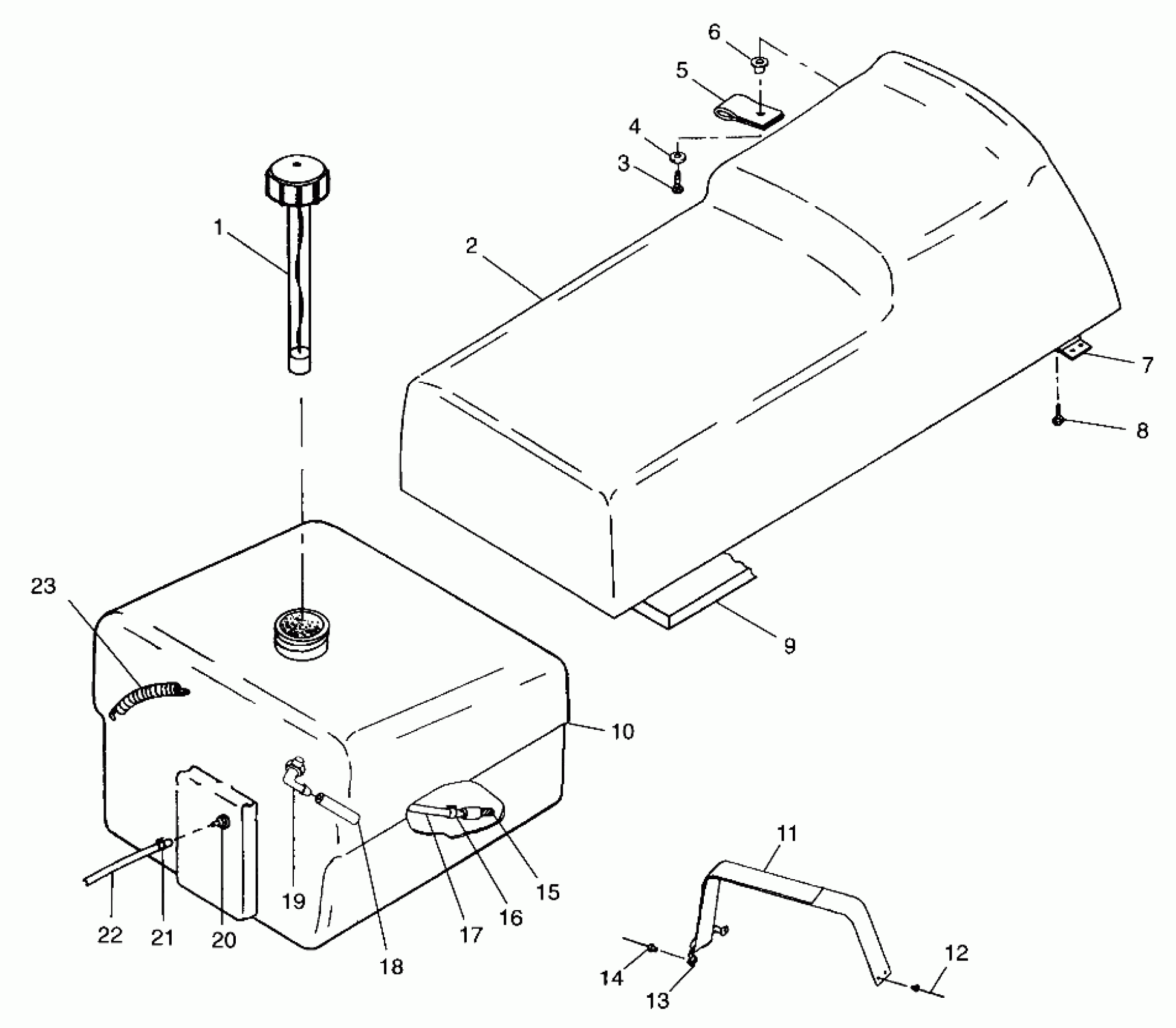

Polaris WIDETRAK LX - 099SU4BS SEAT and GAS TANK - 099SU4BS (4948324832a006) Diagram

GASKET, GAS CAP

CAP,GAS,W/GAUGE

SEAT ASM,WT.2-UP (Incl. 7)

COVER,SEAT,WT.2-UP

SCREW(10)

WASHER(10)

Pull, Seat

TEENUT(10)

Hinge, Flat (See Tunnel Pg. A5, Ref. 33)

SCREW(10)

PAD,SEAT,BOTTOM

TANK,FUEL(WIDETRAK) Substituted by 2511186

SEATBELT ASM,(W'TRAK) (Incl. 13)

RIVET, BLIND(50)

Footman Loop (See Footnote) (Supplied w/Strap) (See Ref. 11)

RIVET,INTERLOCK,B(50)

FUELPICKUP,W/STRAINER

RING, COMPRESSION(10)

FUEL LINE,1/4 ID(1525 CM.)

FUELLINE,3MMX7MM

FITTING,90 DEG,1/8,(10)

FITTING - OUTLET(10)

HOSE CLAMP, RED

FUEL LINE,1/4 ID(600 CM.)

SPRING,TANK,(10)
