Description

Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5020909

$35.99

5

SPRING,RH,R.SUSP,BLK.

7041240-067

$94.99

6

SPACER, SPRING

5521277

$23.99

6

SPACER, SPRING

5521277

$23.99

7

NUT FLEX LOC,(10)

7542402

$6.39

7

NUT FLEX LOC,(10)

7542402

$6.39

8

ARM,R.TORQUE,BLK.

1540761-067

Unavailable

9

TUBE,SPACER,R.TORQUE

5010305

$15.67

10

BOLT(10)

7515317

$4.79

11

NUT, SHOULDER(10)

7542326

$19.99

12

NUT LOCK(10)

7542302

$3.99

13

SPRING,LH,R.SUSP,BLK.

7041239-067

$130.70

14

BOLT-EYE, SPRING ADJ.(10)

7080221

$9.59

14

BOLT-EYE, SPRING ADJ.(10)

7080221

$9.59

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

16

Shaft, Front Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref. 43)

-------

Unavailable

17

ARM,R.PIVOT,BLK.

1540652-067

$74.99

18

BOLT(10)

7512329

$3.99

19

SPACER

5332631

$6.39

20

RETAINER-TOP

5220225

$10.39

21

SPRING,COMP.,BLK.

7041261-067

$164.99

22

SLEEVE,SPRING PROTECTOR

5431032

$31.99

23

CAM,ADJUSTING SPRING

5630334

$32.37

24

SHOCK,REAR TRACK

7041738

$319.99

25

NUT-5/16-18 NYLOK-Y

7542324

$1.49

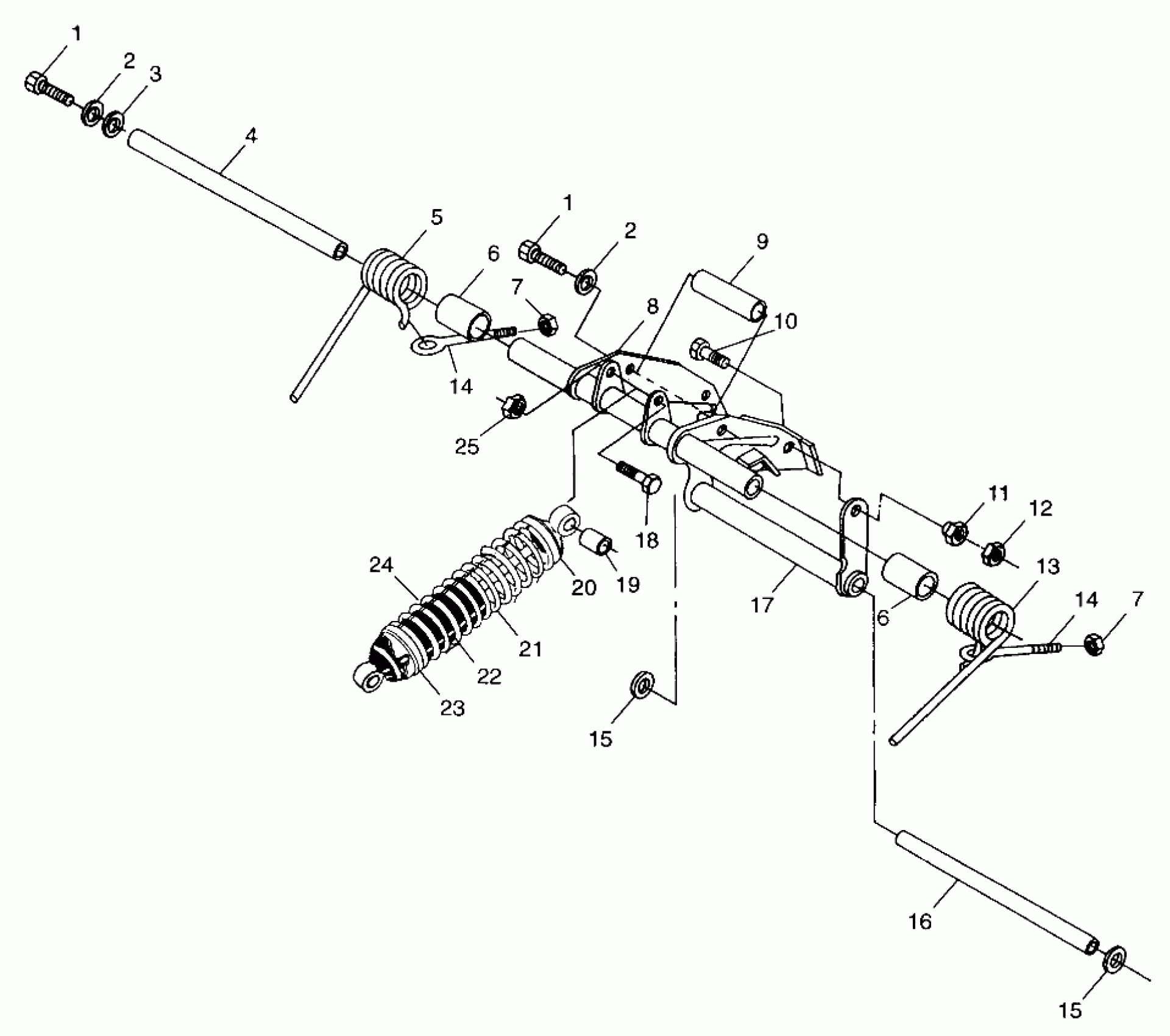

Polaris WIDETRAK LX - 099SU4BS REAR TORQUE ARM - 099SU4BS (4948324832b005) Diagram

SCREW,(10)

SCREW,(10)

WASHER(10)

WASHER(10)

WASHER(10)

Shaft

SPRING,RH,R.SUSP,BLK.

SPACER, SPRING

SPACER, SPRING

NUT FLEX LOC,(10)

NUT FLEX LOC,(10)

ARM,R.TORQUE,BLK.

TUBE,SPACER,R.TORQUE

BOLT(10)

NUT, SHOULDER(10)

NUT LOCK(10)

SPRING,LH,R.SUSP,BLK.

BOLT-EYE, SPRING ADJ.(10)

BOLT-EYE, SPRING ADJ.(10)

MACHINERY BUSHING(10)

MACHINERY BUSHING(10)

Shaft, Front Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref. 43)

ARM,R.PIVOT,BLK.

BOLT(10)

SPACER

RETAINER-TOP

SPRING,COMP.,BLK.

SLEEVE,SPRING PROTECTOR

CAM,ADJUSTING SPRING

SHOCK,REAR TRACK

NUT-5/16-18 NYLOK-Y
