- WIDETRAK LX - 099SU4BS
RACK and TUNNEL EXTENSION - 099SU4BS (4948324832a014)

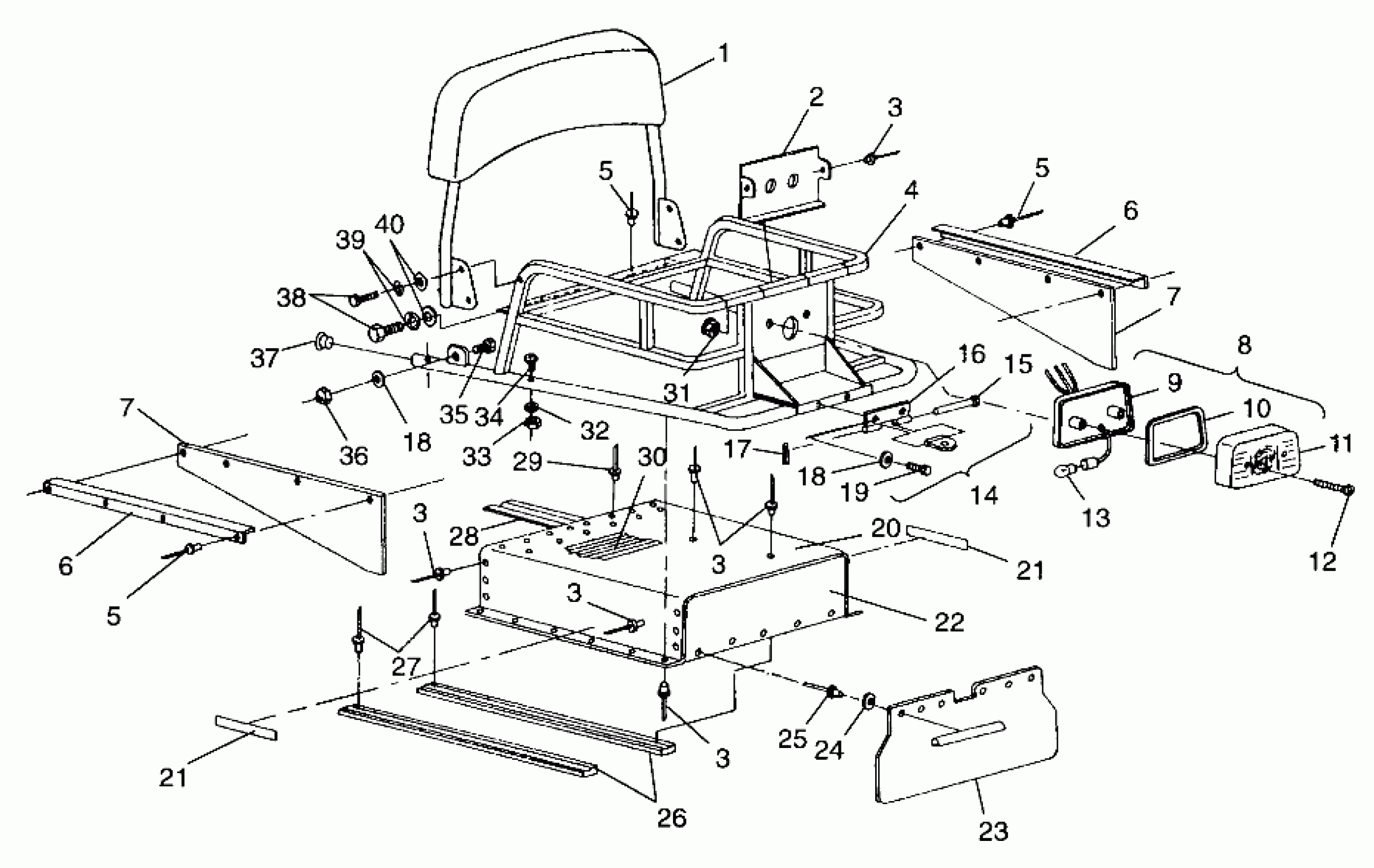

Polaris WIDETRAK LX - 099SU4BS RACK and TUNNEL EXTENSION - 099SU4BS (4948324832a014) Diagram
#
1
COVER,BACKREST
2682143
Unavailable
1
BACKREST ASM. (Incl. 2)
2682144
Unavailable
2
SHIELD,TAILLIGHT
5222868-067
$20.63
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RACK,BLK,'LX'
1012076-067
$258.99
5
RIVET(50)
7621462
$1.49
5
RIVET(50)
7621462
$1.49
5
RIVET(50)
7621462
$1.49
6
BRKT,SNOW-FLAP
5220497-067
$12.39
6
BRKT,SNOW-FLAP
5220497-067
$12.39
7
SNOW FLAP-SIDE
5810222
Unavailable
7
SNOW FLAP-SIDE
5810222
Unavailable
8
TAILLIGHT ASM. (Incl. 9-13)
2432035
Unavailable
9
BASE&SOCKET,T/L
4032047
Unavailable
10
GASKET,TAILLIGHT
4032045
$4.03
11
LENS,TAILLIGHT
4032046
$32.37
12
Screw, Taillight
4032029
$4.79
13
BULB,T/L,EXT.DUTY
4030063
$24.99
14
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
14
HITCHKIT,L.T./STARTRAK (Incl. 15-19)
2870708
Unavailable
15
CLEVIS PIN(10)
7662209
$9.59
16
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
17
COTTER PIN(10)
7661401
$1.49
18
WASHER(10)
7552603
$1.49
18
WASHER(10)
7552603
$1.49
19
SCREW(10)
7512490
$3.99
20
EXTRUSION-TUNNEL REAR,BLK
5240516-067
$81.17
21
REFLECTOR RED
2670070
$9.91
21
REFLECTOR RED
2670070
$9.91
22
PANEL,R.EXTENSION
5240530
$34.08
23
FLAP,SNOW(WIDETRAK)
5410553
Unavailable
24
WASHER,(10)
7556044
$3.99
25
POP RIVET(50)
7621418
$1.49
26
STRIP, WEAR, EXT.
5222448
$17.46
27
RIVET(50)
7621449
$3.19
28
BRKT,HARNESS PROTECTOR
5222323
$24.27
29
RIVET(50)
7621429
$1.49
30
PROTECTOR, BED
5410560
$51.99
31
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
32
WASHER(10)
7558301
$1.49
33
NUT-LOCK(10)
7542122
$1.49
34
SCREW
7517377
$4.79
35
BOLT(10)
7515522
$3.99
36
NUT(10)
7542458
$9.59
37
PLUG(10)
5430713
Unavailable
38
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
39
LOCK WASHER(10)
7552901
$1.49
40
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
