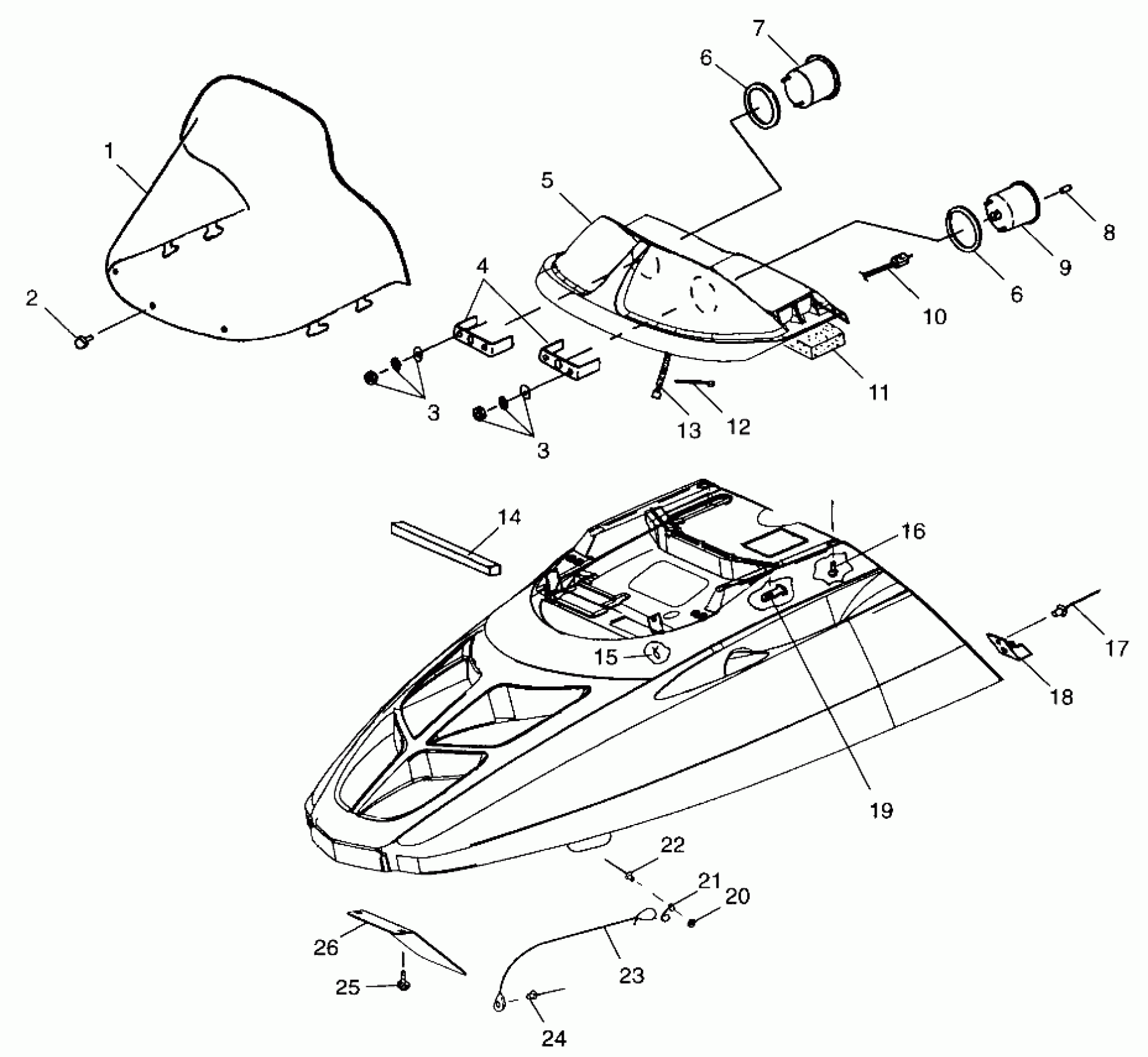

Polaris WIDETRAK LX - 099SU4BS HOOD - 099SU4BS (4948324832a010) Diagram

#

Description
Price

1

WINDSHIELD-GEN 2,FLR,20" CLEAR

5433168

$159.99

2

RIVET,PLASTI-LOC.(50)

7621509

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

INSTRUMENT HOUSING,W/T (Incl. Warning Decals)

2652214

$74.39

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

7

BULB TAILLIGHT(10)

4030015

$4.03

7

TACH ASM,5",2 PULSE

3280293

Unavailable

8

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

9

BULB TAILLIGHT(10)

4030015

$4.03

9

SPEEDO,5",100MPH,90� ANGLE

3280303

$206.65

10

TAPE,FOIL1.5"X12"3M1430/5.5MIL

5811763

Unavailable

10

CABLE,SPEEDO,86 IN. Substituted by 3280341

3280296

$60.70

11

FOAM,PREFILTER

5811625

$29.99

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

FOIL,4X5 3M#1430PSA5.5MIL

5811765

$5.65

13

HARNESS,H/L,WIDETRAK

2460687

$66.67

13

FOIL,2.75X12"3M#1430 5.5ML [No Longer Available]

5811755

Unavailable

14

FOAM-HEADLIGHT SEAL W/PSA

5811687

$20.22

15

CLIP,ROSEBUD

4020149

$6.39

16

SCREW(10)

7517441

$2.39

17

RIVET(50)

7621334

$1.49

18

CUP, HOOD LATCH,(10)

5430733

$4.84

19

RETAINER,WINDSHIELD,(10)

5410970

$1.49

20

BURR,RIVET(50)

7555904

$1.49

21

CLIP,PIGTAIL

5242893

$6.65

22

RIVET, BLIND(50)

7621467

$1.49

23

CABLE,HOOD,HYB.

7080764

$28.32

24

RIVET-3/16-.090-.290

7661637

$1.49

25

SCREW(10)

7512068

$2.39

26

DEFLECTOR, AIR Substituted by 5243393

5222691

Unavailable
