GEARCASE - 099SU4BS (4948324832b009)

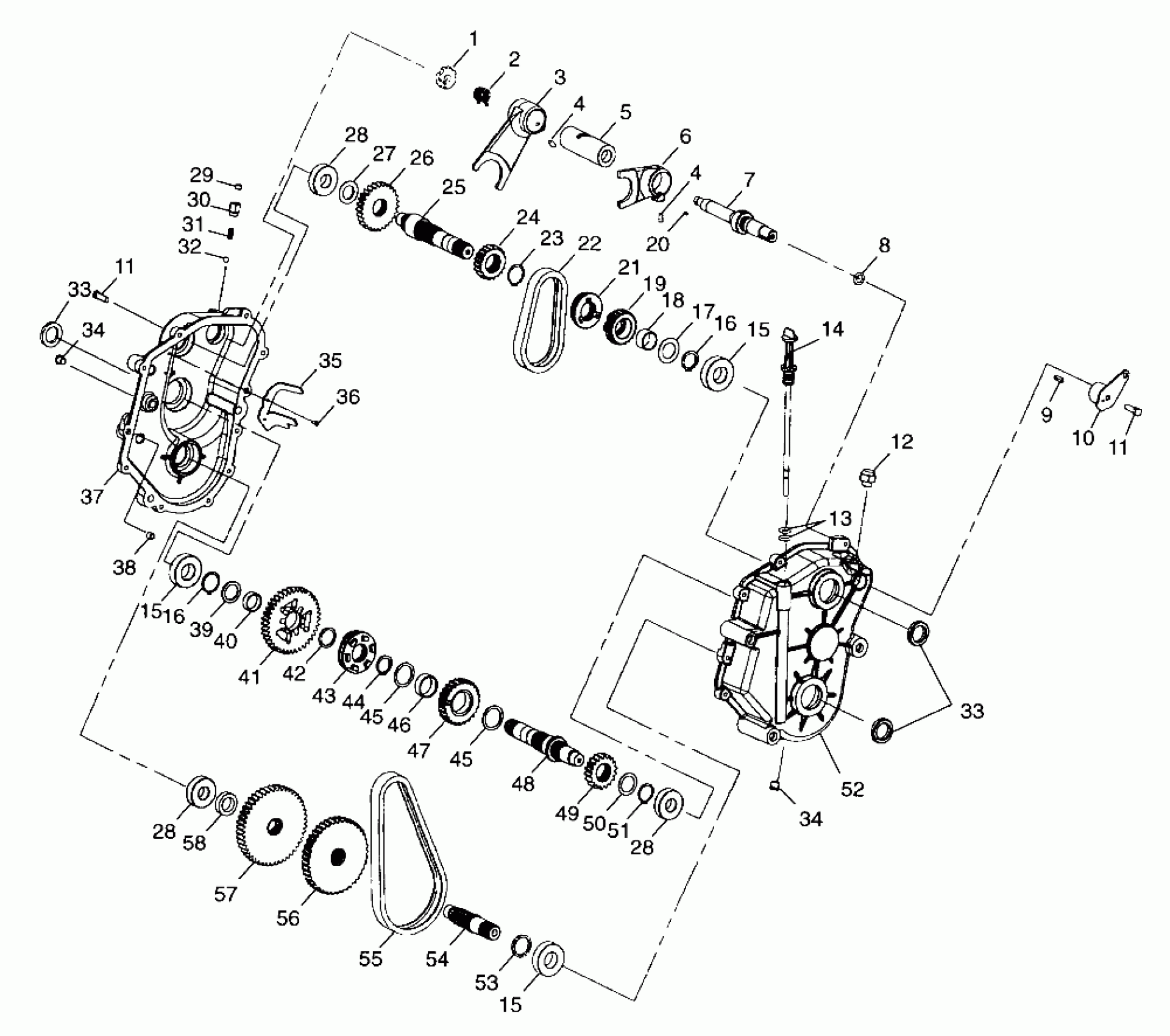

Polaris WIDETRAK LX - 099SU4BS GEARCASE - 099SU4BS (4948324832b009) Diagram
#
-
GEARCASE ASM,W.T.,BASIC,HV (Incl. 1-58)
1341233
Unavailable
-
DESC NOT_AVAILABLE (Incl. 1-58)
1341234
Unavailable
1
INDEX,SHIFT
3233402
$36.47
2
SPRING,TORSION
3233474
$6.63
3
SHIFT FORK,LOW
3233503
$113.32
4
PIN,DOWELL
3233375
$6.59
4
PIN,DOWELL
3233375
$6.59
5
DRUM,SHIFT
3233504
Unavailable
6
SHIFT,FORK,HIGH
3233505
Unavailable
7
SHAFT,SHIFT
3233403
$195.22
8
O RING(10)
5410440
$4.84
9
KEY, (3/16 X 1/4)
3233414
$1.59
10
BELLCRANK,WTD
3233393
$59.03
11
Screw
3233026
$6.46
11
Screw
3233026
$6.46
12
Switch
3233410
$27.99
13
O-RING
5410675
$1.60
14
DIPSTICK Substituted by 1332143
5431419
Unavailable
15
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
15
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
15
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
16
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
16
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
17
WASHER,THRUST
3233468
$16.79
18
BEARING,NEEDLE
3233383
Unavailable
19
SPROCKET,19T,.75W (See Footnote) (NOTE: Must order with Ref. 21)
3233509
$149.99
20
KEY, (1/8 X 1/4)
3233415
Unavailable
21
DOG,ENGAGE,HIGH (See Footnote) (NOTE: Must order with Ref. 19)
3233470
$91.99
22
CHAIN,SILENT (.75W 40P)
3233508
Unavailable
23
RING,RETAINING
3233424
Unavailable
24
SPROCKET,19T
3233507
$39.99
25
SHAFT,INPUT
3233506
$227.52
26
GEAR,27T
3233419
$119.99
27
Spacer
3233416
$5.75
28
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
28
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
28
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
29
SCREW,SET
3233374
$1.49
30
DETENT,EXTENSION
3233405
$11.43
31
SPRING,SHIFTER DETENT
7041483
$40.46
32
BALL, DETENT
7080310
$5.99
33
SEAL, DUAL LIP
3610134
$49.99
33
SEAL, DUAL LIP
3610134
$49.99
34
PLUG(10)
7052115
$5.65
34
PLUG(10)
7052115
$5.65
35
DEFLECTOR,OIL
3233406
Unavailable
36
SCREW Substituted by 3233747
3233033
Unavailable
37
GEARCASE,RH
3233502
$217.99
38
PIPE, KNOCK
3233021
Unavailable
39
WASHER
3233099
Unavailable
40
BEARING, NEEDLE
3233103
$31.99
41
GEAR,39T
3233511
$134.99
42
Washer
3233105
$7.19
43
DOG,ENGAGEMENT,L/R
3233512
$109.99
44
RING,RETAINING
3233377
$3.19
45
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
45
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
46
BEARING,NEEDLE
3233384
$31.99
47
SPROCKET,25T
3233513
$79.99
48
SHAFT,REVERSE
3233514
$149.99
49
GEAR,18T
3233515
Unavailable
50
Spacer
3233381
Unavailable
51
RING,RETAINING
3233516
$1.49
52
GEARCASE,LH
3233510
Unavailable
53
Spacer
3233418
Unavailable
54
SHAFT,OUTPUT
3233521
$179.99
55
CHAIN,SILENT (.75W 66P)
3233520
Unavailable
56
SPROCKET,41T,15T SPLINE
3233519
$89.03
57
GEAR,47T
3233518
$159.99
58
Spacer
3233517
Unavailable
