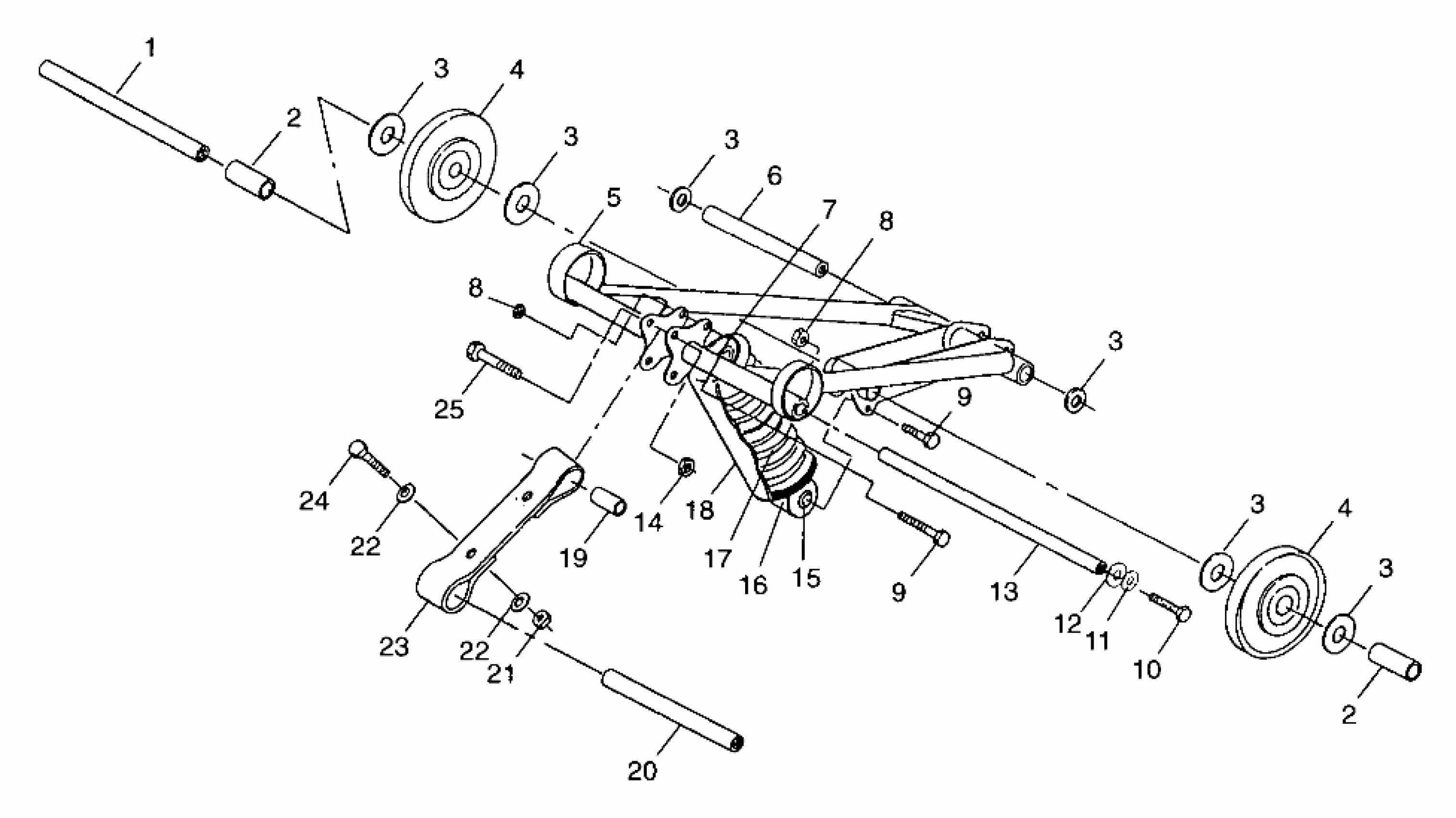

Polaris WIDETRAK LX - 099SU4BS FRONT TORQUE ARM - 099SU4BS (4948324832b004) Diagram

#

Description
Price

1

Shaft, Spanner (See Footnote) (See Suspension Pg. B8, Ref. 45)

-------

Unavailable

2

TUBE,OUTER SPACER

5333012

$12.99

2

TUBE,OUTER SPACER

5333012

$12.99

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

4

Asm., Bogie Wheel (See Footnote) (See Suspension Pg. B8, Ref. 28)

-------

Unavailable

4

Asm., Bogie Wheel (See Footnote) (See Suspension Pg. B8, Ref. 28)

-------

Unavailable

5

ARM,F.TORQUE,HD,LX,BLK

1541044-067

Unavailable

6

Shaft, Front Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref. 43)

-------

Unavailable

7

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

8

NUT LOCK(10)

7542411

$3.19

8

NUT LOCK(10)

7542411

$3.19

9

BOLT Substituted by 7515491

7515433

$1.59

9

BOLT Substituted by 7515491

7515433

$1.59

10

SCREW,(10)

7517247

$3.19

11

WASHER(10)

7552603

$1.49

12

WASHER(10)

7555893

$1.49

13

Shaft

5020909

$35.99

14

NUT-LOCK(10)

7542439

$1.49

15

SHOCK,CTR.SUSPENSION

7041742

$214.99

16

DESC NOT_AVAILABLE

5241276

Unavailable

17

SPRING,FR.TRACK,BLK

7041712-067

$52.60

18

SHIELD-SPRING

5430671

$24.27

19

BUSHING,SUSPENSION

5010212

Unavailable

20

Shaft, Rear Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref.43)

-------

Unavailable

21

NUT,NYLOC,(10)

7542344

$3.99

22

WASHER(10)

7555716

$1.59

22

WASHER(10)

7555716

$1.59

23

STRAP, LIMITER

5410397

Unavailable

24

SCREW ,(10)

7517313

$4.79

25

BOLT(10)

7515438

$4.79
