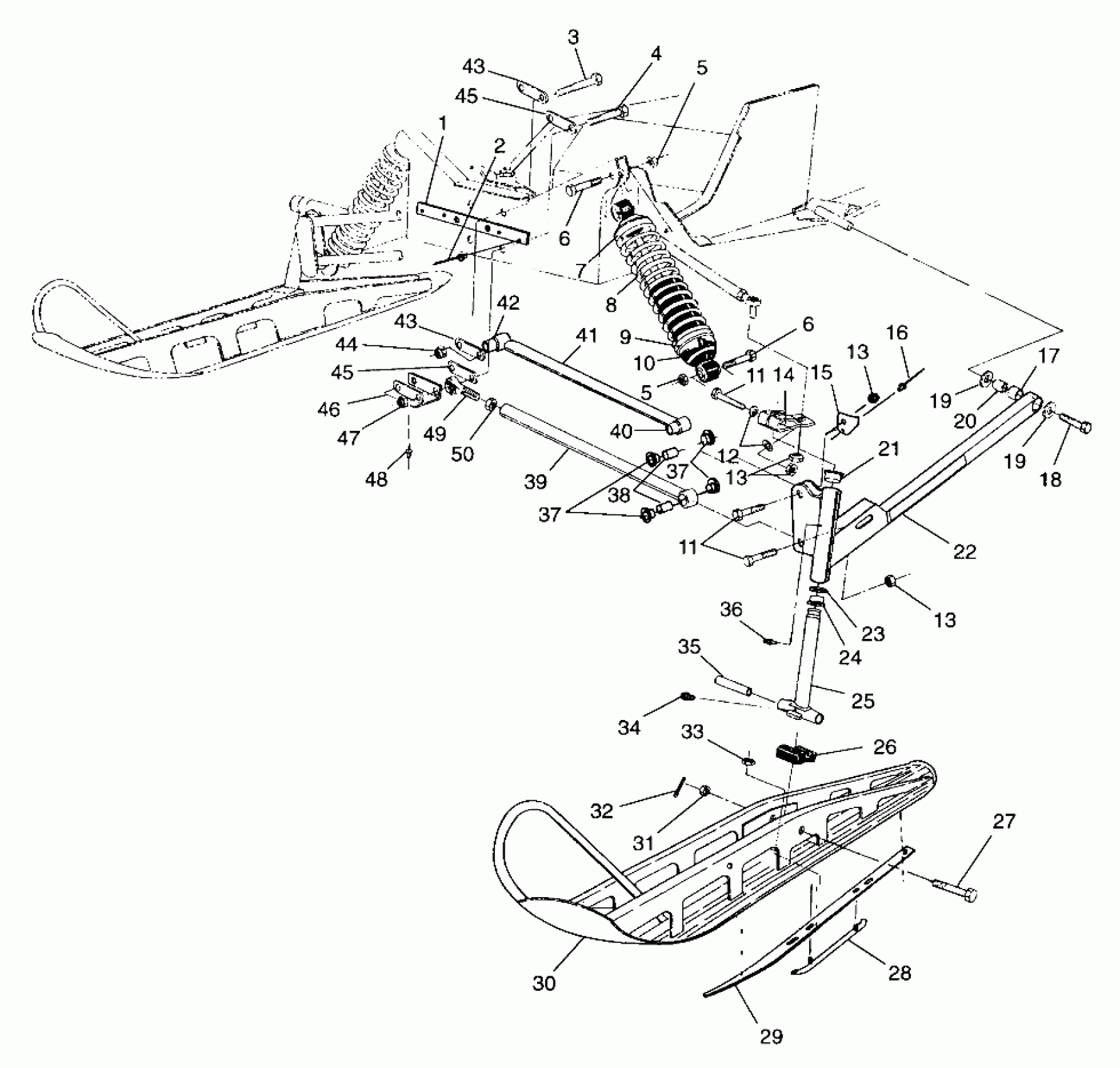

Polaris WIDETRAK LX - 099SU4BS FRONT SUSPENSION and SKI - 099SU4BS (4948324832b001) Diagram

#

Description
Price

1

BRACE,BULKHEAD

5240349-067

$6.63

2

RIVET-3/16-.090-.290

7661637

$1.49

3

BOLT(10)

7512582

$8.79

4

BOLT(10)

7512678

$19.99

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

BOLT(10)

7515415

$1.49

6

BOLT(10)

7515415

$1.49

7

RETAINER-TOP

5220225

$10.39

8

SPRING,COMP.,BLK.

7041261-067

$164.99

9

SPACER,SHOCK RETAINER(10)

5210953

$6.39

10

SHOCK,IFS

7041535

$214.99

11

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

11

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

12

WSHR-.813X.406X.105-Y

7555832

$2.39

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

14

Arm, Steering

5220326-067

Unavailable

15

STOP,LH,STRG,BLK.

5241569-067

$7.27

15

STOP,RH,STRG,BLK.

5241570-067

$7.27

16

RIVET(50) Substituted by 7661130

7661643

Unavailable

17

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

18

BOLT(10)

7512557

$7.60

19

WASHER(10)

7555721

$1.49

19

WASHER(10)

7555721

$1.49

20

TUBE, BUSHING

5010310

$9.70

21

BUSHING-FLANGE

3573909

$2.39

22

ARM,TRLG,LH (Incl. 17,20)

1822485

$281.49

22

ARM,TRLG,RH (Incl. 17,20)

1822486

Unavailable

23

WASHER SPECIAL(10)

7556509

$1.59

24

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

25

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

26

Stop, Rubber

5411083

$12.94

27

BOLT(10)

7515462

$8.79

28

SKAG,CARBIDE'EZ STEER' (Pair)

2870997

$71.99

28

SKAG,PR,3'' CRABIDE,E-Z STEER (Incl. 28,29,33)

2870976

Unavailable

29

Plate, Skag

1011829-067

$54.99

30

SKI WELD

1820430-067

Unavailable

31

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

32

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

33

NUT-5/16-18 NYLOK-Y

7542324

$1.49

34

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

35

BUSHING,PIVOT,(10)

5010158

$19.99

36

ZERK,FITTING,THREADED(10)

7080433

$1.49

37

BUSHING-RADIUS ROD,(10)

5010127

$7.99

37

BUSHING-RADIUS ROD,(10)

5010127

$7.99

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

39

ROD,RAD,LOWER,BLK

1822444-067

$60.70

40

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

41

ROD,RAD,UP.,FIXED (Incl. 40,42)

1822420

$119.99

42

BUSHING,PIVOT,7/16

5411095

$15.99

43

STRAP,SPACER TOP

5211344

$7.27

43

STRAP,SPACER TOP

5211344

$7.27

44

NUT, LOCK,(10)

7542503

$10.39

45

STRAP,SPACER BOTTOM

5211345

$12.99

45

STRAP,SPACER BOTTOM

5211345

$12.99

46

DESC NOT_AVAILABLE

5242578-067

Unavailable

47

NUT FLEX,(10)

7542703

Unavailable

48

RIVET,INTERLOCK,B(50)

7661638

$1.49

49

ROD END,1/2 LINED Substituted by 7061071

7061011

$48.56

50

NUT-JAM(10)

7542711

$2.39
