Description

Price

1

MUFFLER,BLK

1260932-029

$389.99

2

SHIELD-MUFFLER W/T

5243289

Unavailable

3

BOLT(10)

7515354

$3.99

4

WASHER(10)

7555734

$1.49

5

LOCK WASHER(10)

7552901

$1.49

6

SPRING-EXHAUST(10)

7042029

$4.84

7

SPRING-EXHAUST

7041687

$5.65

7

SPRING-EXHAUST

7041687

$5.65

7

SPRING-EXHAUST

7041687

$5.65

8

Nut (See Cylinder Pg. C8, Ref. 5)

-------

Unavailable

9

Washer, Lock (See Cylinder Pg. C8, Ref. 6)

-------

Unavailable

10

Manifold

1260501-029

$87.99

11

Gasket, Exhaust (See Cylinder Pg. C8, Ref. 7)

-------

Unavailable

12

RIVET(50)

7621452

$1.49

13

DAMPNER, VIB.

5410467

$8.79

13

DAMPNER, VIB.

5410467

$8.79

14

WASHER, THRUST(10)

7555788

Unavailable

14

WASHER, THRUST(10)

7555788

Unavailable

15

BRKT,R.MUFFLER,BLK

5242023-067

Unavailable

16

HAT,EXH,SNOW DEFLECTOR

5432465

$9.70

17

Boot, Exhaust

5410502

$24.27

18

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

19

RIVET, BLIND(50)

7621467

$1.49

20

SUPPORT,MUFFLER

1012079-067

$28.32

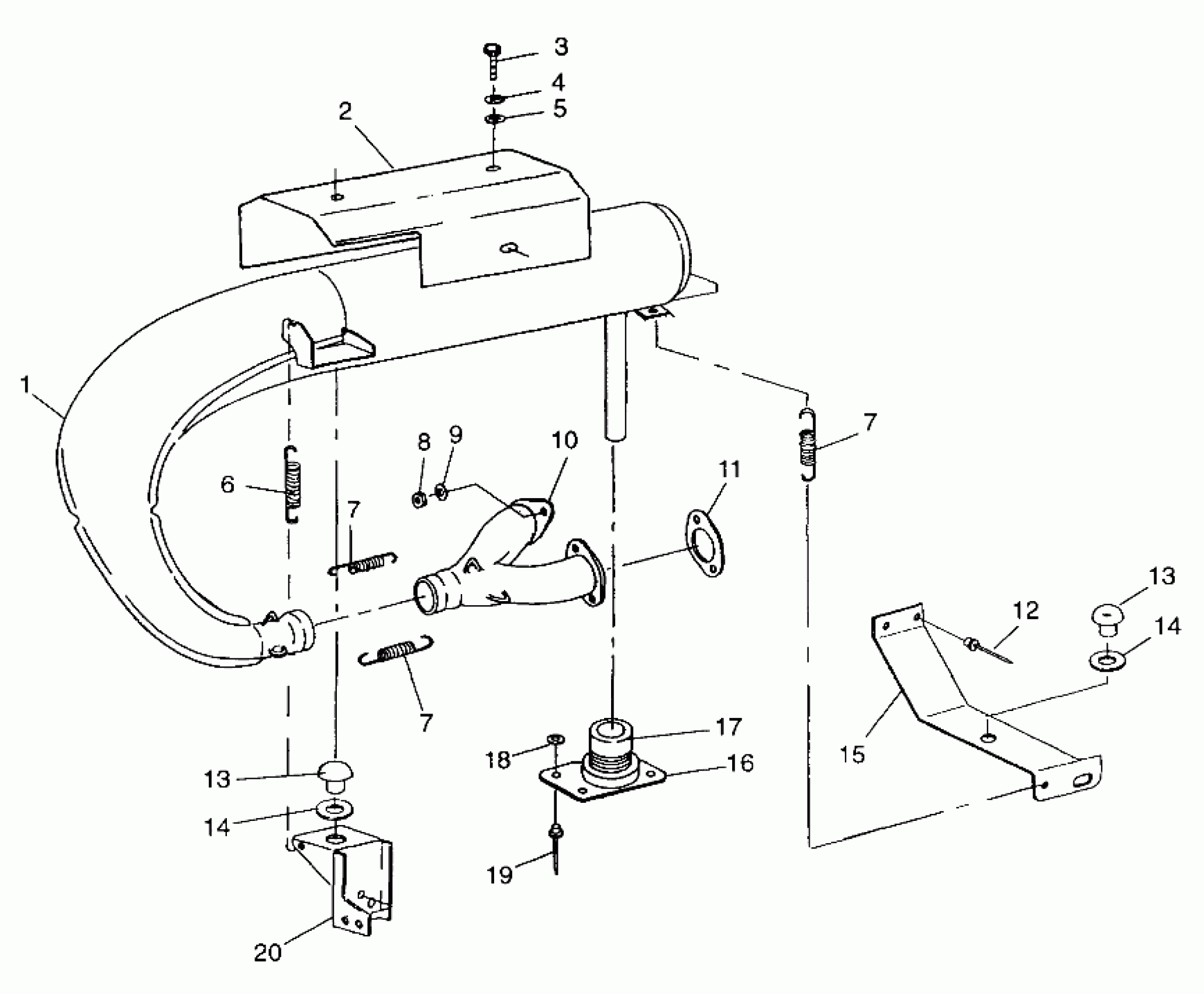

Polaris WIDETRAK LX - 099SU4BS EXHAUST SYSTEM - 099SU4BS (4948324832c002) Diagram

MUFFLER,BLK

SHIELD-MUFFLER W/T

BOLT(10)

WASHER(10)

LOCK WASHER(10)

SPRING-EXHAUST(10)

SPRING-EXHAUST

SPRING-EXHAUST

SPRING-EXHAUST

Nut (See Cylinder Pg. C8, Ref. 5)

Washer, Lock (See Cylinder Pg. C8, Ref. 6)

Manifold

Gasket, Exhaust (See Cylinder Pg. C8, Ref. 7)

RIVET(50)

DAMPNER, VIB.

DAMPNER, VIB.

WASHER, THRUST(10)

WASHER, THRUST(10)

BRKT,R.MUFFLER,BLK

HAT,EXH,SNOW DEFLECTOR

Boot, Exhaust

WASHER,13/64X1/2X18GA,FL-Y

RIVET, BLIND(50)

SUPPORT,MUFFLER
