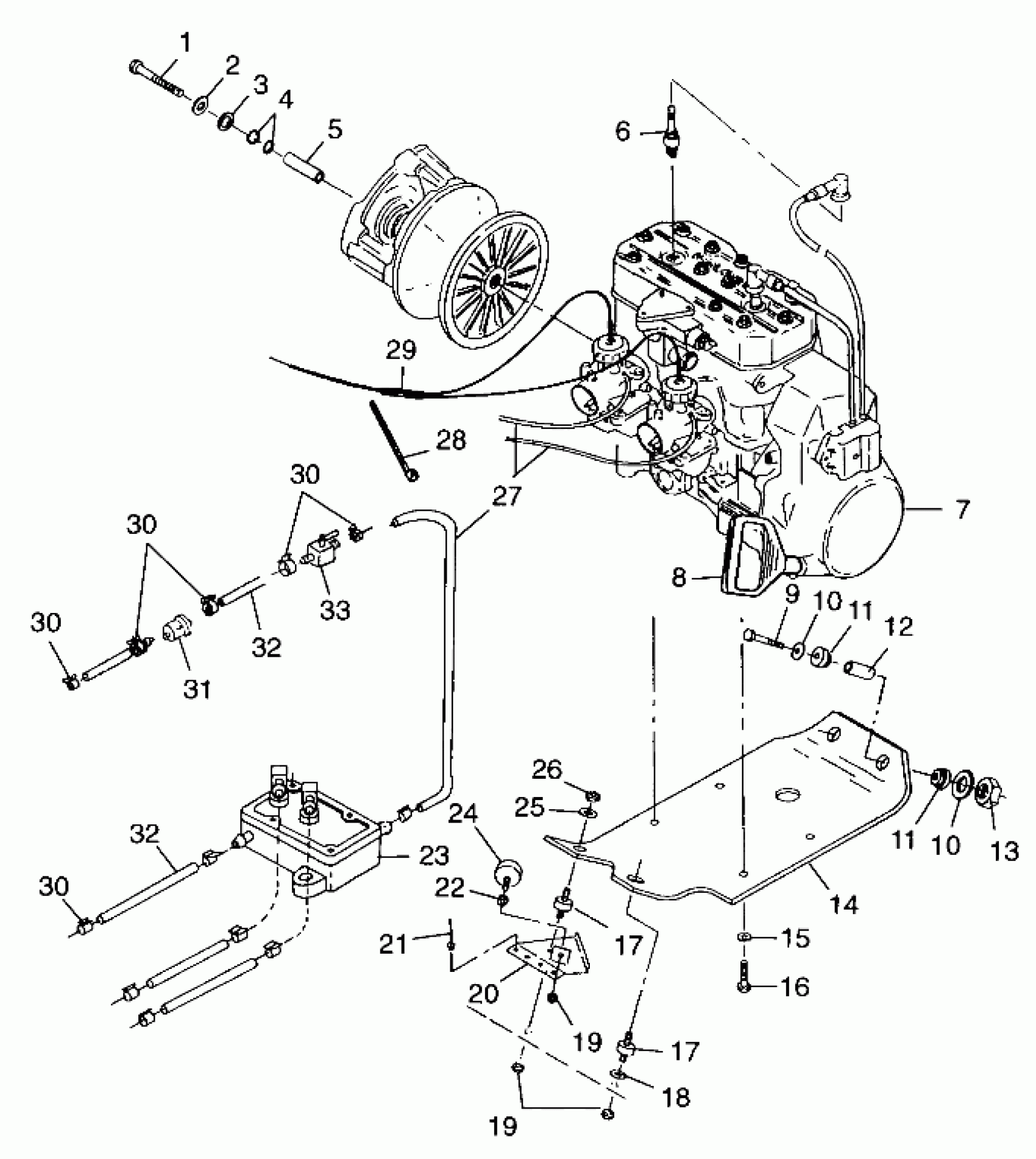

Polaris WIDETRAK LX - 099SU4BS ENGINE MOUNTING - 099SU4BS (4948324832c006) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG, RN3C(8)

3070166

$3.99

7

ENG.(S.B.)EC50PL-16/19/20 [No Longer Available] (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

3085397

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

SCREW(10)

7512530

$5.59

10

WASHER(10)

7555740

$1.59

10

WASHER(10)

7555929

Unavailable

10

WASHER(10)

7555740

$1.59

10

WASHER(10)

7555929

Unavailable

11

MOUNT, ENGINE

5410390

Unavailable

11

MOUNT, ENGINE

5410390

Unavailable

12

TUBE,SPACER

5333354

Unavailable

13

NUT,FLANGE(10)

7542522

$5.59

14

PLATE,MOTOR MT.

5242496

$125.46

15

WASHER LOCK(10)

7553101

$3.99

16

BOLT(10)

7512539

$3.99

17

MOUNT,ENG.

3110061

$84.99

17

MOUNT,ENG.

3110061

$84.99

18

WASHER,FLAT(10)

7555915

$3.19

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

LIMITER,TORQUE,BLK.

1012048-067

$38.71

21

RIVET-3/16-.090-.290

7661637

$1.49

22

NUT,HEX(10)

7542414

$4.79

23

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C11, Ref. 2)

-------

Unavailable

24

STOP,TORQUE,COARSE,1.94 DIA

3110063

$29.99

25

WASHER(10)

7555893

$1.49

26

NUT,FLEXLOCK,(10)

7547008

$6.39

27

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

CABLE,THROTTLE,W/OIL

7080554

$64.75

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

30

HOSE CLAMP, RED

7080003

$1.49

31

FILTER-FUEL,WHITE

2520156

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

VALVE,FUEL SHUT-OFF

7052060

Unavailable
