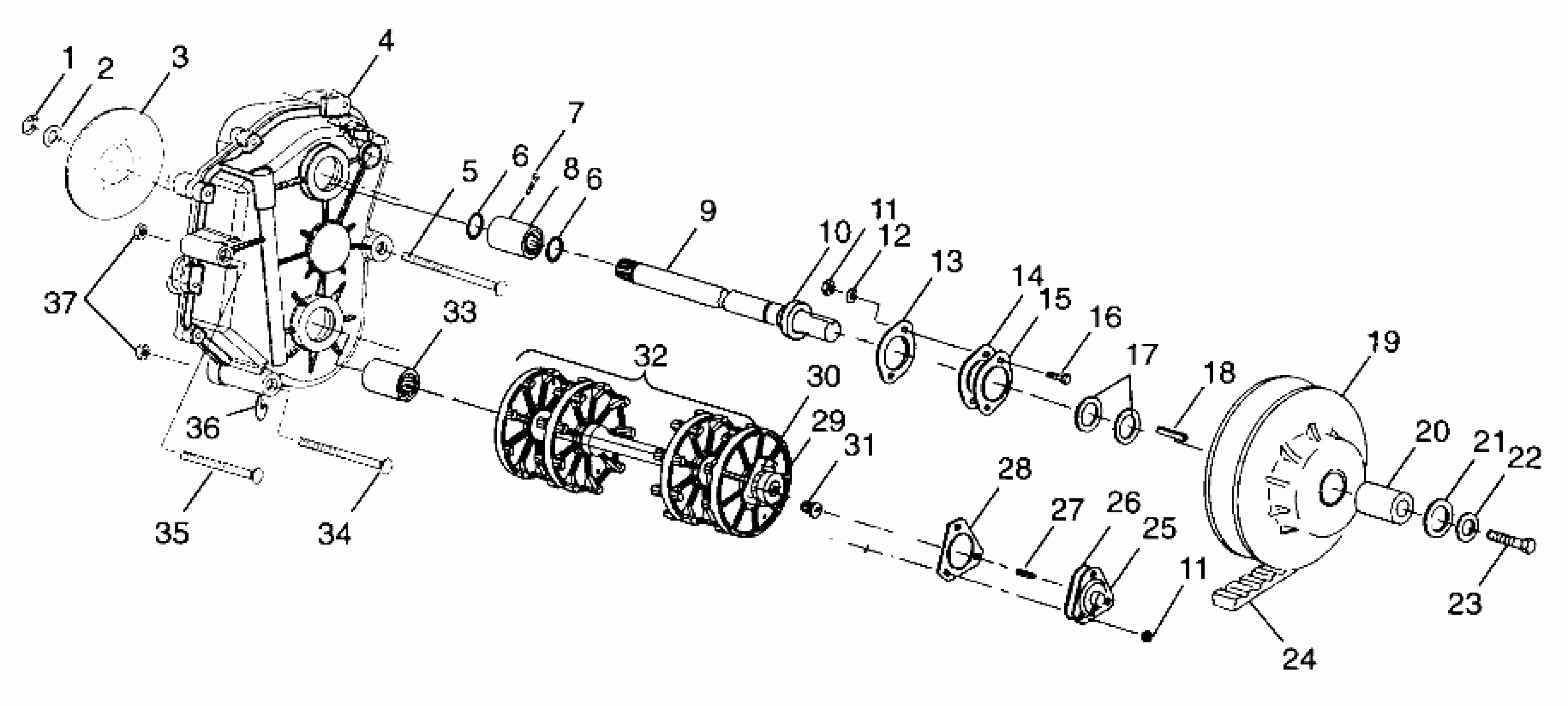

Polaris WIDETRAK LX - 099SU4BS DRIVESHAFT - 099SU4BS (4948324832b012) Diagram

RING,RETAINING(10) Substituted by 7710436

7713401

Unavailable

BUSHING,MACH.,(10)

7555922

$6.39

DISC,BRAKE ASM.

1910217

Unavailable

Asm., Gearcase (See Footnote) (See Gearcase Pg. B10 for Details)

-------

Unavailable

BOLT

7517291

$15.99

O-Ring

5410630

$2.02

O-Ring

5410630

$2.02

SCREW,(10)

7517446

$8.79

ZERK, GREASE(10)

7080437

$14.21

COUPLER ASM,19T,W/GREASE,LONG (Incl. Fitting & Screw)

1332219

$113.32

JACKSHAFT ASM,19T,W/BRG,W.T. Substituted by 1332256 (Incl. 10)

1332218

$474.99

BEARING

3514525

$31.99

NUT-5/16-18 NYLOK-Y

7542324

$1.49

NUT-5/16-18 NYLOK-Y

7542324

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

FLANGETTE, (2-BOLT)

5222393

Unavailable

GASKET,JACKSHAFT,2-BOLT

5830135

$2.83

FLANGETTE,(GREASABLE)

5222647

$24.27

BOLT(10)

7512377

$4.79

WASHER SPECIAL(10)

7556509

$1.59

KEY-SQUARE(10)

7721204

$3.19

Asm., Driven Clutch (See Footnote) (See Driven Clutch Pg. B14, Ref. 14)

-------

Unavailable

SPACER,INLET SHAFT

5431482

$24.79

WASHER(10)

7555806

$1.49

WASHER, SPRING(10)

7571626

Unavailable

BOLT(10)

7515502

$5.59

BELT,DRIVE,28 DEG.(5)

3211070

$114.99

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

FLANGETTE Substituted by 5243529

5241178

$13.75

BEARING,LUBE. Substituted by 3514525

3514526

$31.75

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

BUSHING METAL SPEEDO

3280019

$11.99

DRIVESHAFT ASM,PRESS BRG,WIDE Substituted by 1590285 (Incl.29-31)

1590255

Unavailable

COUPLER ASM,19T,W/GREASE ZERK Substituted by 1332260

1332198

$198.48

BOLT

7517292

$19.99

BOLT(10)

7515474

$3.33

SPACER,(10) (.080)

5210760

Unavailable

SPACER,(10) (.063)

5210759

Unavailable

SPACER,(10) (.020)

5210764

Unavailable

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

NUT(10)

7542423

$3.99
