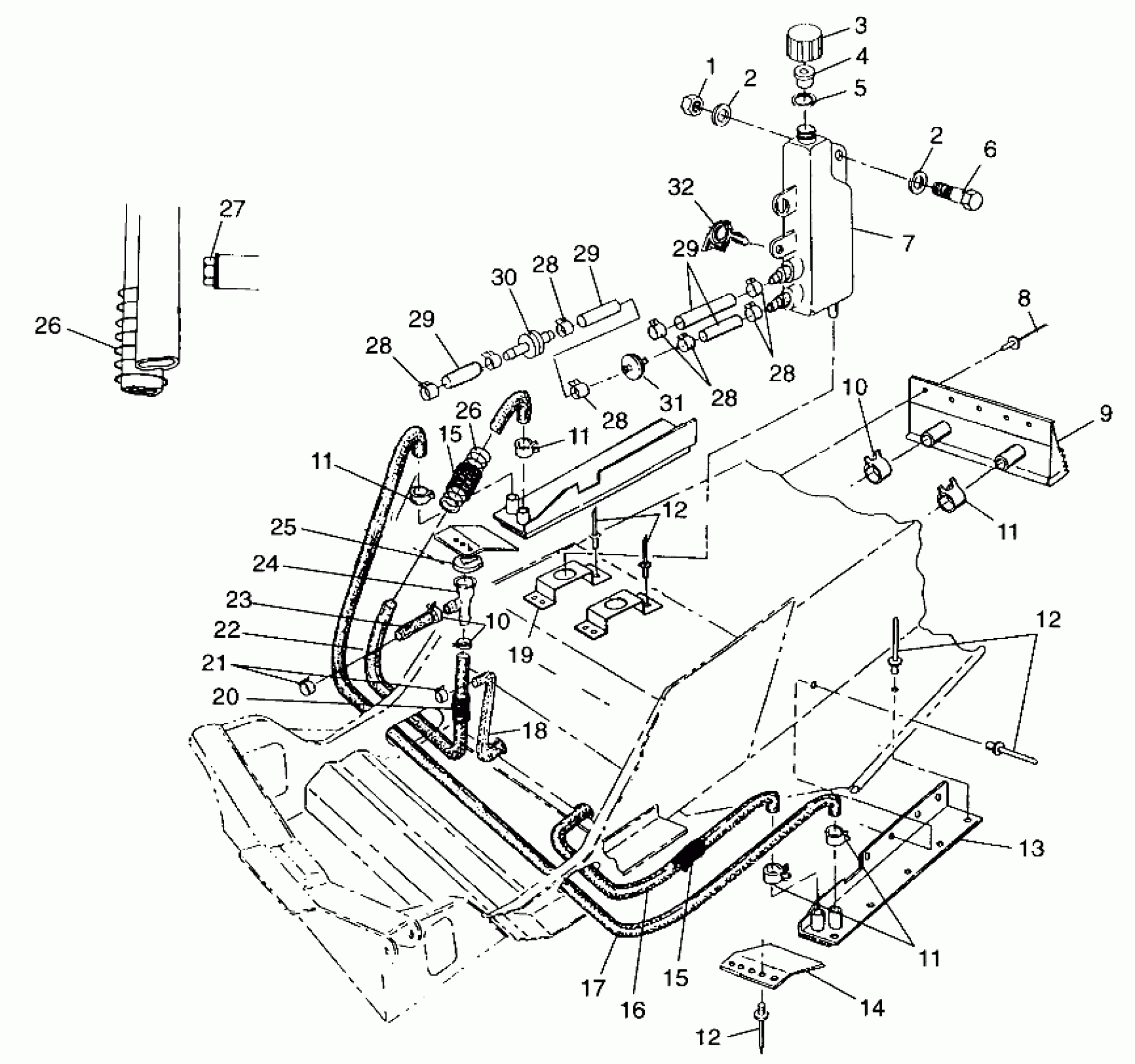

Polaris WIDETRAK LX - 099SU4BS COOLING SYSTEM - 099SU4BS (4948324832c004) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW,(10)

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

BOLT(10)

7512240

$3.99

7

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

8

RIVET-3/16-.090-.290

7661637

$1.49

9

EXT,CTR.COOLING

2511187

Unavailable

10

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

10

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

13

COOLER,LH,SIDE(XTRA 10) Substituted by 1240059

2511257

$144.99

13

COOLER,RH,SIDE(XTRA 10)

2511258

$227.99

14

GUARD,COOL.EXT.

5240555

$11.59

15

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

15

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

16

HOSE,CROSSOVER,SHORT

5410558

$19.68

17

HOSE,CROSSOVER

5410557

Unavailable

18

HOSE,CLOSEOFF,OUT ENG.

5411382

$40.46

19

BRKT,OILTANK,COINED

5241334

$9.70

20

TUBING,CONVOL,8"X1"

5411396

$9.70

21

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842

7080563

Unavailable

22

HOSE,FILLER OUT,RH.EXT.

5411381

Unavailable

23

HOSE,ENG.OUT/FILLER

5411010

$24.27

24

FILLER,REMOTE COOLANT Substituted by 5433364

5431931

Unavailable

25

CAP,PRESS.(19-21 LB.)

2511256

Unavailable

26

SPRING,HOSE RETAINER

7041079

$4.95

26

SPRING,HOSE RETAINER

7041079

$4.95

27

Bolt (See Footnote) NOTE: Bolt is lower gearcase mounting bolt.

-------

Unavailable

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

30

VALVE, CHECK

7052038

$10.51

31

FILTER,COOLANT,LGE.

2530024

Unavailable

32

CLIP, PLASTIC(10)

4020139

$4.79
