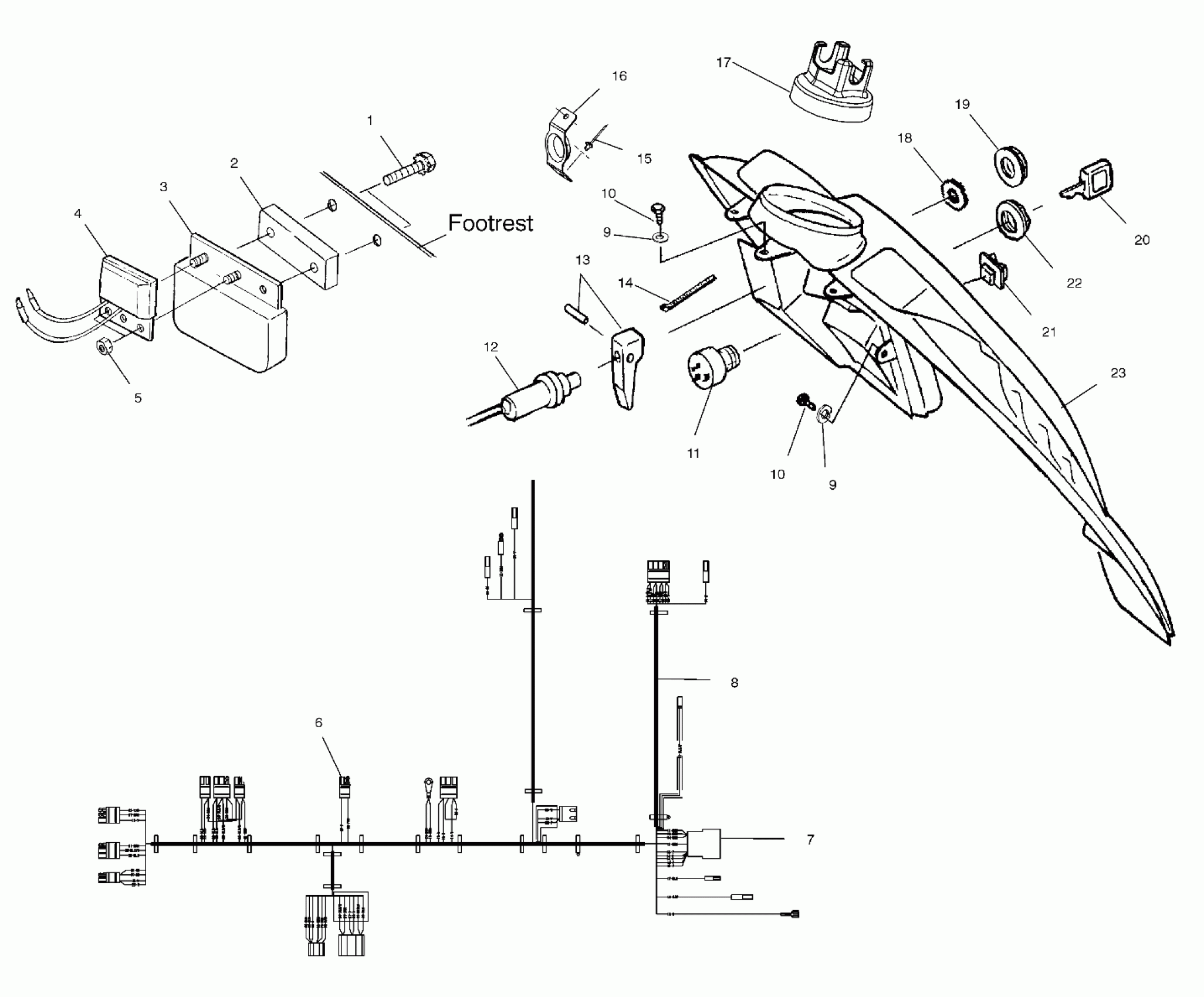

Polaris WIDETRAK LX - 099SU4BS CONSOLE - 099SU4BS (4948324832a013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,14 VAC.LR-9

4060122

Unavailable

4

RECTIFIER, LR-4

4060104

Unavailable

5

NUT(10)

7541925

$1.49

6

Terminal, Ring

4020092

Unavailable

7

Housing w/Receptacle

4020057

$3.51

8

FOIL,4X5 3M#1430PSA5.5MIL

5811765

$5.65

8

HARNESS-MAIN WIRE,WIDETRAK Substituted by 2460910

2460689

$188.10

8

DESC NOT_AVAILABLE

5811764

Unavailable

9

WASHER(10)

7558203

$3.19

9

WASHER(10)

7558203

$3.19

10

SCREW(10)

7517441

$2.39

10

SCREW(10)

7517441

$2.39

11

KIT,IGN.SWITCH

2200358

$76.89

12

Cable, Choke Control (Incl. 13,19)

7080290

$105.22

13

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

14

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

15

RIVET, POP(50)

7621330

$1.49

16

GUIDE-RECOIL

5243049

$9.70

17

BOOT-HANDLEBAR,W/T

5433243

$129.99

18

WASHER-LOCK(10)

7571610

$3.99

19

NUT,CHOKE

5432944

$8.79

20

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

21

SWITCH,HEATER,HI/LO

4110263

Unavailable

22

NUT,IGNITION

7547035

$8.79

23

CONSOLE,HYB.W/T,BLK.

5432994

$70.39
