STARTING MOTOR WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164D003)

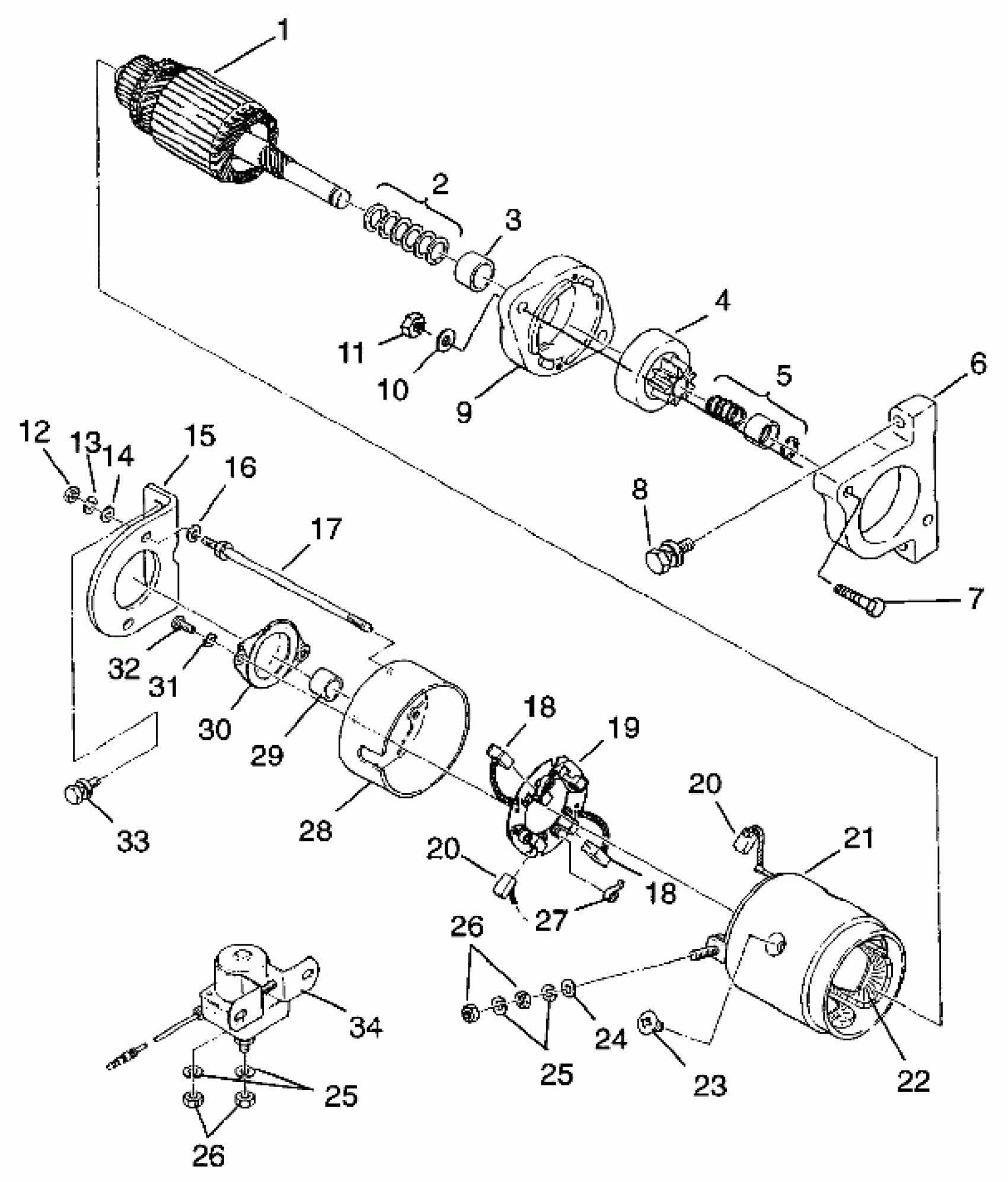

Polaris WIDETRAK LX - 0962064 STARTING MOTOR WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164D003) Diagram
#
1
ARMATURE ASM.
3084115
Unavailable
2
KIT-WASHER
3083191
Unavailable
3
BUSHING,METAL,FRONT
3083206
Unavailable
4
PINION ASM
3083201
Unavailable
5
STOPPER SET,(PINION)
3084116
Unavailable
6
BRKT,FR.STARTER
1012036-067
Unavailable
7
SCREW(10)
7512310
$2.39
8
BOLT&WASHER ASM.
3083862
$1.49
9
COVER ASM-FRONT. (Incl. 3)
3083205
Unavailable
10
WASHER(10)
7555734
$1.49
11
NUT FLEX-LOC(10)
7542303
$6.39
12
NUT(10)
3083042
Unavailable
13
WASHER SPRING(10)
3083133
Unavailable
14
WASHER Substituted by 3083774
3083134
Unavailable
15
BRKT,R.STARTER
5240377-067
Unavailable
16
WASHER
3083357
$2.39
17
BOLT-THROUGH
3083203
Unavailable
18
BRUSH, (-) (-)
3083196
Unavailable
18
BRUSH, (-) (-)
3083196
Unavailable
19
HOLDER ASM,BRUSH (Incl. 18, 27)
3083195
Unavailable
20
BRUSH, (+) (+)
3083194
Unavailable
20
BRUSH, (+) (+)
3083194
Unavailable
21
MOTOR-STARTER (Incl. 1-3, 4, 5, 9, 17-32)
3083189
Unavailable
22
COIL-FIELD (Incl. 20, 23)
3083192
Unavailable
23
SCREW-POLE CORE SET
3083193
Unavailable
24
WASHER(10)
3080078
Unavailable
25
WASHER SPRING(10)
3080077
$2.39
25
WASHER SPRING(10)
3080077
$2.39
26
NUT(10)
3082939
Unavailable
26
NUT(10)
3082939
Unavailable
27
SPRING-BRUSH
3083197
Unavailable
28
COVER ASM-REAR (Incl. 29)
3083198
Unavailable
29
COVER-REAR METAL
3083199
Unavailable
30
COVER-DUST
3083204
Unavailable
31
WASHER-SPRING(10)
3083208
Unavailable
32
SCREW
3083207
Unavailable
33
BOLT&WASHER(10)
3083946
Unavailable
34
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 25, 26)
3083211
Unavailable
