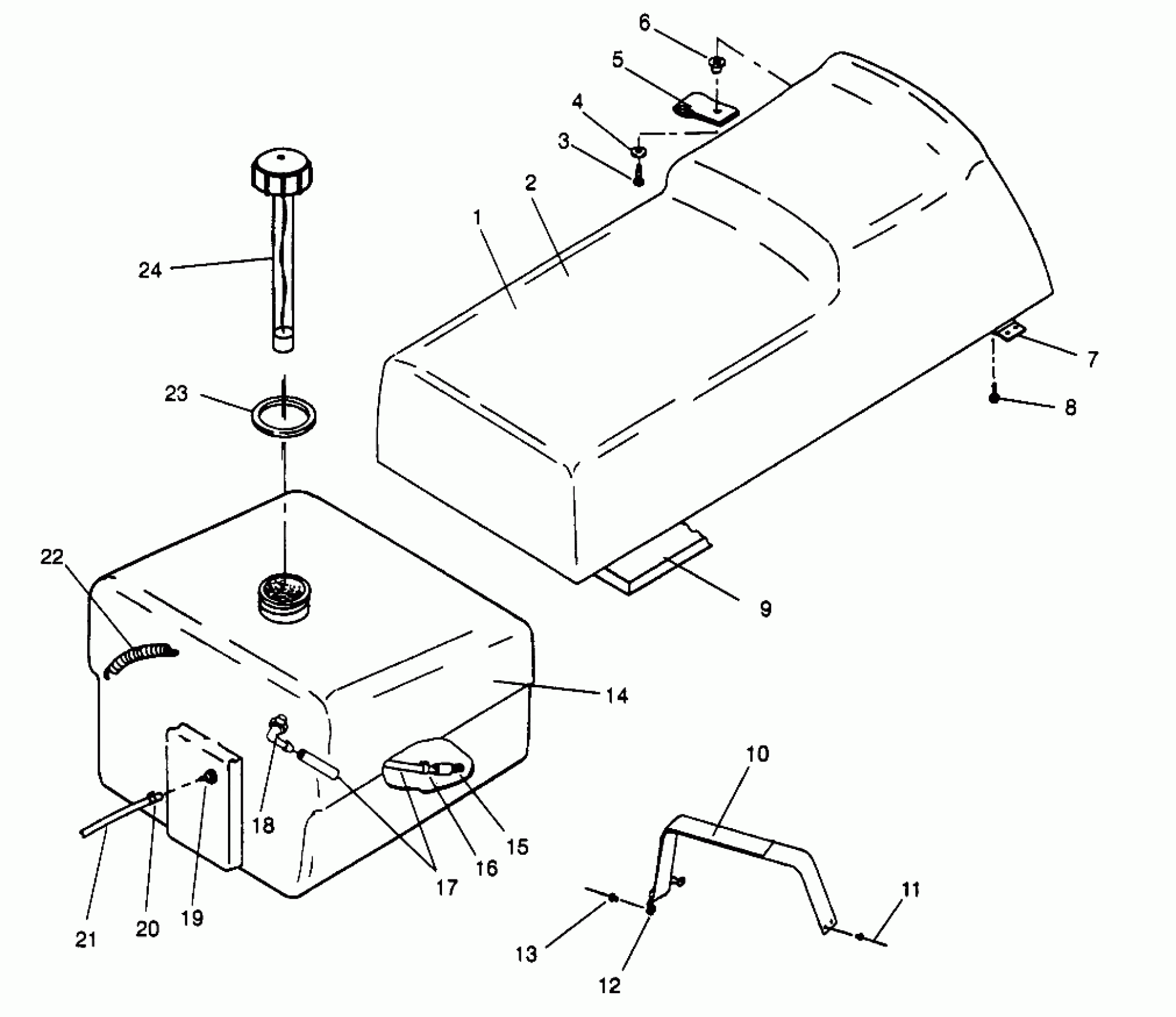

Polaris WIDETRAK LX - 0962064 SEAT and GAS TANK WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164A006) Diagram

CUSHION,SEAT,2-UP (Incl. 7)

2681903

Unavailable

COVER,SEAT,2-UP

2681904

Unavailable

SCREW(10)

7511989

Unavailable

WASHER(10)

7558203

$3.19

Pull, Seat

5810464

$12.30

TEENUT(10)

7541930

$2.06

Hinge, Flat (See Pg. A7, Ref. 33)

-------

Unavailable

SCREW(10)

7511990

Unavailable

PAD, BOTTOM SEAT [No Longer Available]

5810446

Unavailable

SEATBELT ASM,(W'TRAK) (Incl. 12)

2690086

Unavailable

RIVET, BLIND(50)

7621467

$1.49

Footman Loop (Supplied w/Strap)

-------

Unavailable

RIVET,INTERLOCK,B(50)

7661638

$1.49

TANK,FUEL(WIDETRAK) Substituted by 2511186

5431143

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

RING, COMPRESSION(10)

7080402

$1.60

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

FITTING,90 DEG,1/8,(10)

7052095

$4.79

FITTING - OUTLET(10)

7052023

$24.99

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

SPRING,TANK,(10)

7042020

$13.75

GASKET, GAS CAP

5810513

$8.89

CAP,GAS,W/GAUGE

2511246

$44.51
