REAR TORQUE ARM WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164B012)

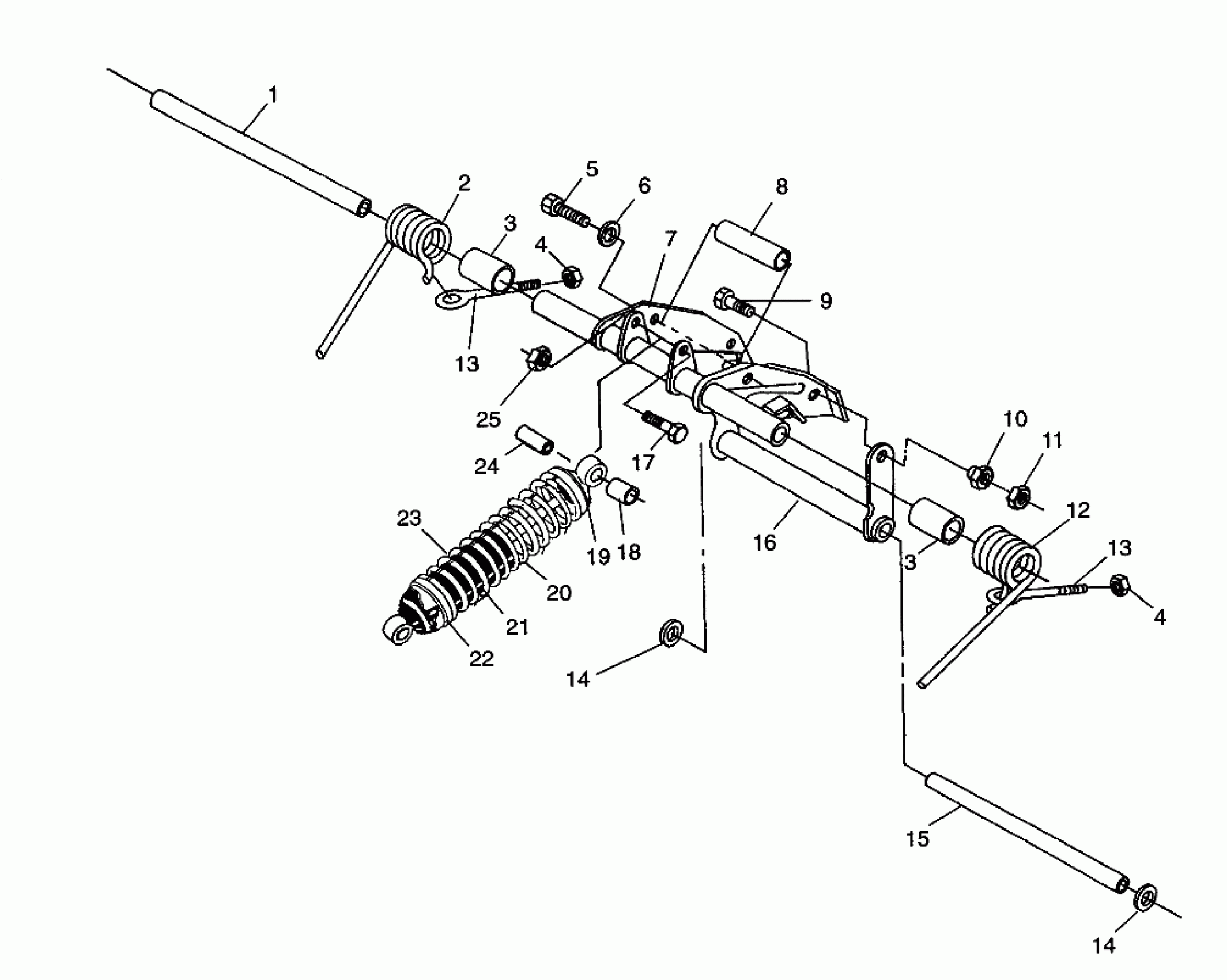

Polaris WIDETRAK LX - 0962064 REAR TORQUE ARM WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164B012) Diagram
#
Description
Price
1
SHAFT, MOUNTING
5020554
Unavailable
2
SPRING,RH,R.SUSP,BLK.
7041240-067
$94.99
3
SPACER, SPRING
5521277
$23.99
3
SPACER, SPRING
5521277
$23.99
4
NUT FLEX LOC,(10)
7542402
$6.39
4
NUT FLEX LOC,(10)
7542402
$6.39
5
BOLT(10)
7515526
$1.19
6
WASHER(10)
7552603
$1.49
7
ARM,R.TORQUE,BLK.
1540761-067
Unavailable
8
TUBE,SPACER,R.TORQUE
5010305
$15.67
9
BOLT(10)
7515317
$4.79
10
NUT, SHOULDER(10)
7542326
$19.99
11
NUT LOCK(10)
7542302
$3.99
12
SPRING,LH,R.SUSP,BLK.
7041239-067
$130.70
13
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
13
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
Shaft, Front Pivot Arm (See Pg. NO TAG, Ref.NO TAG)
-------
Unavailable
16
ARM,R.PIVOT,BLK.
1540652-067
$74.99
17
BOLT(10)
7512329
$3.99
18
SPACER
5332631
$6.39
19
RETAINER-TOP
5220225
$10.39
20
SPRING,COMP.,BLK.
7041261-067
$164.99
21
SLEEVE,SPRING PROTECTOR
5431032
$31.99
22
CAM,ADJUSTING SPRING
5630334
$32.37
23
SHOCK,R.R.SUSP,HVY.DUTY Substituted by 7041738
7041280
$319.99
24
BUSHING
5430537
$3.99
25
NUT-5/16-18 NYLOK-Y
7542324
$1.49
