RACK and TUNNEL EXTENSION WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962 (4931643164A014)

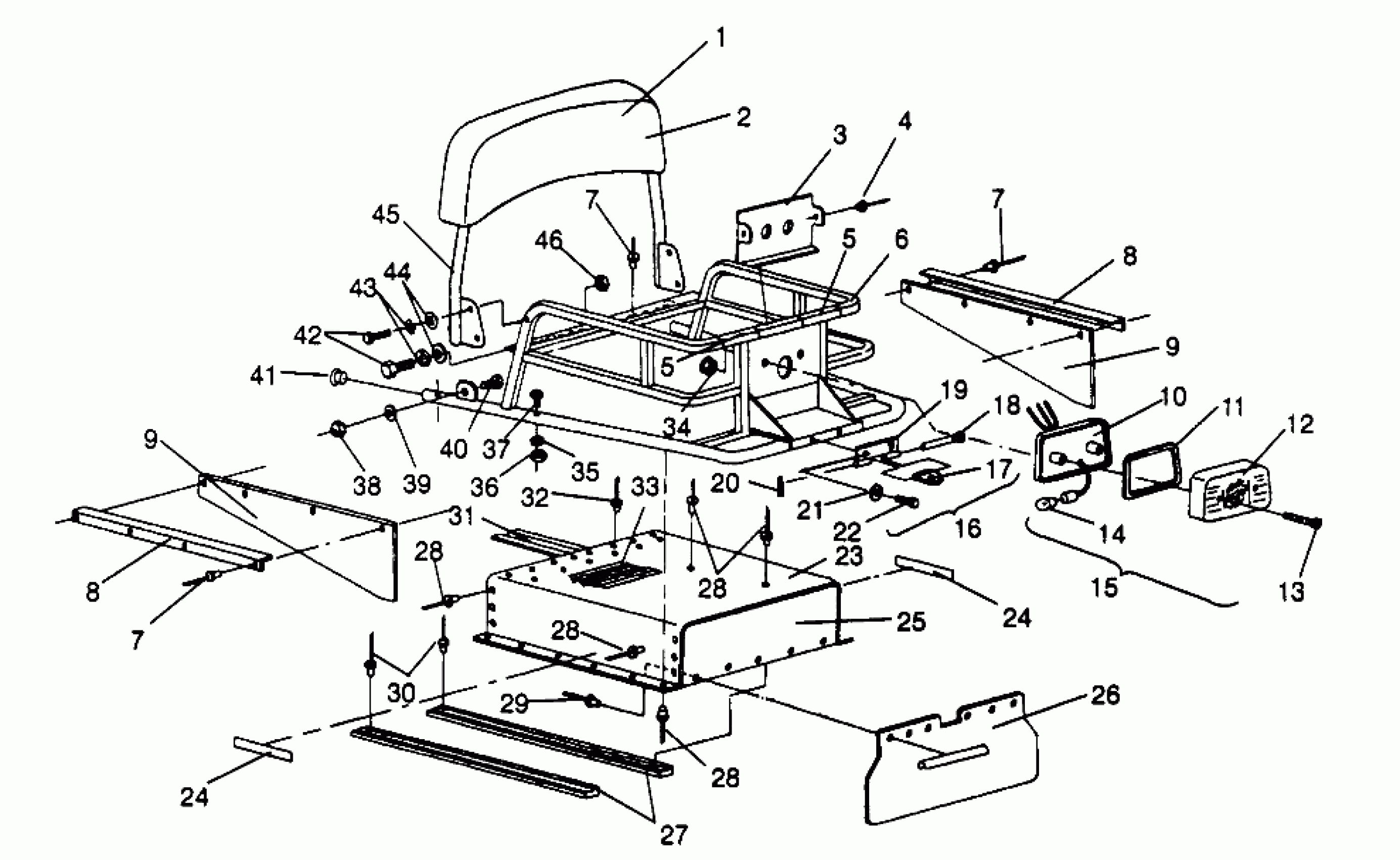

Polaris WIDETRAK LX - 0962064 RACK and TUNNEL EXTENSION WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962 (4931643164A014) Diagram
#
1
BACKREST ASM. (Incl. 2, 45)
2681905
$216.17
2
COVER,BACKREST
2681906
Unavailable
3
SHIELD,TAILLIGHT
5222868-067
$20.63
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
DECAL,LH,TRACK/SEAT,ENGLISH
7075414
Unavailable
5
DECAL,RH,TRACK/SEAT,FRENCH
7075415
Unavailable
5
DECAL,LH,TRACK/SEAT,ENGLISH
7075414
Unavailable
5
DECAL,RH,TRACK/SEAT,FRENCH
7075415
Unavailable
6
RACK,BLK,'LX'
1012076-067
$258.99
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
8
BRKT,SNOW-FLAP
5220497-067
$12.39
8
BRKT,SNOW-FLAP
5220497-067
$12.39
9
SNOW FLAP-SIDE
5810222
Unavailable
9
SNOW FLAP-SIDE
5810222
Unavailable
10
BASE&SOCKET,T/L
4032047
Unavailable
11
GASKET,TAILLIGHT
4032045
$4.03
12
LENS,TAILLIGHT
4032046
$32.37
13
Screw, Taillight
4032029
$4.79
14
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
15
TAILLIGHT ASM. (Incl. 10-14)
2432035
Unavailable
16
HITCHKIT,L.T./STARTRAK (Incl. 18-22)
2870708
Unavailable
17
HITCH WELD, BLK. Substituted by 2871178 (US Only)
1011624-067
Unavailable
18
CLEVIS PIN(10) (US Only)
7662209
$9.59
19
HITCH WELD,BLK.(U.S.) (US Only)
1011518-067
$31.75
20
COTTER PIN(10) (US Only)
7661401
$1.49
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
22
SCREW(10) Substituted by 7512490
7512402
Unavailable
23
EXTENSION,TUNNEL,REAR,LX
5240516
$68.08
24
REFLECTOR RED
2670070
$9.91
24
REFLECTOR RED
2670070
$9.91
25
PANEL,R.EXTENSION
5240530
$34.08
26
FLAP,SNOW(WIDETRAK)
5410553
Unavailable
27
STRIP, WEAR, EXT.
5222448
$17.46
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
29
POP RIVET(50)
7621418
$1.49
30
RIVET(50)
7621449
$3.19
31
BRKT,HARNESS PROTECTOR
5222323
$24.27
32
RIVET(50)
7621429
$1.49
33
PROTECTOR, BED
5410560
$51.99
34
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
35
WASHER(10) Substituted by 7558301
7555776
Unavailable
36
NUT(10)
7542124
Unavailable
37
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
38
NUT(10)
7542458
$9.59
39
WASHER(10)
7552603
$1.49
40
BOLT(10)
7515522
$3.99
41
PLUG(10)
5430713
Unavailable
42
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
43
WASHER(10)
7552606
$4.79
44
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
45
BACKREST, BLK. Substituted by 2681465
1011781-067
$27.92
46
NUT-5/16-18 NYLOK-Y
7542324
$1.49
