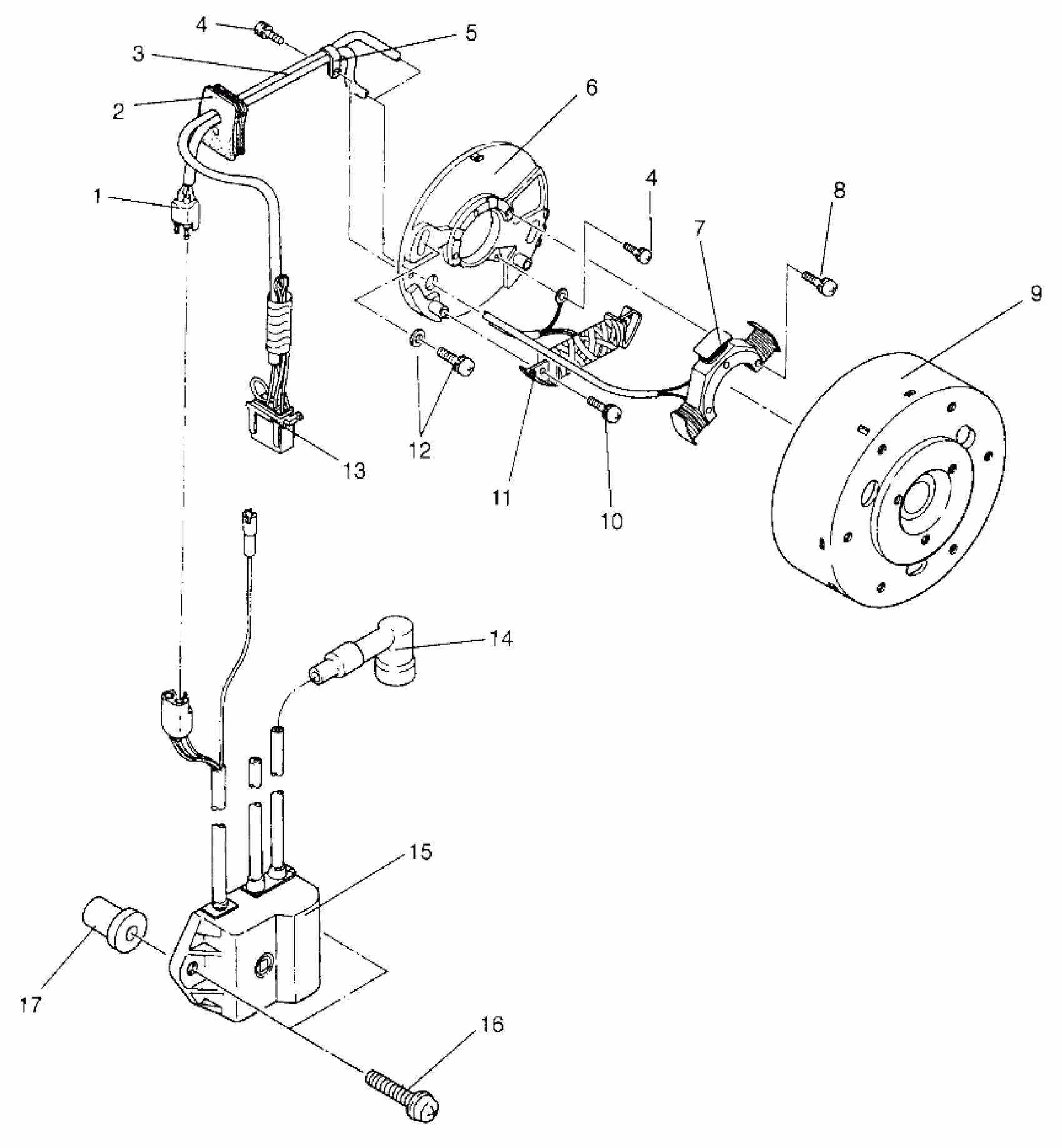

Polaris WIDETRAK LX - 0962064 MAGNETO WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164D001) Diagram

#

Description
Price

1

COUPLER

3083909

$23.99

2

Grommet

3082969

Unavailable

3

HARNESS, WIRE (Incl. 2)

3084289

Unavailable

4

SCREW&WASHER,(10)

3081260

$3.19

4

SCREW&WASHER,(10)

3081260

$3.19

5

Clamp

3081296

Unavailable

6

Plate, Coil

3083987

$364.99

6

PLATE ASM. (Incl. 6-8, 10, 11, 13)

3084286

Unavailable

7

Stator 1

3083991

$339.99

8

SCREW(10)

3082365

$3.19

9

FLYWHEEL

3084287

Unavailable

10

SCREW & WASHER

3083423

$3.19

11

Coil, Exciter

3083984

$89.03

12

SCREW&WASHER,(10)

3082175

Unavailable

13

COUPLER,MALE

3081513

$19.99

14

CAP SPARK PLUG,(10)

4020129

$9.70

15

COIL,IGNITION

3085053

Unavailable

16

SCREW&WASHER,(10)

3083784

$2.39

17

NUT-RUBBER

3083240

Unavailable
