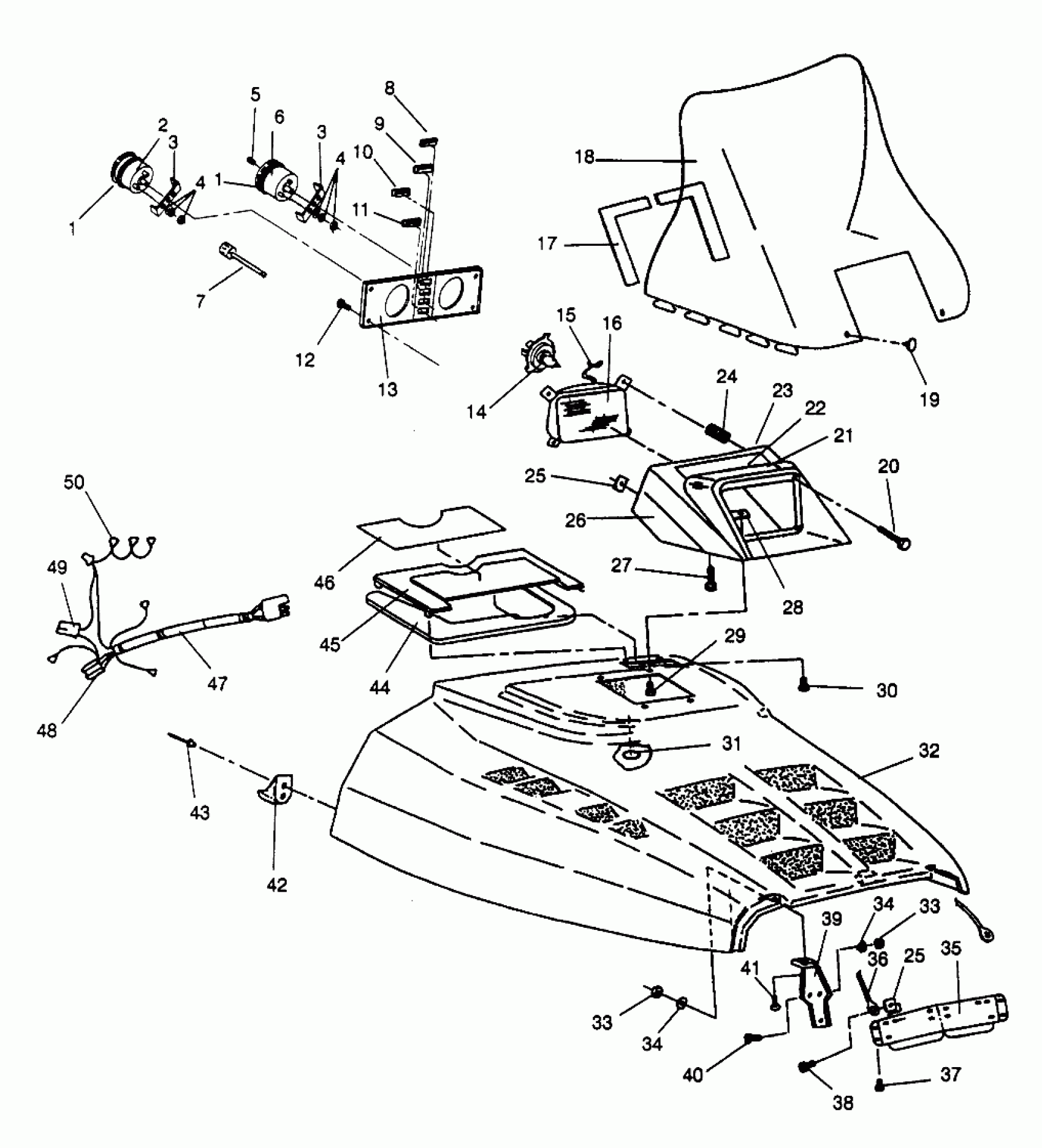

Polaris WIDETRAK LX - 0962064 HOOD WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164A009) Diagram

#

Description
Price

1

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

1

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

2

BULB TAILLIGHT(10)

4030015

$4.03

2

TACHOMETER,BACKLIT(2P) (Incl. 1, 3, 4)

3280149

Unavailable

3

BRKT,SPEEDO/TACH

3280153

Unavailable

3

BRKT,SPEEDO/TACH

3280153

Unavailable

4

WASHER,FLAT,(10)

3280157

$2.39

4

Nut

3280158

Unavailable

4

WASHER,SPLIT LOCK

3280156

$1.49

4

WASHER,FLAT,(10)

3280157

$2.39

4

Nut

3280158

Unavailable

4

WASHER,SPLIT LOCK

3280156

$1.49

5

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

6

SPEEDOMETER,BACKLIT (Incl. 1, 3-5)

3280148

Unavailable

6

SPEEDO,KILOMETER (Incl. 1, 3-5) (Euro)

3280159

$113.99

7

CABLE,SPEEDO.

3280094

$60.70

8

INDICATOR'TEMP'WARN.

4040011

$32.37

9

INDICATOR'LOW-OIL'WARN.

4040012

Unavailable

10

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

11

INDICATOR'REVERSE'WARN.

4040019

$28.32

12

SCREW,SCKT.HD.CAP(10)

7512008

Unavailable

13

BEZEL, INST.

5430924

Unavailable

14

BULB,QUARTZ.H/L,INDY

2870448

$24.99

15

RETAINER,H/L BULB

4032063

Unavailable

16

HEADLIGHT ASM. (Incl. 14, 15)

4032040

Unavailable

17

PAD,W/S,LH,BLACK

5810437

Unavailable

17

PAD,W/S,RH,BLACK

5810438

$1.67

18

WINDSHIELD,CLR,X-HIGH

5431630

Unavailable

19

RIVET,PLASTI-LOC.(50)

7621509

$1.49

20

SCREW, ADJ.(10)

4032003

Unavailable

21

DECAL,POD WARN.TOP [No Longer Available]

7073111

Unavailable

22

DECAL,POD WARN.BOTT. [No Longer Available]

7073112

Unavailable

23

HSG,INST,TOP,BLK

5430923-070

Unavailable

24

SPRING-ADJ

4032002

Unavailable

25

NUT, SPEED(10)

7670056

Unavailable

25

NUT, SPEED(10)

7670056

Unavailable

26

HSG,INST.BOTT.BLK.

5430922-070

Unavailable

27

SCREW(10)

7512009

Unavailable

28

NUT, SPEED(10)

7670057

$1.49

29

SCREW, SEMS(10)

7512283

$3.99

30

SCREW(10)

7511840

Unavailable

31

RETAINER,WINDSHIELD,(10)

5410970

$1.49

32

HOOD,WDTRK,LIQ. (Incl. Foam & Foil)

2631748-210

Unavailable

33

NUT-LOCK(10)

7542122

$1.49

33

NUT-LOCK(10)

7542122

$1.49

34

WASHER,WROUGHT(10)

7558302

$1.59

34

WASHER,WROUGHT(10)

7558302

$1.59

35

PLATE,RE-INF.,(HD.)

5222105

$49.51

36

CABLE,HD.RETAINER

7080360

$24.27

37

SCREW(10)

7511861

Unavailable

38

SCREW(10)

7511989

Unavailable

39

HINGE ASM,HD,BLK

2635005-067

$16.67

40

BOLT(10)

7512193

$2.39

41

BOLT-CARRIAGE(10)

7512263

$3.99

42

CUP, HOOD LATCH,(10)

5430733

$4.84

43

RIVET(50)

7621334

$1.49

44

SEAL, INTAKE

5810597

Unavailable

45

PANEL ASM,INTAKE,EMERALD

2620094-210

Unavailable

46

DECAL,DASH WARN.(PARK BRK) Substituted by 7075457

7075440

Unavailable

47

HARNESS,H/L POD

2460552

$22.06

48

HOUSING

4020052

Unavailable

49

Housing

4020115

$1.59

50

HOUSING

4020114

Unavailable
