Partiron

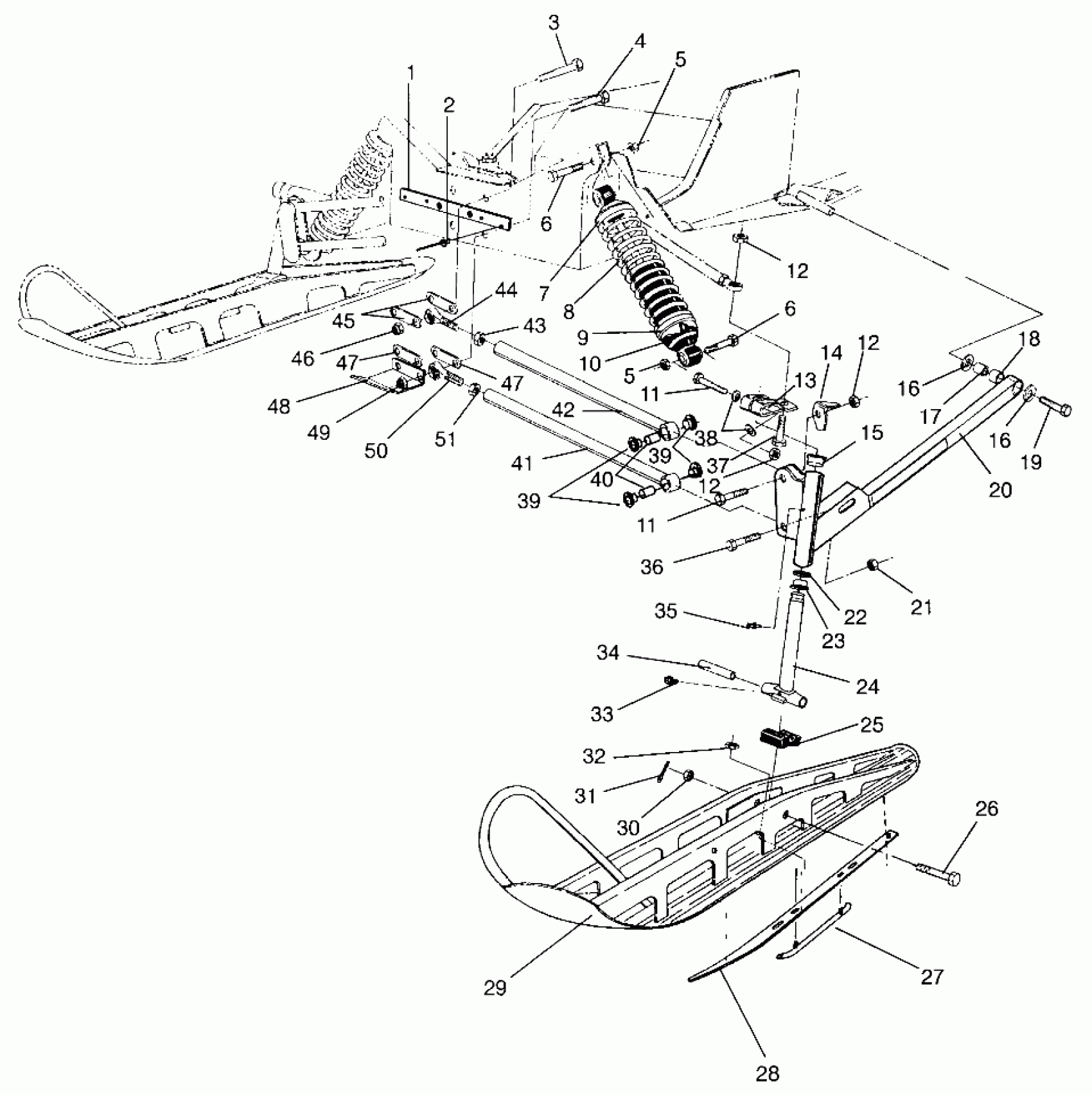

Polaris WIDETRAK LX - 0962064 FRONT SUSPENSION and SKI WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E9620 (4931643164B001) Diagram

#

Description
Price

1

BRACE,BULKHEAD

5240349-067

$6.63

2

RIVET-3/16-.090-.290

7661637

$1.49

3

BOLT(10)

7512551

Unavailable

4

BOLT(10)

7512678

$19.99

5

NUT, NYLOC(10)

7542453

Unavailable

5

NUT, NYLOC(10)

7542453

Unavailable

6

BOLT(10) Substituted by 7515415

7515515

Unavailable

6

BOLT(10) Substituted by 7515415

7515515

Unavailable

7

RETAINER-TOP

5220225

$10.39

8

SPRING,COMP.,BLK.

7041261-067

$164.99

9

SPACER,SHOCK RETAINER(10)

5210953

$6.39

10

SHOCK,FR.SUSP.

7041284

Unavailable

11

BOLT(10) Substituted by 7517583

7515491

Unavailable

11

BOLT(10) Substituted by 7517583

7515491

Unavailable

12

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

12

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

12

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

13

ARM,STEERING,BLK. Substituted by 1012423-067

5222873-067

Unavailable

14

STOP,STRG,RH,BLK.

5222875-067

Unavailable

14

STOP,STRG,LH,BLK.

5222874-067

Unavailable

15

BUSHING-FLANGE

3573909

$2.39

16

WASHER(10)

7555721

$1.49

16

WASHER(10)

7555721

$1.49

17

TUBE,TRAILING ARM

5010187

Unavailable

18

PIVOT-TRAILING ARM

5410382

Unavailable

19

BOLT(10)

7512557

$7.60

20

ARM,TRAIL,LH. (Incl. 17, 18)

1822187

Unavailable

20

ARM,TRAIL,RH. (Incl. 17, 18)

1822188

Unavailable

21

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

22

WASHER SPECIAL(10)

7556509

$1.59

23

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

24

SPINDLE, BLK.

6230073-067

Unavailable

25

STOP, RUBBER

5521276

Unavailable

26

BOLT(10)

7515462

$8.79

27

SKAG,CARBIDE'EZ STEER' (Pair)

2870997

$71.99

28

Plate, Skag

1011829-067

$54.99

29

SKI WELD, BLK

1820332-067

Unavailable

30

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

31

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

32

NUT-5/16-18 NYLOK-Y

7542324

$1.49

33

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

34

BUSHING,PIVOT,(10)

5010158

$19.99

35

ZERK,FITTING,THREADED(10)

7080433

$1.49

36

BOLT(10) Substituted by 7515540

7515492

$4.62

37

SCREW(10)

7512490

$3.99

38

WASHER(10) Substituted by 7555832

7555851

Unavailable

39

BUSHING-RADIUS ROD,(10)

5010127

$7.99

39

BUSHING-RADIUS ROD,(10)

5010127

$7.99

40

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

41

ROD,RAD.LOW.

1822123-067

Unavailable

42

ROD,RAD.UP.

1822121-067

Unavailable

43

NUT JAM(10)

7542520

$2.39

44

ROD END, RH Substituted by 7061010

7060155

Unavailable

45

STRAP,SPACER TOP

5211344

$7.27

46

NUT, LOCK,(10)

7542503

$10.39

47

STRAP,SPACER BOTTOM

5211345

$12.99

47

STRAP,SPACER BOTTOM

5211345

$12.99

48

BRACE, PAN

5223997-067

Unavailable

49

NUT FLEX,(10)

7542703

Unavailable

50

ROD END,RH Substituted by 7061011

7060156

Unavailable

51

NUT-JAM(10)

7542711

$2.39

51

SKAG,PR,3'' CRABIDE,E-Z STEER (Incl. 27, 32, 47)

2870976

Unavailable
