DRIVESHAFT ASSEMBLY WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164B013)

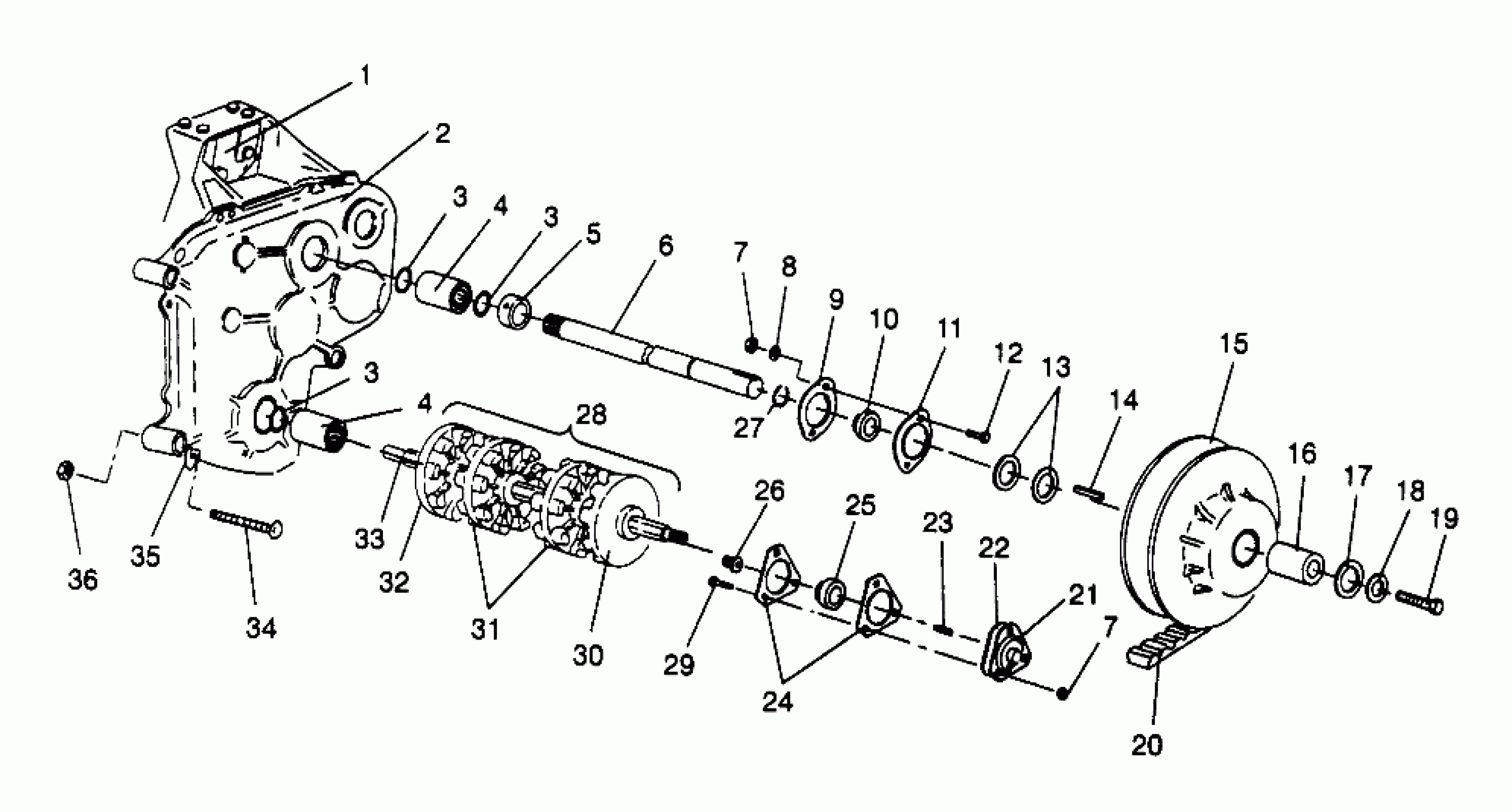

Polaris WIDETRAK LX - 0962064 DRIVESHAFT ASSEMBLY WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164B013) Diagram
#
1
Asm., Caliper, Brake (See Pg. , Ref.)
-------
Unavailable
2
Asm., Gearcase (See Pg. for Details)
-------
Unavailable
3
O-Ring
5410630
$2.02
3
O-Ring
5410630
$2.02
3
O-Ring
5410630
$2.02
4
COUPLER, GREASEABLE (Incl. Fitting)
1341096
Unavailable
4
COUPLER, GREASEABLE (Incl. Fitting)
1341096
Unavailable
5
COLLAR, SHAFT
7010038
Unavailable
6
JACKSHAFT ASM. (Incl. 10)
1332178
Unavailable
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
9
FLANGETTE, (2-BOLT)
5222393
Unavailable
10
BEARING,1 IN.(GREASEABLE)
3514511
Unavailable
11
FLANGETTE,(GREASABLE)
5222647
$24.27
12
BOLT(10) Substituted by 7512377
7512394
Unavailable
13
WASHER SPECIAL(10)
7556509
$1.59
14
KEY-SQUARE(10)
7721204
$3.19
15
Asm., Driven Clutch (See Pg. , Ref.)
-------
Unavailable
16
SPACER,INLET SHAFT
5431482
$24.79
17
WASHER(10)
7555806
$1.49
18
WASHER, SPRING(10)
7571626
Unavailable
19
BOLT(10)
7515502
$5.59
20
BELT DRIVE(5)
3211042
$109.99
21
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
22
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
23
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
24
FLANGETTE
5222751
$16.44
25
BEARING,DRIVESHAFT
3514518
$64.99
26
BUSHING METAL SPEEDO
3280019
$11.99
27
RING, RETAINING(10)
7710422
$3.99
28
BOLT(10)
7512331
$3.99
29
DRIVESHAFT ASM.(W'TRAK) (Incl. 32-36)
1590227
Unavailable
30
SPROCKET, 9T, LH
5431181
Unavailable
31
SPROCKET, 9T
5431131
Unavailable
32
SPROCKET,9T,RH
5431379
Unavailable
33
SHAFT,DRIVE,(W'TRAK)
6230064
Unavailable
34
BOLT(10)
7515474
$3.33
35
SPACER,(10) (.080)
5210760
Unavailable
35
SPACER,(10) (.063)
5210759
Unavailable
35
SPACER,(10) (.020)
5210764
Unavailable
35
SHIM,.010,GEARCASE (.010)
5211065
Unavailable
36
NUT(10)
7542423
$3.99
