COOLING SYSTEM WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164C006)

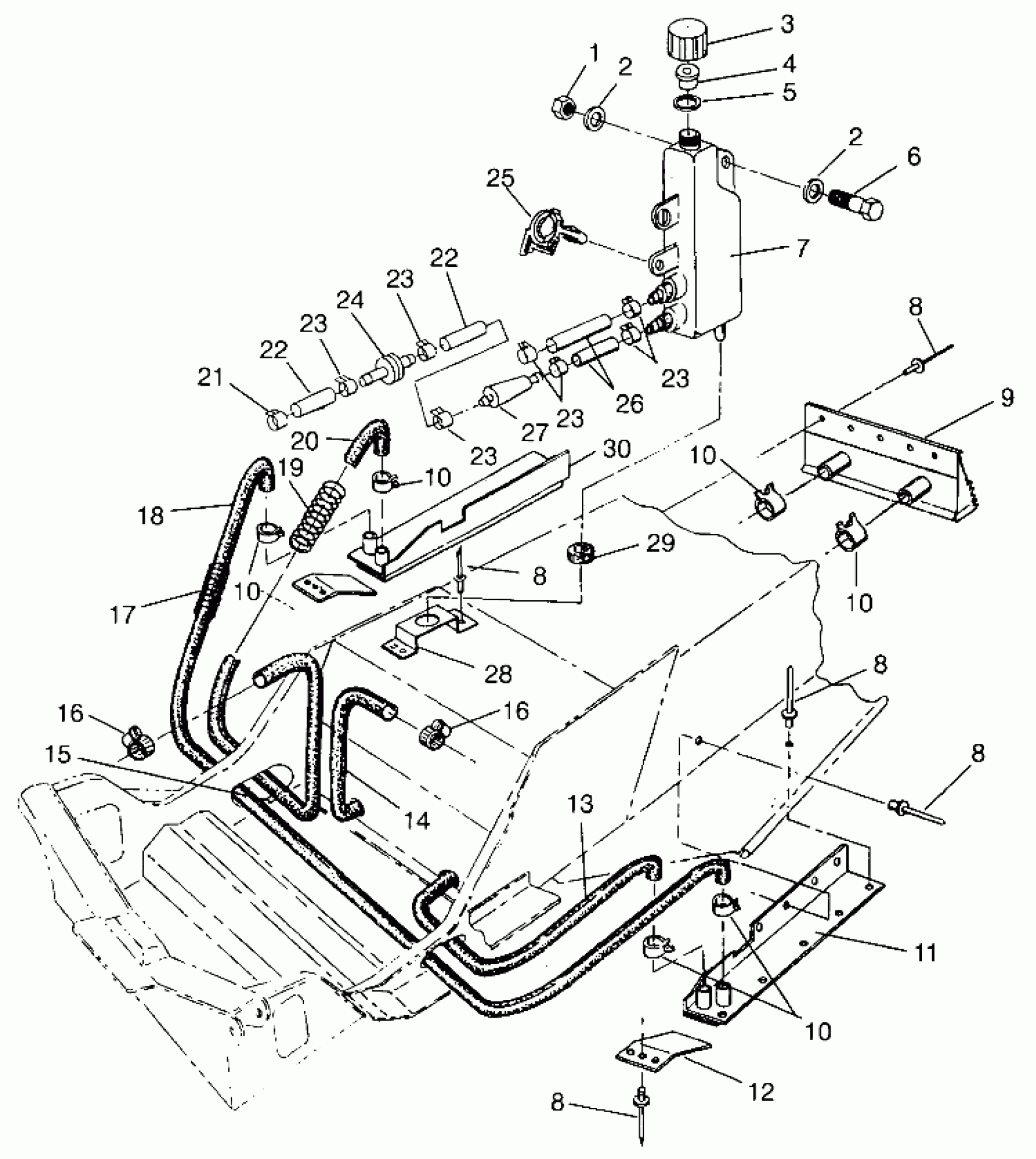

Polaris WIDETRAK LX - 0962064 COOLING SYSTEM WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164C006) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXT,CTR.COOLING
2511187
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
12
GUARD,COOL.EXT.
5240555
$11.59
13
HOSE,CROSSOVER,SHORT (Short)
5410558
$19.68
14
HOSE
5410398
Unavailable
15
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
16
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
16
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
17
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
18
HOSE,CROSSOVER
5410557
Unavailable
19
SPRING,HOSE RETAINER
7041079
$4.95
20
HOSE,PUMP INLET
5410559
Unavailable
21
CLAMP-HOSE(10)
7080134
Unavailable
22
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
22
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
24
VALVE, CHECK
7052038
$10.51
25
CLIP, PLASTIC(10)
4020139
$4.79
26
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
27
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
28
BRACKET
5223985
Unavailable
29
GROMMET RUBBER
5410021
Unavailable
30
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
