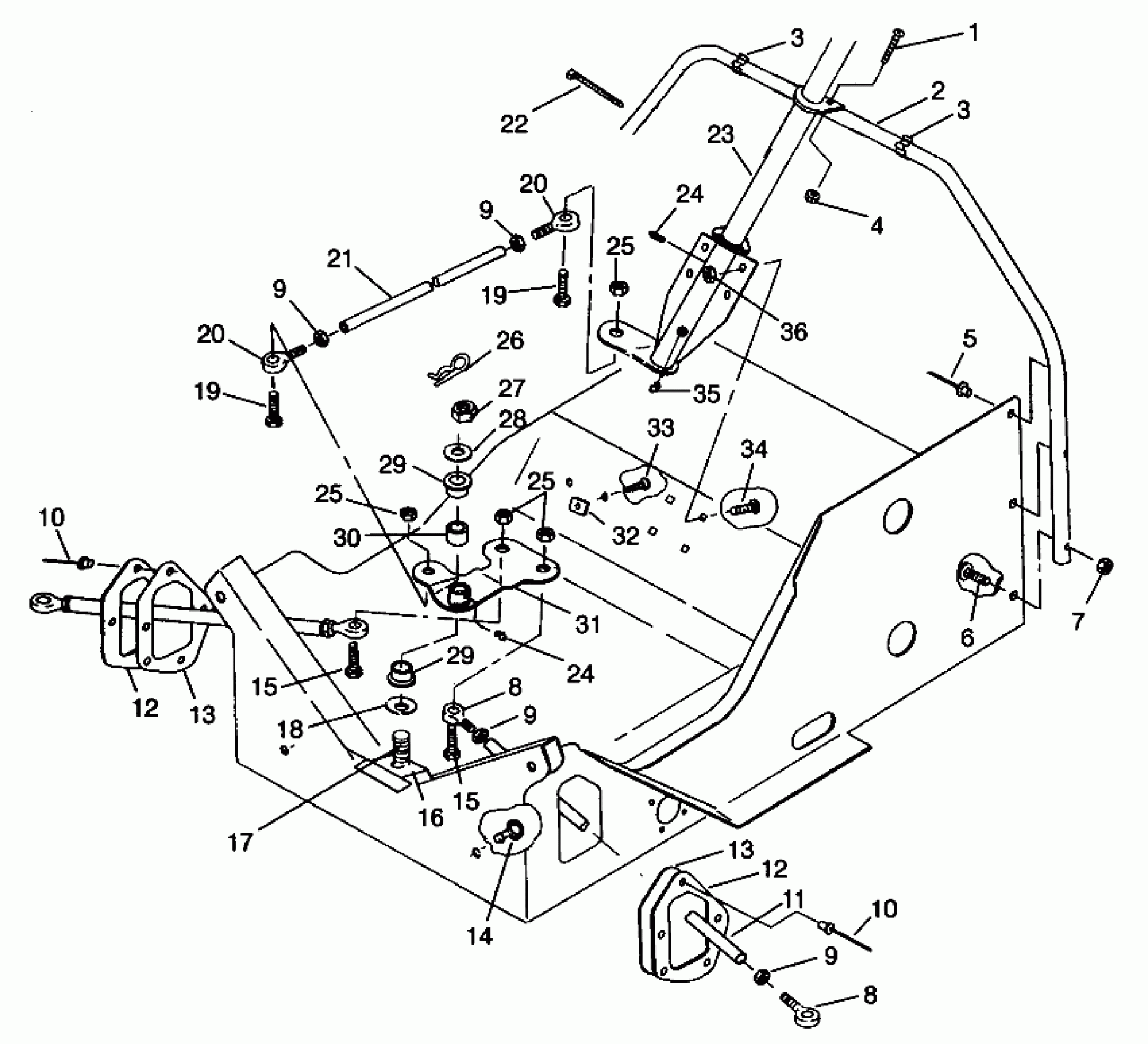

Polaris WIDETRAK GT - 0962061 STEERING WIDETRAK GT 0962061 and EUROPEAN WIDETRAK GT E962061 (4931623162B003) Diagram

#

Description
Price

1

Screw (See Pg. Ref.)

-------

Unavailable

2

HOOP,STEERING,BLK.

1011819-067

Unavailable

3

CLIP(10)

7080278

$2.63

3

CLIP(10)

7080278

$2.63

4

Nut, Nylok (See Pg. Ref.)

-------

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

BOLT-CARRIAGE(10)

7512275

$3.99

7

NUT-LOCK(10)

7542122

$1.49

8

ROD END, RH.

7060165

$48.56

8

ROD END, LH.

7060164

$48.56

8

ROD END, RH.

7060165

$48.56

8

ROD END, LH.

7060164

$48.56

9

NUT HEX(10)

7542401

$2.39

9

NUT

7542424

$1.49

9

NUT HEX(10)

7542401

$2.39

9

NUT

7542424

$1.49

9

NUT HEX(10)

7542401

$2.39

9

NUT

7542424

$1.49

9

NUT HEX(10)

7542401

$2.39

9

NUT

7542424

$1.49

10

POP RIVET(50)

7621323

$1.49

10

POP RIVET(50)

7621323

$1.49

11

ROD,TIE,BLACK

5332713-067

Unavailable

12

PLATE,BOOTSEAL,BLK.

5222942-067

$9.70

12

PLATE,BOOTSEAL,BLK.

5222942-067

$9.70

13

BOOT,TIEROD

5410761

$12.94

13

BOOT,TIEROD

5410761

$12.94

14

CLIP, PLASTIC(10)

4020139

$4.79

15

BOLT(10)

7515528

$8.79

15

BOLT(10)

7515528

$8.79

16

BLOCK,STRG,(CAST)

5630563

$32.37

17

BOLT(10)

7512682

Unavailable

18

WASHER,WAVE(10)

7555735

$3.99

19

BOLT(10)

7512404

$3.99

19

BOLT(10)

7512404

$3.99

20

ROD END,LH

7060166

$48.56

20

ROD END,RH

7060167

$48.56

20

ROD END,LH

7060166

$48.56

20

ROD END,RH

7060167

$48.56

21

ROD,DRAG LINK

5333372

Unavailable

22

STRAP, BLK

7080272

Unavailable

23

Weld., Steering Post (See Pg. Ref.)

-------

Unavailable

24

FITTING,LUB/VEN(10)

7080561

$4.79

24

FITTING,LUB/VEN(10)

7080561

$4.79

25

NUT LOCK(10)

7542403

$3.99

25

NUT LOCK(10)

7542403

$3.99

25

NUT LOCK(10)

7542403

$3.99

26

PIN COTTER(10)

7661203

$1.49

27

NUT FLEX,(10)

7542703

Unavailable

28

WASHER(10)

7555721

$1.49

29

BUSHING

3563907

$3.99

29

BUSHING

3563907

$3.99

30

BUSHING

5010322

Unavailable

31

STRG.ASM,CTR. (Incl. 29)

1822217

$56.65

32

SPEED NUT(10)

7670021

$6.99

33

BOLT-CARRIAGE(10)

7512263

$3.99

34

BOLT(10) Substituted by 7512377

7512394

Unavailable

35

FITTING,LUB/VEN(10)

7080561

$4.79

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49
