ENGINE MOUNTING WIDETRAK GT 0962061 and EUROPEAN WIDETRAK GT E962061 (4931623162C003)

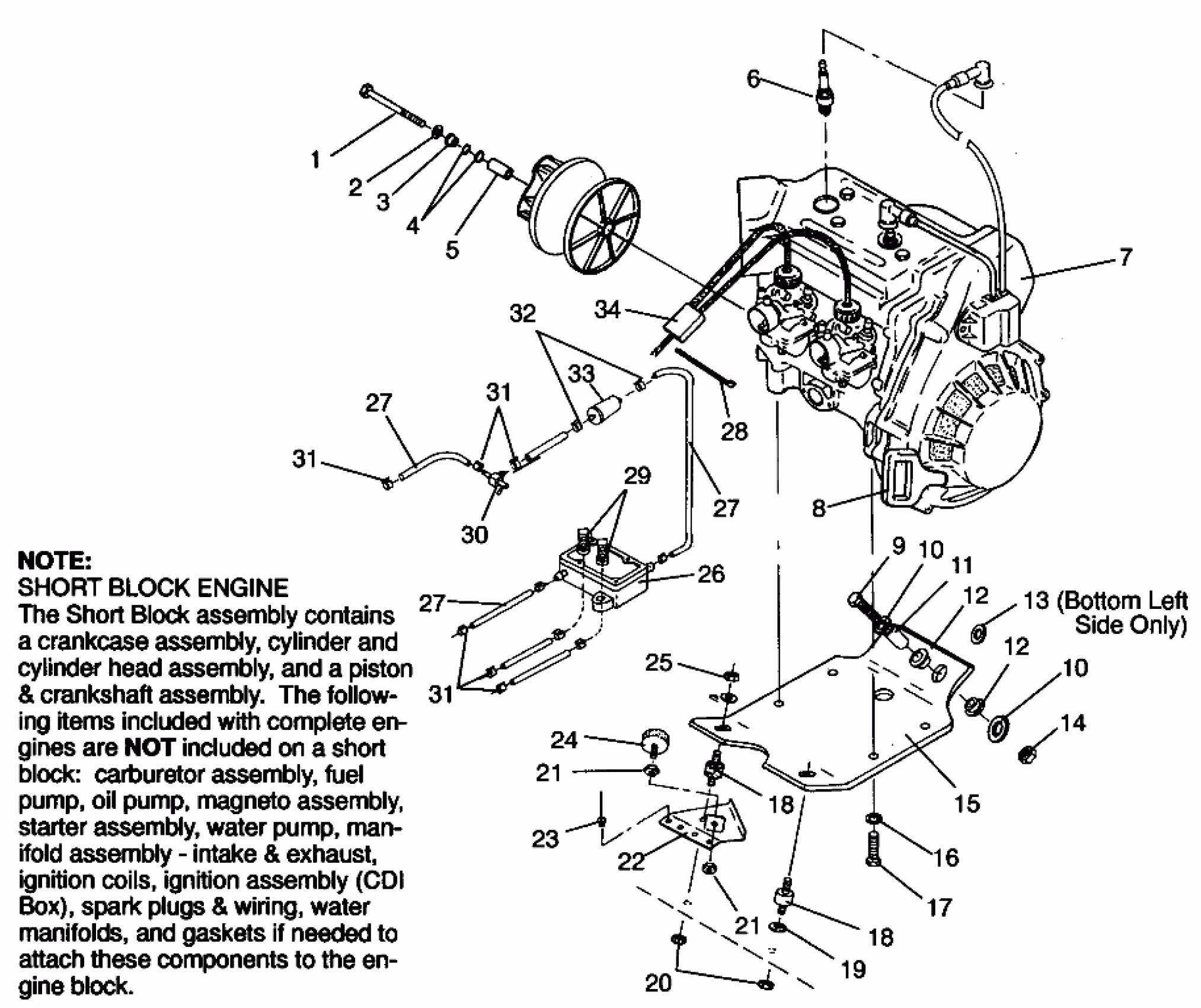

Polaris WIDETRAK GT - 0962061 ENGINE MOUNTING WIDETRAK GT 0962061 and EUROPEAN WIDETRAK GT E962061 (4931623162C003) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG (10)
3070156
$3.99
7
ENG.(S.B.)EC50PM-03 [No Longer Available]
3084618
Unavailable
8
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555740
$1.59
11
TUBE,SPACER
5333354
Unavailable
12
MOUNT, ENGINE
5410390
Unavailable
12
MOUNT, ENGINE
5410390
Unavailable
13
WASHER(10) (Bottom Left Side Only)
7555929
Unavailable
14
NUT,FLANGE(10)
7542522
$5.59
15
PLATE,MOTOR MT.
5240263
Unavailable
16
WASHER LOCK(10)
7553101
$3.99
17
BOLT(10)
7512539
$3.99
18
MOUNT
3110022
Unavailable
18
MOUNT
3110022
Unavailable
19
WASHER(10)
7555721
$1.49
20
NUT LOCK(10)
7542411
$3.19
21
NUT, JAM(10)
7542432
$3.99
21
NUT, JAM(10)
7542432
$3.99
22
LIMITER,TORQUE,BLK.
1012048-067
$38.71
23
RIVET-3/16-.090-.290
7661637
$1.49
24
STOP
3110023
Unavailable
25
NUT-LOCK(10)
7542439
$1.49
26
Fuel Pump (See Pg., Ref.)
-------
Unavailable
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
29
NUT-LOCK(10)
7542122
$1.49
30
VALVE,FUEL SHUT-OFF
7052060
Unavailable
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
32
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
33
FILTER FUEL,(10)
2530008
$4.84
34
CABLE,THROTTLE,W/OIL
7080554
$64.75
