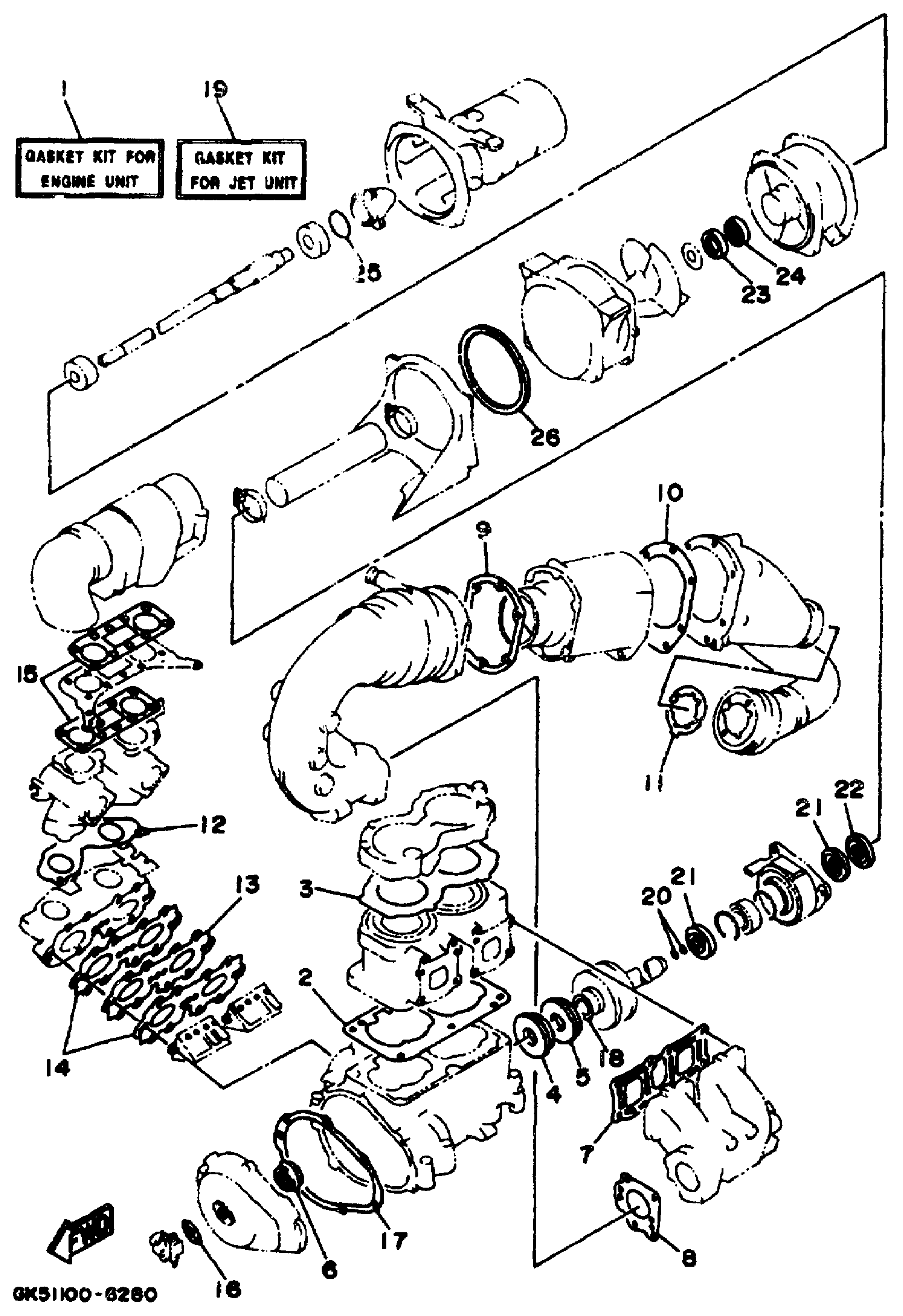

Yamaha WB760V (WAVE BLASTER II) 1997 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

64X-W0001-00-00

Unavailable

2

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

3

GASKET, CYLINDER HEAD

64X-11181-00-00

$80.58

4

. OIL SEAL

93102-36M33-00

$15.95

5

. OIL SEAL

93101-36M46-00

$13.29

6

. OIL SEAL

93103-32M01-00

$15.19

7

GASKET, EXHAUST PIPE

62T-14613-01-00

$20.89

8

. GASKET, MUFFLER DAMPER 2

64X-14749-00-00

Unavailable

9

GASKET, EXHAUST OUTER COVER

62T-41114-01-00

$16.99

10

GASKET, EXHAUST OUTER COVER

64X-41124-01-00

Unavailable

11

. GASKET, EXHAUST PIPE

64X-14623-00-00

$5.37

12

. GASKET, MANIFOLD

64X-13556-00-00

$12.15

13

. PLATE,REED VALVE

62T-13624-00-00

$19.39

14

. GASKET

62T-13566-00-00

$9.11

15

. GASKET, AIR COOLER COVER 1

64X-13674-00-00

$4.93

16

. GASKET, PUMP CASE

6R8-13116-A0-00

$3.03

17

. GASKET, HOLE COVER

6M6-81365-A0-00

$35.88

18

SEAL

62T-45127-01-00

Unavailable

19

GASKET KIT FOR JET UNIT

64Y-W0001-20-00

Unavailable

20

O-RING(6R7)

93210-17MA4-00

Unavailable

21

OIL SEAL(62T)

93101-25M55-00

Unavailable

22

OIL SEAL

93101-24001-00

Unavailable

23

OIL SEAL(6R7)

93102-25M34-00

Unavailable

24

OIL SEAL(6R7)

93101-25M50-00

Unavailable

25

. O-RING

93210-46M16-00

$7.59

26

. PACKING

64Y-51117-00-00

Unavailable
