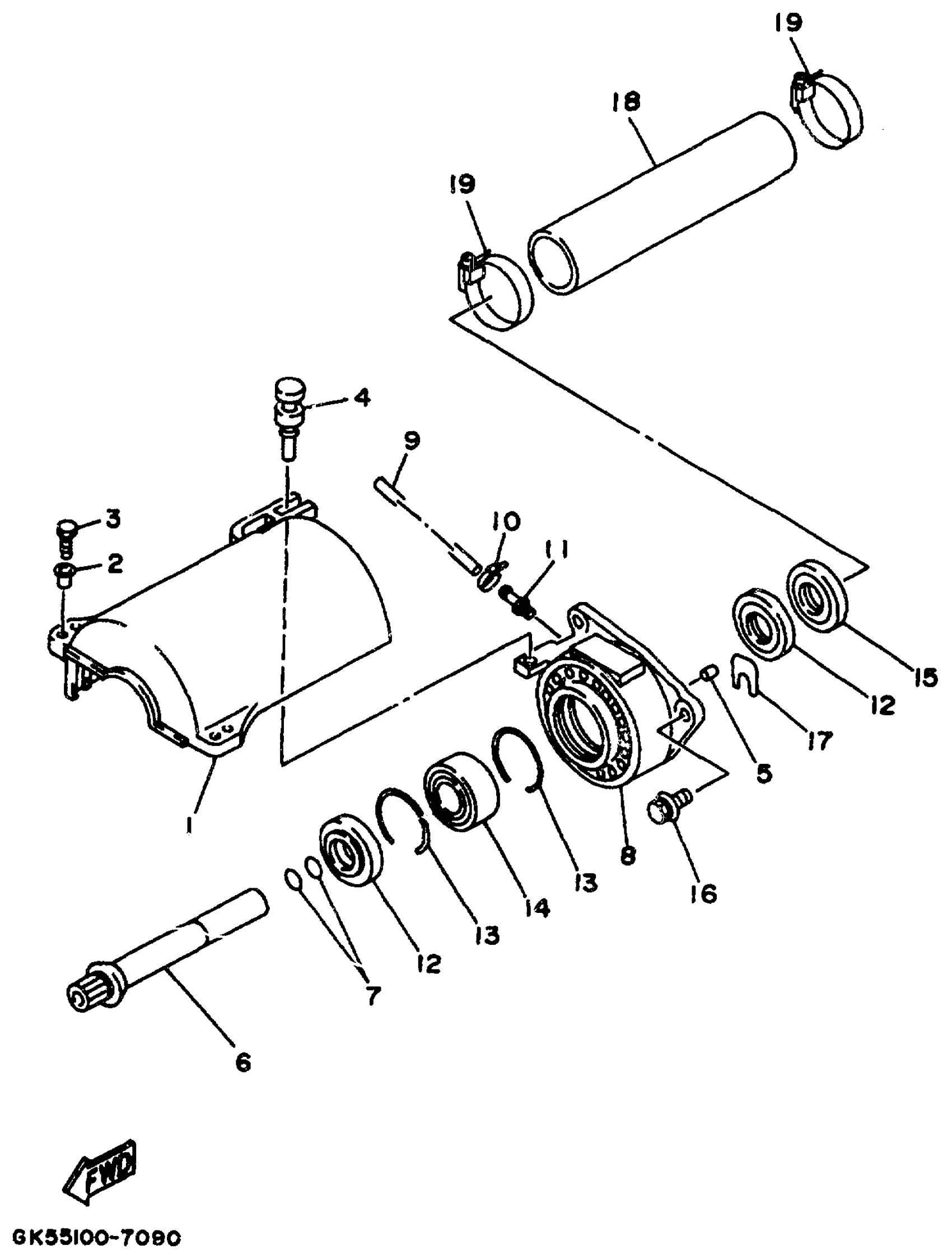

Find the part on the Jet Unit 2 diagram for your 1997 Yamaha Wave Blaster Ii (WB760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Blaster Ii (WB760V) Jet Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

64Y-51381-00-00

1
Out of stock

2

COLLAR

90387-06M60-00

1

$8.99

In stock

3

1

$0.94

In stock

4

GROMMET(6R7)

90480-06M46-00

1

$9.97

In stock

5

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

6

SHAFT, COUPLER

64Y-51323-00-00

1
Out of stock

7

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

8

HOUSING, BEARING

61X-G5332-00-00

1

$134.54

In stock

9

HOSE (L445)

90445-09M21-00

1

$22.46

In stock

10

CLAMP

90465-10098-00

1

$2.24

In stock

11

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

12

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

13

CIRCLIP

93430-47M04-00

1

$5.53

In stock

14

BEARING

93305-205U0-00

1
Out of stock

15

OIL SEAL

93101-24001-00

1

$31.99

In stock

16

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

17

SHIM (T=0.5)

GD0-67249-A0-00

1

$4.45

In stock

17

SHIM (T=1.0)

GD0-67249-00-10

1
Out of stock

18

PIPE, 1

GK5-6883B-00-00

1
Out of stock

19

BAND, HOSE 52

90601-15272-00

1
Out of stock
