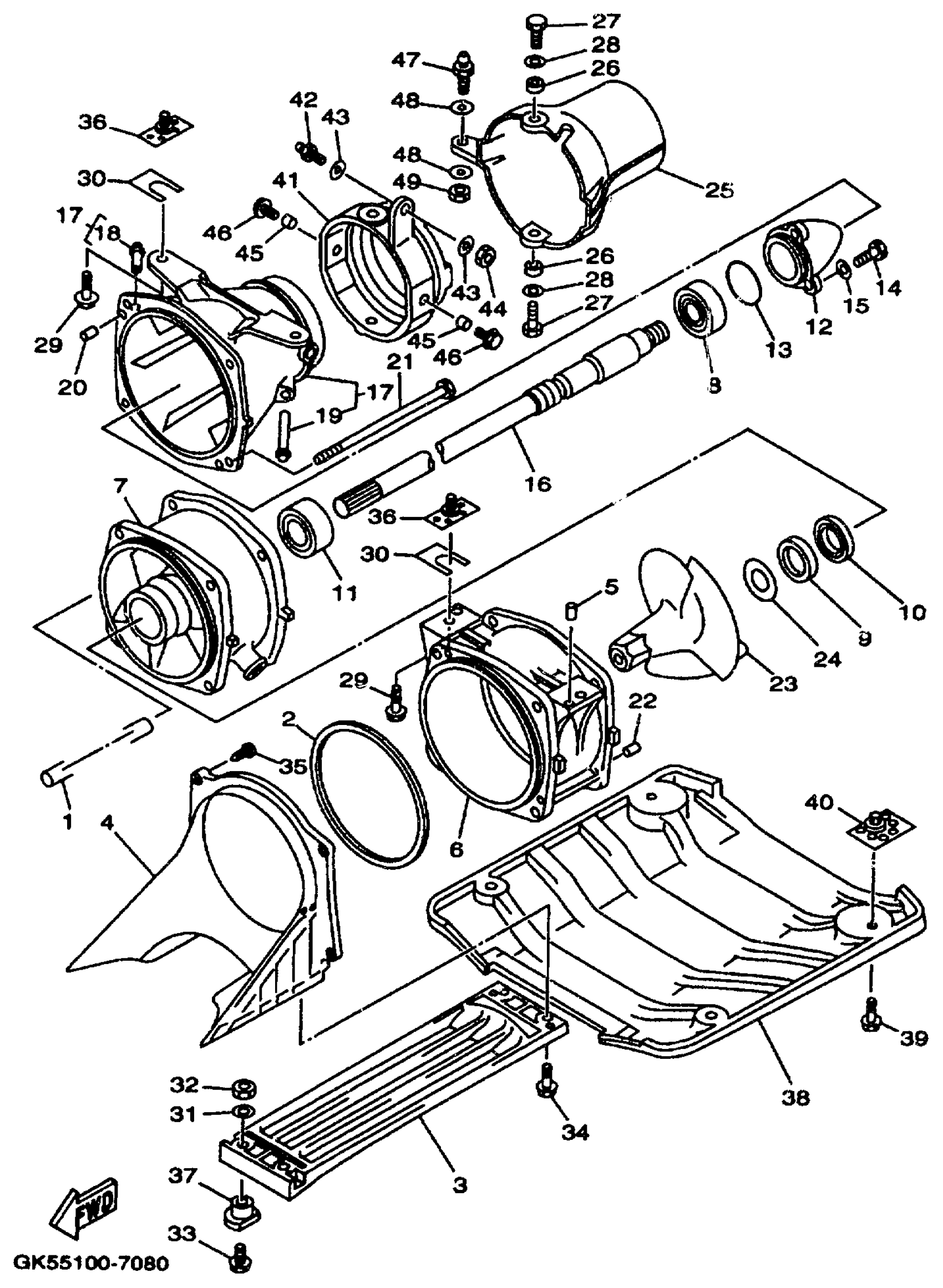

Yamaha WB760V (WAVE BLASTER II) 1997 JET UNIT 1 Diagram

#

Description
Price

1

HOSE (L108)

90445-18M03-00

$15.36

2

. PACKING

64Y-51117-00-00

Unavailable

3

SCREEN, INTAKE

6R7-51333-00-00

$95.44

4

DUCT, INTAKE

64Y-51311-00-00

Unavailable

5

PIN, DOWEL(61L)

93606-09M19-00

$2.62

6

HOUSING, IMPELLER

64Y-51312-01-94

Unavailable

7

DUCT, IMPELLER

63M-51315-02-00

Unavailable

8

BEARING (6K8)

93306-205U1-00

$19.73

9

OIL SEAL(6R7)

93102-25M34-00

$13.70

10

OIL SEAL(6R7)

93101-25M50-00

Unavailable

11

BEARING

93305-205U1-00

$104.53

12

CAP

62T-51326-00-00

$71.20

13

. O-RING

93210-46M16-00

$7.15

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

SHAFT, DRIVE

64Y-45511-00-00

Unavailable

17

NOZZLE

64T-51318-01-94

$165.14

18

. NIPPLE

6K8-51129-00-00

$9.62

19

. NIPPLE,HOSE

63M-51334-00-00

$21.95

20

PIN, DOWEL (614)

93606-12019-00

Unavailable

21

BOLT, WASHER BASED

90105-08M74-00

$36.99

22

PIN, DOWEL (614)

93606-12019-00

Unavailable

23

IMPELLER

64Y-51321-A0-00

Unavailable

24

SPACER

62T-51348-00-00

$52.82

25

NOZZLE, DEFLECTOR

64Y-51313-00-00

Unavailable

26

COLLAR(6R7)

90387-08M06-00

Unavailable

27

BOLT, HEXAGON

97095-08020-00

Unavailable

28

.. WASHER, PLATE

92990-08600-00

$2.17

29

BOLT, WITH WASHER

90119-10949-00

Unavailable

30

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

30

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

30

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

30

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

31

WASHER, PLATE

92990-10600-00

$2.57

32

NUT(624)

95380-10600-00

Unavailable

33

BOLT, WITH WASHER

90119-06901-00

Unavailable

34

BOLT, WITH WASHER

90119-06908-00

$2.57

35

SCREW, TAPPING

97780-60520-00

$4.09

36

NUT

90179-10972-00

Unavailable

37

NUT, T

90180-06900-00

Unavailable

38

PLATE, 2

GA7-6273B-00-00

Unavailable

39

BOLT, WITH WASHER

90119-08904-00

$3.18

40

NUT

90179-08971-00

Unavailable

41

RING,TRIM

64Y-51190-00-94

$118.17

42

. BOLT, JOINT

6R7-42316-00-00

$34.49

43

WASHER, PLATE

90201-06M31-00

$2.80

44

NUT(650)

95380-06700-00

Unavailable

45

COLLAR

90387-08M08-00

$10.75

46

BOLT(6TD)

97080-08020-00

Unavailable

47

. BOLT, JOINT

6R7-42316-00-00

$34.49

48

WASHER, PLATE

90201-06700-00

Unavailable

49

NUT(650)

95380-06700-00

Unavailable
