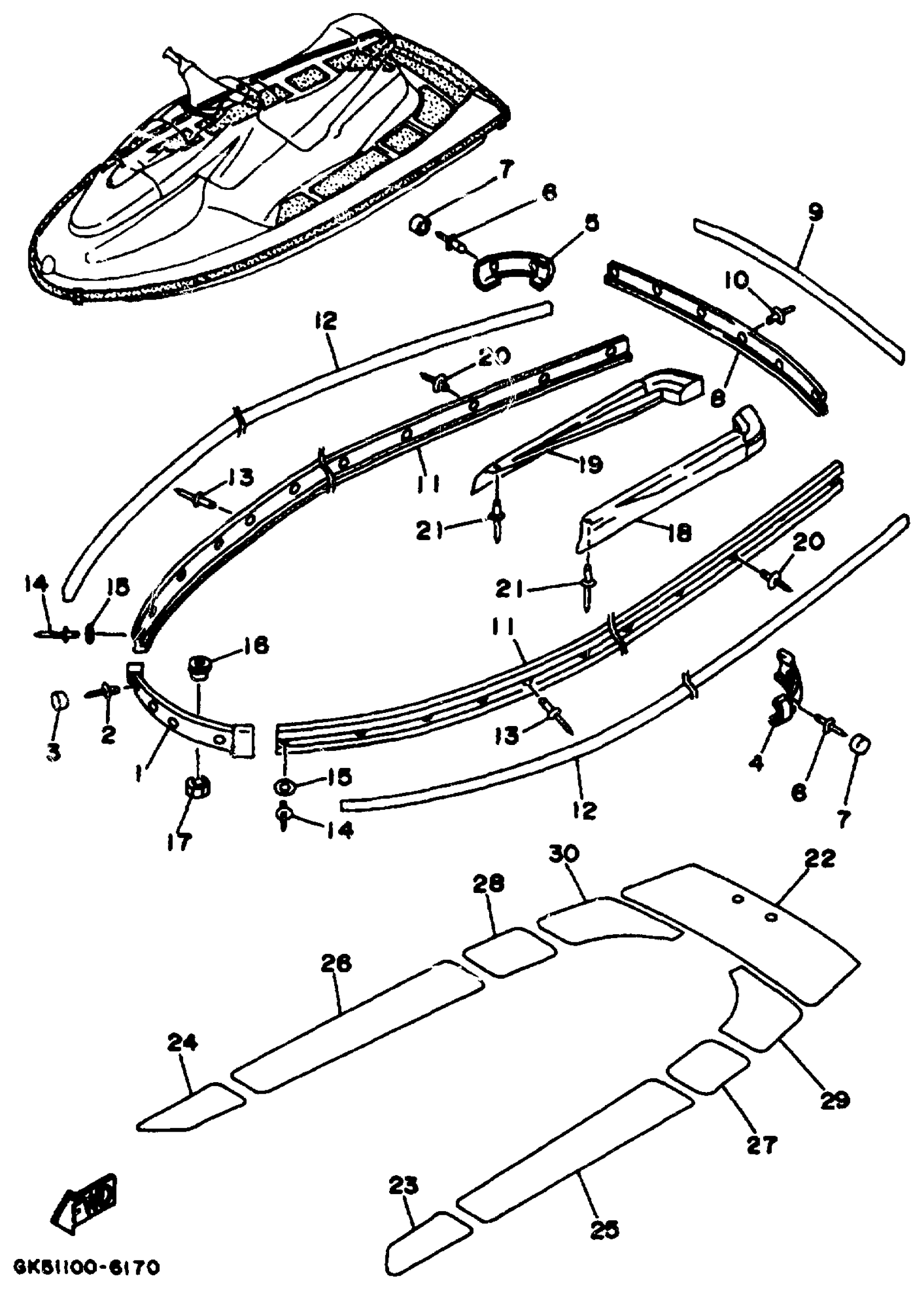

Yamaha WB760V (WAVE BLASTER II) 1997 GUNWALE MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GK5-62501-10-00

Unavailable

2

RIVET, BLIND

90267-48932-00

Unavailable

3

CAP, GUNWALE BOW

GK5-62576-10-00

Unavailable

4

GUNWALE, STERN 1

GK5-6251D-10-00

Unavailable

5

GUNWALE, STERN 2

GK5-6251E-10-00

Unavailable

6

RIVET, BLIND

90267-48911-00

Unavailable

7

CAP, HEAD

GH1-6354D-50-00

Unavailable

8

COVER, GUNWALE 1

GK5-6252C-10-00

Unavailable

9

COVER, GUNWALE 2

GK5-6252D-10-00

Unavailable

10

RIVET, BLIND

90267-48932-00

Unavailable

11

GUNWALE, SIDE 1

GK5-62552-10-00

Unavailable

12

GUNWALE, SIDE 2

GK5-62553-10-00

Unavailable

13

RIVET, BLIND

90267-48932-00

Unavailable

14

RIVET, BLIND

90267-48909-00

Unavailable

15

. WASHER, PLAIN

92990-05200-00

Unavailable

16

ROPE HOLE

FN8-61651-01-00

Unavailable

17

NUT

EU0-61652-00-00

Unavailable

18

CORE, GUNWALE 1

GK5-62535-20-00

Unavailable

19

CORE, GUNWALE 2

GK5-62536-20-00

Unavailable

20

RIVET, BLIND

90267-48007-00

Unavailable

21

RIVET, BLIND

90267-48956-00

Unavailable

22

MAT, UPPER

GK5-63581-10-00

Unavailable

23

MAT, STEP 1

GK5-6351H-10-00

Unavailable

24

MAT, STEP 2

GK5-6351J-10-00

Unavailable

25

MAT, STEP 3

GK5-6351K-10-00

Unavailable

26

MAT, STEP 4

GK5-6351M-10-00

Unavailable

27

MAT, STEP 5

GK5-6351N-10-00

Unavailable

28

MAT, STEP 6

GK5-6351P-10-00

Unavailable

29

MAT, STEP 7

GK5-6351R-10-00

Unavailable

30

MAT, STEP 8

GK5-6351S-10-00

Unavailable
